SERVICE MANUAL

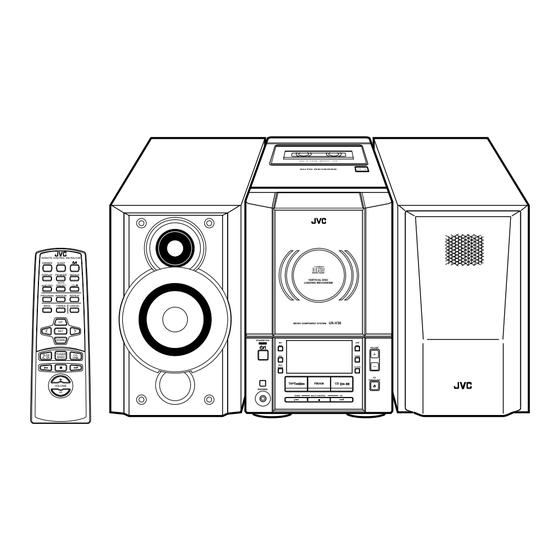

MICRO COMPONENT SYSTEM
UX-V10
UX-V20R
UX-V30R
UX-V330R
Supplement
Since there are some mistakes in the service manual for the UX-V10/UX-V20R/
UX-V30R/UX-V330R (No.20813) model, this supplement is issued to correct
the following points.
1.Circuit diagram of the cassette section:
Since there is some error in the circuit diagram of the cassette section in
the previously issued service manual,replace it with the new circuit diagram
appearing in this supplement.
2.Parts list of the tuner section:
Add the parts list of the tuner section appearing in this supplement to
the previously issued service manual which is lacking in this list.
This service manual is made from 100% recycled paper.
COPYRIGHT
2000 VICTOR COMPANY OF JAPAN, LTD.
UX-V10/UX-V20R/UX-V30R/UX-V330R
Area Suffix
B
UK
Conttiontal Europe
E
Saudi Arabia
EN
EE
Russia
No.20813C
Aug. 2000
(Tuner board)
Electrical parts list
Block No. 06
Item
Parts number
Parts name
Remarks
Area
C 1
NCB21HK-223X
C CAPACITOR
C 2
NCB21HK-103X
C CAPACITOR
C 3
EETC1CM-106ZJC
E.CAPACITOR
C 4
NCB21HK-103X
C CAPACITOR
C 6
NCB21HK-102X
C CAPACITOR
C 7
NCB21HK-102X
C CAPACITOR
C 8
NCB21HK-102X
C CAPACITOR
C 9
NCB21HK-102X
C CAPACITOR
C 10
NCS21HJ-120X
C CAPACITOR
C 11
NCB21HK-104X
C CAPACITOR
C 12
NCB21HK-473X
C CAPACITOR
C 13
NCS21HJ-120X
C CAPACITOR
C 14
QEKC1AM-107Z
E.CAPACITOR
100MF 20% 10V
C 15
NCS21HJ-120X
C CAPACITOR
C 16
NCS21HJ-120X
C CAPACITOR
C 17
NCB21HK-392X
C CAPACITOR
C 18
QEQ61HM-474Z
.47MF 20% 50V
C 19
NCB21HK-473X
C CAPACITOR
C 20
NCB21HK-102X
C CAPACITOR
C 21
NCB21HK-223X
C CAPACITOR
C 22
NCS21HJ-151X
C CAPACITOR
C 23
NCS21HJ-151X
C CAPACITOR
C 24
NCS21HJ-151X
C CAPACITOR
C 25
QEKC1AM-107Z
E.CAPACITOR
100MF 20% 10V
C 26
NCB21HK-103X
C CAPACITOR
C 27
NCB21HK-103X
C CAPACITOR
C 30
EETC1CM-107ZJC
E CAPACITOR
C 31
QEKC1CM-226Z
E CAPACITOR
22MF 20% 16V
C 32
NCB21HK-473X
C CAPACITOR
C 33
NCB21HK-473X
C CAPACITOR
C 34
NCB21HK-223X
C CAPACITOR
C 35
NCB21HK-473X
C CAPACITOR
C 36
EETC1HM-105ZJC
E.CAPA. I.M
C 37
EETC1HM-105ZJC
E.CAPA. I.M
C 38
EETC1HM-224ZJC
E.CAPA. I.M
C 39
EETC1HM-105ZJC
E.CAPA. I.M
C 40
QETN1CM-106Z
E CAPACITOR
10MF 20% 16V
C 41
QETN1CM-106Z
E CAPACITOR
10MF 20% 16V
C 42
NCB21HK-182X
C CAPACITOR
C 43
NCB21HK-182X
C CAPACITOR
C 44
QETN1CM-106Z
E CAPACITOR
10MF 20% 16V
C 45
QETN1CM-106Z
E CAPACITOR
10MF 20% 16V
C 46
NCB21HK-223X
C CAPACITOR
C 47
EETC1HM-105ZJC
E.CAPA. I.M
C 48
NCB21HK-222X
C CAPACITOR
C 49
NCS21HJ-471X
C CAPACITOR
C 50
QEKC1CM-226Z
E CAPACITOR
22MF 20% 16V
C 51
QEKC1HM-105Z
E.CAPACITOR
1.0MF 20% 50V
C 52
QFVJ1HJ-274Z
CAPACITOR
.27MF 5% 50V
C 53
EETC1CM-226ZJC
E.CAPA. I.M
C 54
NCB21HK-473X
C CAPACITOR
C 55
NCS21HJ-330X
C CAPACITOR
C 56
NCS21HJ-100X
C CAPACITOR
C 57
NCB21HK-102X
C CAPACITOR
C 58
NCB21HK-473X
C CAPACITOR
C 59
NCB21HK-102X
C CAPACITOR
C 70
NCS21HJ-220X
C CAPACITOR
V20R/V30R/V330R
C 71
NCS21HJ-220X
C CAPACITOR
V20R/V30R/V330R
C 72
NCB21HK-561X
C CAPACITOR
V20R/V30R/V330R
C 73
NCB21HK-104X
C CAPACITOR
C CAPACITOR
C 74
NCB21HK-104X
C CAPACITOR
C 75
EETC1HM-106ZJC
E.CAPA. I.M
C 76
NCB21HK-331X
C.CAPA. C.M
VICTOR COMPANY OF JAPAN, LIMITED
AUDIO & COMMUNICATION BUSINESS DIVISION
PERSONAL & MOBILE NETWORK B.U 10-1,1Chome,Ohwatari-machi,Maebashi-city,371-8543,Japan
No.20813C
Item
Parts number
Parts name
Remarks
Area
CF 1
QAX0420-001
C FILTER
CF 2
QAX0458-001Z
C FILTER
CF 3
QAX0610-001Z
C DISCRIMINATOR
CN 1
QGF1205F1-13
CONNECTOR
V20R/V30R/V330R
CN 1
QGF1205F1-09
CONN.TERMINAL
V10
D 1
1SS133-T2
SI DIODE
D 2
1SS133-T2
SI DIODE
D 3
1SS133-T2
SI DIODE
D 4
1SS133-T2
SI DIODE
D 11
1SS133-T2
SI DIODE
IC 1
LA1838
IC
IC 2
LC72136N
IC
IC 3
LC72723
IC
J 1
QNB0014-001
ANT TERMINAL
L 1
QQR1094-001
BLOCK COIL
L 2
QQL231K-330Y
INDUCTOR
L 3
QQL231K-4R7Y
INDUCTOR
L 70
QQL231K-101Y
INDUCTOR
Q 1
2SC2814/4-5/-X
TRANSISTOR
Q 2
2SC2412K/R/-X
TRANSISTOR
Q 3
2SC2412K/R/-X
TRANSISTOR
Q 4
DTA114YKA-X
TRANSISTOR
Q 5
DTA114YKA-X
TRANSISTOR
R 2
NRSA02J-331X
MG RESISTOR
R 3
NRSA02J-224X
MG RESISTOR
R 4
NRSA02J-331X
MG RESISTOR
R 5
NRSA02J-560X
MG RESISTOR
R 6
NRSA02J-120X
MG RESISTOR
R 10
NRSA02J-222X
MG RESISTOR
R 11
NRSA02J-472X
MG RESISTOR
R 12
NRSA02J-472X
MG RESISTOR
R 13
NRSA02J-103X
MG RESISTOR
R 14
NRSA02J-104X
MG RESISTOR
R 15
NRSA02J-332X
MG RESISTOR
R 16
NRSA02J-472X
MG RESISTOR
R 17
QRZ9005-680X
F.RES I/M
68 1/0W
R 18
NRSA02J-102X
MG RESISTOR
R 19
NRSA02J-102X
MG RESISTOR
R 20
NRSA02J-102X
MG RESISTOR
R 21
NRSA02J-562X
MG RESISTOR
R 22
NRSA02J-472X
MG RESISTOR
R 23
NRSA02J-182X
MG RESISTOR
R 24
NRSA02J-103X
MG RESISTOR
R 25
NRSA02J-331X
MG RESISTOR
R 26
NRSA02J-222X
MG RESISTOR
R 27
NRSA02J-103X
MG RESISTOR
R 28
NRSA02J-103X
MG RESISTOR
R 29
NRSA02J-103X
MG RESISTOR
R 30
NRSA02J-122X
MG RESISTOR
R 31
NRSA02J-102X
MG RESISTOR
R 32
NRSA02J-102X
MG RESISTOR
R 33
NRSA02J-331X
MG RESISTOR
R 34
NRSA02J-470X
MG RESISTOR
R 35
NRSA02J-562X
MG RESISTOR
R 36
NRSA02J-332X
MG RESISTOR
R 37
NRSA02J-103X
MG RESISTOR
R 38
NRSA02J-393X
MG RESISTOR
R 39
NRSA02J-393X
MG RESISTOR
R 40
NRSA02J-393X
MG RESISTOR
R 41
NRSA02J-332X
MG RESISTOR
R 60
NRSA02J-0R0X
MG RESISTOR
R 70
NRSA02J-103X
MG RESISTOR
V20R/V30R/V330R
R 71
NRSA02J-102X
MG RESISTOR
V20R/V30R/V330R
(Tuner board)
Electrical parts list
Block No. 06
Item
Remarks
Parts number
Parts name
Area
R 72
NRSA02J-102X
MG RESISTOR
V20R/V30R/V330R
R 73
NRSA02J-102X
MG RESISTOR
V20R/V30R/V330R
T 1
QQR0793-001
IFT
TU 1
QAU0160-001
FRONT END
X 1
QAX0402-001
CRYSTAL
X 70
QAX0263-001Z
CRYSTAL
Printed in Japan
2000 08(O)

Advertisement

loading
Need help?

Need help?

Do you have a question about the UX-V20R and is the answer not in the manual?

Questions and answers

Summary of Contents for JVC UX-V20R

  • Page 1 MG RESISTOR C 44 QETN1CM-106Z E CAPACITOR 10MF 20% 16V R 22 NRSA02J-472X MG RESISTOR Since there are some mistakes in the service manual for the UX-V10/UX-V20R/ C 45 QETN1CM-106Z E CAPACITOR 10MF 20% 16V R 23 NRSA02J-182X MG RESISTOR UX-V30R/UX-V330R (No.20813) model, this supplement is issued to correct...
  • Page 2 UX-V10/UX-V20R/UX-V30R/UX-V330R Cassette SG-10SF3 SG-10SF3 FA1A4ZX FA1A4ZX Q102 Q102 1SR139-100T 1SR139-100T 0.033 0.033 C104 C104 R108 R108 5.6K 5.6K R104 R104 1.2K 1.2K MSI-5U2LWA MSI-5U2LWA R102 R102 Q101 Q101 FA1A4ZX FA1A4ZX 1.8K 1.8K IC31 IC31 BA3126N BA3126N R304 R304 C111 C111...
  • Page 3 UX-V30/FS-V30 UX-V30/FS-V30 SERVICE MANUAL MICRO COMPONENT SYSTEM UX-V30/FS-V30 T A PE SELECT T A PE SELECT AUTO REVERSE T APE AUTO REVERSE T APE REMOTE CONTROL RM-RXUV5R REMOTE CONTROL RM-RXFSV5 DIMMER SLEEP DIMMER SLEEP POWER COMPACT COMPACT DIGITAL AUDIO DIGITAL AUDIO DISPLAY FM MODE MD/AUX...
  • Page 4 UX-V30/FS-V30 Safety Precautions 1. This design of this product contains special hardware and many circuits and components specially for safety purposes. For continued protection, no changes should be made to the original design unless authorized in writing by the manufacturer. Replacement parts must be identical to those used in the original circuits.
  • Page 5 UX-V30/FS-V30 Important for laser products 5.CAUTION : If safety switches malfunction, the laser is able 1.CLASS 1 LASER PRODUCT to function. 2.DANGER : Invisible laser radiation when open and inter 6.CAUTION : Use of controls, adjustments or performance of lock failed or defeated. Avoid direct exposure to beam. procedures other than those specified herein may result in 3.CAUTION : There are no serviceable parts inside the hazardous radiation exposure.
  • Page 6 UX-V30/FS-V30 Disassembly method <Main body> Removing the rear cover (See Fig.1 and 2) Remove the eight screws A attaching the rear cover on the back of the body. Remove the two screws B attaching the rear cover on the bottom of the body. Unlock the speaker terminal and the antenna terminal, then remove the rear cover backward with releasing the hooks.
  • Page 7 UX-V30/FS-V30 Removing cassette mechanism Cassette mechanism assembly assembly (See Fig.5 and 6) Joint a Prior to performing the following procedure, remove the rear cover and the side panels. CN304 Disconnect the card wires from connector CN304 and CN305 on the main board on the left side of the CN305 body.
  • Page 8 UX-V30/FS-V30 Heat sink Main board Removing the front panel assembly (See Fig.10 to 12) Prior to performing the following procedure, remove Fig.9 the rear cover, the side panels, the cassette mechanism assembly and the main board. Front panel assembly Disconnect the card wire from connector CN732 on the LCD board.
  • Page 9 UX-V30/FS-V30 Removing the tuner & function board (See Fig.14) Prior to performing the following procedure, remove the rear cover, the side panels and the cassette mechanism assembly. Disconnect the card wire from connector CN1 on the tuner & function board. Remove the screw H attaching the tuner &...
  • Page 10 UX-V30/FS-V30 <Cassette mechanism assembly> Prior to performing the following procedure, remove the rear cover, the side panels and the cassette Cassette door mechanism assembly. Removing the Opt.Dig.out board (See Fig.16) Remove the two screws K attaching the Opt.Dig.out board on the side of the cassette mechanism assembly.
  • Page 11 UX-V30/FS-V30 <Front panel assembly> CD mechanism cover Prior to performing the following procedure, remove (CD mechanism assembly) the rear cover, the side panels, the cassette mechanism assembly, the main board and the front panel assembly. Removing the CD mechanism assembly (See Fig.18 to 21) Belt Disconnect the harness from connector CN721 and...
  • Page 12 UX-V30/FS-V30 CD door switch board Removing the LED board (B) (See Fig.22) CD servo control Prior to performing the following procedure, remove Hook i board the CD mechanism assembly. Remove the screw P attaching the LED board (B). Removing the CD door switch board (See Fig.22) LCD board (A) Release the hook i fixing the CD door switch board...
  • Page 13 UX-V30/FS-V30 <<Cassette Mechanism Section>> Cassette mechanism Removing the Playback/Recording & Eraser Head ( See Figs. 1 and 2 ) 1. While shifting the trigger arms seen on the right side of the head mount in the arrow direction, turn the flywheel R in counterclockwise direction Flywheel R until the head mount has gone out with a click (See Fig.
  • Page 14 UX-V30/FS-V30 Removing the Head amplifier & Mechanism control P.C. board Belt (See Fig. 4) Main motor 1. Remove the cassette mechanism assembly. assembly 2. After turning over th cassette mechanism assembly, remove the three screws "1" retaining the head amplifier & mechanism control P.C. board. 3.
  • Page 15 UX-V30/FS-V30 Removing the Flywheel (See Figs. 7 and 8) Flywheel R Flywheel L 1. Remove the head amplifier & mechanism control P.C. board. 2. Remove the main motor assembly. 3. After turning over the cassette mechanism, remove the slit washers "b" and "c" fixing the capstan shafts R and L, and pull out the flywheel R and L respectively from behind the cassette mechanism.
  • Page 16 UX-V30/FS-V30 Main adjustment Tuner section Measurement Instruments Required for Adjustment B/E/EN version 1. Low frequency oscillator FM Band cover: 87.5 108MHz This oscillator should have a capacity to output MW Band cover: 522 1,629kHz 0dBs to 600 at an oscillation frequency of LW Band cover: 144 288kHz EE version 50Hz-20kHz.
  • Page 17 UX-V30/FS-V30 << >> Arrangement of Adjusting Position Cassette mechanism section Cassette mechanism section (Back side) Head azimuth Head azimuth adjusting screw adjusting screw (Forward side) (Reverse side) Head azimuth Head azimuth Playback/Recording & adjusting screw adjusting screw eraser head (Forward side) (Reverse side) Front panel assembly section MOTOR SPEED...
  • Page 18 UX-V30/FS-V30 Tape Recorder Section Measurement Adjusting Standard Items Measurement method conditions positions Values Adjust the head Confirmation Test tape 1 Playback the test tape VTT703L (8kHz) Maximum azimuth screw of head angle : VTT703L (8kHz) 2 With the recording & playback mechanism, output only when the Measurement output...
  • Page 19 UX-V30/FS-V30 Electrical Performance Adjusting Measurement Standard Items Measurement method positions conditions Values L ch AC-225 Adjustment of Mode: Forward or 1 With the recording and playback : VR101 : 4.20 recording bias reverse mode mechanism, load the test tapes (AC-514 to R ch AC-514 current...
  • Page 20 UX-V30/FS-V30 Flow of functional operation until TOC read Check Point Slider turns REST Power Key Power ON Check that the voltage at the pin17 SW ON. of CN604 is 0V (a moment)? Automatic tuning of TE offset Check that the voltage at the Laser ON pin3 of IC601 + side is + 5V? Detection of disc...
  • Page 21 UX-V30/FS-V30 Maintenance of laser pickup Replacement of laser pickup (1) Cleaning the pick up lens Befor you replace the pick up, please try to Turn off the power switch and,disconnect the clean the lens with a alcohol soaked cotton power cord from the ac outlet. swab.
  • Page 22 UX-V30/FS-V30 Description of major ICs LA6541-X(IC541) : Servo Driver 1. Pin Layout & Block Diagram Vref Vin4 Vin3 Level B T L B T L Level RESET shift driver driver shift Level B T L B T L Level Regulator shift driver driver...
  • Page 23 UX-V30/FS-V30 MN35510 (IC651) : DIGITAL SERVO&DIGITAL SIGNAL PROCESSER 1. Terminal Layout 20 ~ 41 ~ 2.Block Diagram LRCKIN(MSEL) AVSS1 8TIMES BCLK(SSEL) AVDD1 DIGITAL OVER SAMPUNC SRDATAIN OUTR DEEMPHSIS DIGITAL FILTER 1BIT (PSEL) LOGIC IOSEL CLVS BLKCK OUTL CLDCK SBCK SUBC DEMPH RESY FLAG6(RESY)
  • Page 24 UX-V30/FS-V30 3. Description symbol I/O Description symbol I/O Description Tracking error shunt signal output(H:shunt) BCLK Not used LRCK Not used PLAY Not used SRDATA WVEL Not used Not used DVDD1 Power supply (Digital) RF signal input DVSS1 Connected to GND IREF Reference current input pin Digital audio interface output...
  • Page 25 UX-V30/FS-V30 AN8806SB-W(IC301) :RF&SERVO AMP 1.Pin layout 36 PDAC PD 1 LD 2 35 PDBD LDON 3 34 PDF 33 PDE LDP 4 32 PDER VCC 5 31 PDFR RF- 6 30 TBAL RF OUT 7 RF IN 8 29 FBAL C.AGC 9 28 EF- 27 EF OUT...
  • Page 26 UX-V30/FS-V30 3. Pin function Pin No. symbol Function APC amp . Input terminal APC amp . Output terminal LD ON LD ON/OFF control terminal Connect to GND Power supply RF amp . Reversing input terminal RFamp . Output terminal RF OUT RF IN AGC input terminal C.AGC...
  • Page 27 UX-V30/FS-V30 UPD78064GF-108 (IC701): System CPU 1.Pin layout 2.Pin function Symbol Function Symbol Function [RESET/CLOSE] switch USDATA Serial data URESET/CLOSE Abnormal voltage detection 1 USCK Serial clock USAFETY1 Abnormal voltage detection 2 UQRIN CD Q code data USAFETY0 Body key input 1 Non connect UKEY1 Body key input 0...
  • Page 28 UX-V30/FS-V30 LA1838(IC102): FM AM IF AMP&detector, FM MPX Decoder 1. Block Diagram DECODER RF.AMP ANIT-BIRDIE MUTE BUFF STEREO P-DET AM IF PILOT 384KHz COMP S-METER AM/FM S-CLRVE S-METER IF-BUFF TUNING STEREO DRIVE DRIVE FM IF 2. Pin Function Symbol Function Symbol Function FM IN...
  • Page 29 UX-V30/FS-V30 LC72136N (IC121) : PLL Frequency Synthesizer 1. Pin layout FM/AM LPFOUT LPFIN CLOCK FM/ST/VCO FMIN AM/FM AMIN IFCONT SDIN IFIN 2. Block diagram Phase Reference Detector Driver Charge Pump Swallow Counter Swallow Counter 1/16,1/17 4bit 1/16,1/17 4bit Unlock Detector 12bit Programmable DriverS...
  • Page 30 UX-V30/FS-V30 BA15218N (IC342/IC343/IC391/IC453IC362/IC363) : Dual Ope. Amp. OUT1 +IN1 +IN1 GND +IN2 -IN2 OUT2 Vcc BU4094BCF-X(IC304,IC303):Serial to parallel port extension 1.Pin layout 2.Block diagram STROBE DATA OUTPUT ENABLE DATA 8-STAGE CLOCK SERIAL SHIFT REGISTER OUTPUT CLOCK 8-BIT STROBE LATHES 3-STATE OUTPUT OUTPUTS ENABLE...
  • Page 31 UX-V30/FS-V30 GP1U271X (IC701) : Receiver for remote – Limiter Integrator Comparator Amp. Demodulator B.P.F Vout LB1641 (IC501) : DC Motor Driver 1. Pin Layout GND OUT1 P1 IN2 VCC1 VCC2 P2 OUT2 2. Pin Functions Input Output Mode OUT1 OUT2 Brake CLOCKWISE COUNTER-CLOCKWISE...
  • Page 32 UX-V30/FS-V30 AN7345(IC302) PB/REC AMP NF1 OUT1 CTL1 RIN1 RNF1 ROUT1 REPPLE Source CTRL CTRL EQ2 CTL2 OUT2 RIN2 RNF2 ROUT2 2. Pin Function Symbol Function Symbol Function Power supply Playback amplifier input Repple filter Playback amplifier input EQCTL EQ control Playback amplifier negative feedback ROUT Recording amplifier output...
  • Page 33 UX-V30/FS-V30 LC75342 1-31...
  • Page 34 UX-V30/FS-V30 3. Pin function Pin No. symbol Function Serial data input pin for control Chip enable pin Ground TEST TEST pin for electronic volume control LOUT Volume+equalizer output Bas-band filter comprising capacitor and resistor connection LBASS2 LBASS1 Bas-band filter comprising capacitor and resistor connection Capacitor connection pin comprising treble band filter LTRE Volume+equalizer intput...
  • Page 35 UX-V30/FS-V30 LC72723 Pin Assignment Block diagram VREF FLOUT CIN Vdda CLOCK Vddd RECOVERY REFERENCE (57kHz) (1187.5kHz) VOLTAGE Vssa VREF Vssd 57kHz ANTIALIASING DATA SMOOTHING RDDA MPXIN (SCF) FILTER FILTER DECODER RDCL MDDE (128-bits) CLK(4.332MHz) RDS-ID RDS-ID/ TEST TEST DETECT READY XDUT 3.
  • Page 36 UX-V30/FS-V30 <<MEMO>> 1-34...
  • Page 37 UX-V30/FS-V30 UX-V30/FS-V30 VICTOR COMPANY OF JAPAN, LIMITED AUDIO & COMMUNICATION BUSINESS DIVISION PERSONAL & MOBILE NETWORK B.U 10-1,1Chome,Ohwatari-machi,Maebashi-city,371-8543,Japan Printed in Japan 1-35 No.20843 2000 07(O)
  • Page 38 UX-V30/FS-V30 Block diagram...
  • Page 39 UX-V30/FS-V30 UX-V30/FS-V30 Standard schematic diagrams CPU & LCD driver circuit (UX-V30) TUNER SIGNAL...
  • Page 40 UX-V30/FS-V30 CD servo circuit (UX-V30) CD SIGNAL...
  • Page 41 UX-V30/FS-V30 UX-V30/FS-V30 Power amplifier circuit (UX-V30) CD SIGNAL TAPE P. B. SIGNAL TUNER SIGNAL Parts are safety assurance parts. AUX IN SIGNAL When replacing those parts make sure to use the specified one. MAIN SIGNAL...
  • Page 42 UX-V30/FS-V30 Tuner circuit (UX-V30) FM/TUNER MAIN SIGNAL AM SIGNAL...
  • Page 43 UX-V30/FS-V30 UX-V30/FS-V30 Cassette mecha control circuit SG-10SF3 FA1A4ZX Q102 1SR139-100T 0.033 C104 R108 5.6K R104 1.2K MSI-5U2LWA R102 Q101 FA1A4ZX 1.8K IC31 BA3126N R304 C111 R112 2.2K FW31 CN32 0.0012 QGB2011M1-10 VWS304-06A13K R111 R301 IC32 C374 AN7317 R211 100/10 C211 R212 VGH0425-544 2.2K...
  • Page 44 UX-V30/FS-V30 Power supply circuit (FS-V30) Power supply circuit (UX-V30) Parts are safety assurance parts. When replacing those parts make Parts are safety assurance parts. sure to use the specified one. When replacing those parts make sure to use the specified one.
  • Page 45 UX-V30/FS-V30 UX-V30/FS-V30 Printed circuit boards Main board...
  • Page 46 UX-V30/FS-V30 Micon P. C. board...
  • Page 47 UX-V30/FS-V30 UX-V30/FS-V30 CD board 2-10...
  • Page 48 UX-V30/FS-V30 Tuner P. W. B 2-11...
  • Page 49 UX-V30/FS-V30 UX-V30/FS-V30 <<MEMO>> 2-12...
  • Page 50 UX-V30/FS-V30 PARTS LIST [ UX-V30 ] [ FS-V30 ] * All printed circuit boards and its assemblies are not available as service parts. Area suffix UX-V30 A ------------------------- Australia UB -------------------- Hong Kong UP --------------------------- Korea US --------------------- Singapore UT -------------------------- Taiwan UY ---------------------- Argentina Area suffix FS-V30...
  • Page 51 VOLUME BUTTON QYSDSF2608Z SCREW SW.PWB+FR.PANEL GV20044-009A CD DOOR LENS UX-V30 GV20044-013A CD DOOR LENS FS-V30 GV40077-001A JVC BADGE GV30065-001A CD DOOR PLATE L GV30065-002A CD DOOR PLATE R GV30066-001A CD DOOR HOLDER DOOR LEFT GV30066-002A CD DOOR HOLDER DOOR RIGHT...
  • Page 52 UX-V30/FS-V30 Exploded view of general assembly and parts list Block No. Main board...
  • Page 53 UX-V30/FS-V30 UX-V30/FS-V30 (General assembly) (General assembly) Parts list Block No. M1MM Parts list Block No. M1MM Item Parts number Parts name Q'ty Description Area Item Parts number Parts name Q'ty Description Area QUQ412-1320CJ FFC WIRE CD TO FMB QYSBSG3008Z T.SCREW SLC+SIDE BKT.
  • Page 54 UX-V30/FS-V30 Cassette mechanism assembly and parts list Block No. SLC-S1YPM Cassette switch board Head amplifier & mechanism control board...
  • Page 55 UX-V30/FS-V30 (Cassette mechanism) Parts list Block No. M2MM Item Parts number Parts name Q'ty Description Area VKS1165-00G CHASSIS B.ASS'Y VKS2274-002 REEL GEAR VKW5286-002 B.T. SPRING VKS5559-001 PLAY IDLE GEAR VKS5597-00A BUND ASS'Y VKW5296-001 EARTH SPRING VKR4749-003 IDLE PULLEY VKH5786-003 SHAFT VKS2275-00E HEAD MOUNT ASSY VKS1167-003...
  • Page 56 UX-V30/FS-V30 Grease point 1/3 Grease EM-30L EM-30L UD-24 LEN-320M EM-30L EM-30L Fig.1 Fig.2 Fig.2 Fig.1 EM-30L Fig.3 Fig.3 Fig.4 EM-30L EM-30L EM-30L EM-30L Fig.4 (Remove the Head mount Ass'y on the Chasis Base)
  • Page 57 UX-V30/FS-V30 Grease point 2/3 EM-30L EM-30L Fig.1 Fig.5 Fig.5 Fig.1 EM-30L Fig.2 Fig.4 Fig.2 Fig.3 LEN-320M Note: It is a putting up of the control cam to UD-24H(Hanarl) and EM-30L LEN-320M(Grease)dipping on the Control cam Fig.4 Fig.3...
  • Page 58 UX-V30/FS-V30 Grease point 3/3 EM-30L EM-30L EM-30L EM-30L Fig.1 Fig.2 Fig.2 Fig.1 Fig.3 Fig.5 Fig.6 Fig.4 UD-24 Fig.4 UD-24 Fig.3 EM-30L EM-30L Fig.5 Fig.6...
  • Page 59 UX-V30/FS-V30 (Main board) Block No. 01 Electrical parts list Item Parts number Parts name Remarks Area Item Remarks Parts number Parts name Area C 901 QFVF1HJ-104Z TF CAPACITOR .10MF 5% 50V C2510 QETN1EM-475Z E CAPACITOR 4.7MF 20% 25V C 902 QFVF1HJ-104Z TF CAPACITOR .10MF 5% 50V...
  • Page 60 UX-V30/FS-V30 (Main board) Electrical parts list Block No. 01 Item Parts number Parts name Remarks Area Item Parts number Parts name Remarks Area D 904 6A10E2 SI DIODE Q2400 KTC3199/GL/-T TR I/M D 906 1SR35-400A-T5 SI.DIODE Q2500 2SK301/RS/-T TRANSISTOR(FET) D3300 MTZJ4.3B-T2 ZENER DIODE Q2700...
  • Page 61 UX-V30/FS-V30 (Main board) Electrical parts list Block No. 01 Item Parts number Parts name Remarks Area Item Remarks Parts number Parts name Area R1900 QRE141J-473Y C RESISTOR 47K 5% 1/4W R3912 QRE141J-474Y C RESISTOR 470K 5% 1/4W R2100 QRE141J-2R2Y C RESISTOR 2.2 5% 1/4W R3913 QRE141J-124Y...
  • Page 62 UX-V30/FS-V30 Electrical parts list (Micom board & Regurator) Block No. 02 Item Parts number Parts name Remarks Area Item Remarks Parts number Parts name Area CN711 QGB1214K1-14S CONNECTOR TO MAIN PWB D8206 MTZJ10C-T2 ZENER DIODE CN712 QGB1214K1-20S CONNECTOR TO MAIN PWB D8601 1SS133-T2 SI.DIODE...
  • Page 63 UX-V30/FS-V30 (Micom board & regurator) Electrical parts list Block No. 02 Item Parts number Parts name Remarks Area Item Parts number Parts name Remarks Area R7641 NRSA02J-102X MG RESISTOR R8017 NRSA02J-392X MG RESISTOR R7642 NRSA02J-102X MG RESISTOR R8018 NRSA02J-562X MG RESISTOR R7647 NRSA02J-104X MG RESISTOR...
  • Page 64 UX-V30/FS-V30 (CD board) Electrical parts list Block No. 03 Item Parts number Parts name Remarks Area Item Parts number Parts name Remarks Area CN601 QGF1201F3-13 CONNECTOR D6063 1SS355-X DIODE CN602 QGF1201F3-10 CONNECTOR IC601 AN8806SB-W CN603 QGF1016F1-16 FFC/FPC CONNE IC602 LA6541-X CN605 QGA2001C1-06 6P PLUG ASSY...
  • Page 65 UX-V30/FS-V30 (CD board) Electrical parts list Block No. 03 Item Parts number Parts name Remarks Area R6082 NRSA02J-392X MG RESISTOR R6121 NRSA02J-101X MG RESISTOR R6124 NRSA02J-0R0X MG RESISTOR W 604 QJP001-032001 SHI CR C-B WIRE X6051 QAX0413-001Z CRYSTAL 3-16...
  • Page 66 UX-V30/FS-V30 (Head amp board) Electrical parts list Block No. 04 Item Remarks Item Remarks Parts number Parts name Area Parts number Parts name Area C 101 NCS21HJ-821X C CAPACITOR 820PF 5% 50V IC 33 BU4094BCF-X C 102 NCS21HJ-221X C CAPACITOR 220PF 5% 50V L 301 QQR0620-001...
  • Page 67 UX-V30/FS-V30 (Head amp board) Block No. 04 Electrical parts list Item Remarks Parts number Parts name Area R 315 NRSA02J-100X MG RESISTOR 10 5% 1/10W R 316 NRSA02J-223X RES. C.M 22K 5% 1/10W R 317 NRSA02J-100X MG RESISTOR 10 5% 1/10W R 319 NRSA02J-152X MG RESISTOR...
  • Page 68 UX-V30/FS-V30 (Tuner board) Electrical parts list Block No. 06 Area Remarks Area Item Remarks Item Parts number Parts name Parts number Parts name NCB21HK-223X C CAPACITOR CF 1 VCF2L3B-105Z CERAMIC FILTER FS-V30/UX-V30 J,UB,UP,US,UT,UY NCB21HK-103X C CAPACITOR CF 1 QAX0420-001 CERAMIC FILTER UX-V30 EETC1CM-106ZJC E.CAPACITOR...
  • Page 69 UX-V30/FS-V30 Packing materials and accessories parts list Block No. Block No. (Only UB version) A12 A13 A3,A4,A5,A7 3-20...
  • Page 70 UX-V30/FS-V30 Packing parts list Block No. M3MM Item Parts number Parts name Q'ty Description Area QPA02503503P POLY BAG FOR INST. BOOK GV20060-001A PACKING CASE UX-V30 GV20061-002A PACKING CASE FS-V30 GV10038-001A CUSHION(TOP) GV10039-001A CUSHION(BOTTOM) QPC05005015P POLY BAG QPA01503503 POLY BAG UX-V30 8000041211 CUSHION(TOP) FOR SPEAKER...

This manual is also suitable for:

Ux-v10Ux-v30rUx-v330rUx-v30Fs-v30
