Summary of Contents for AEG CIB6743MCB

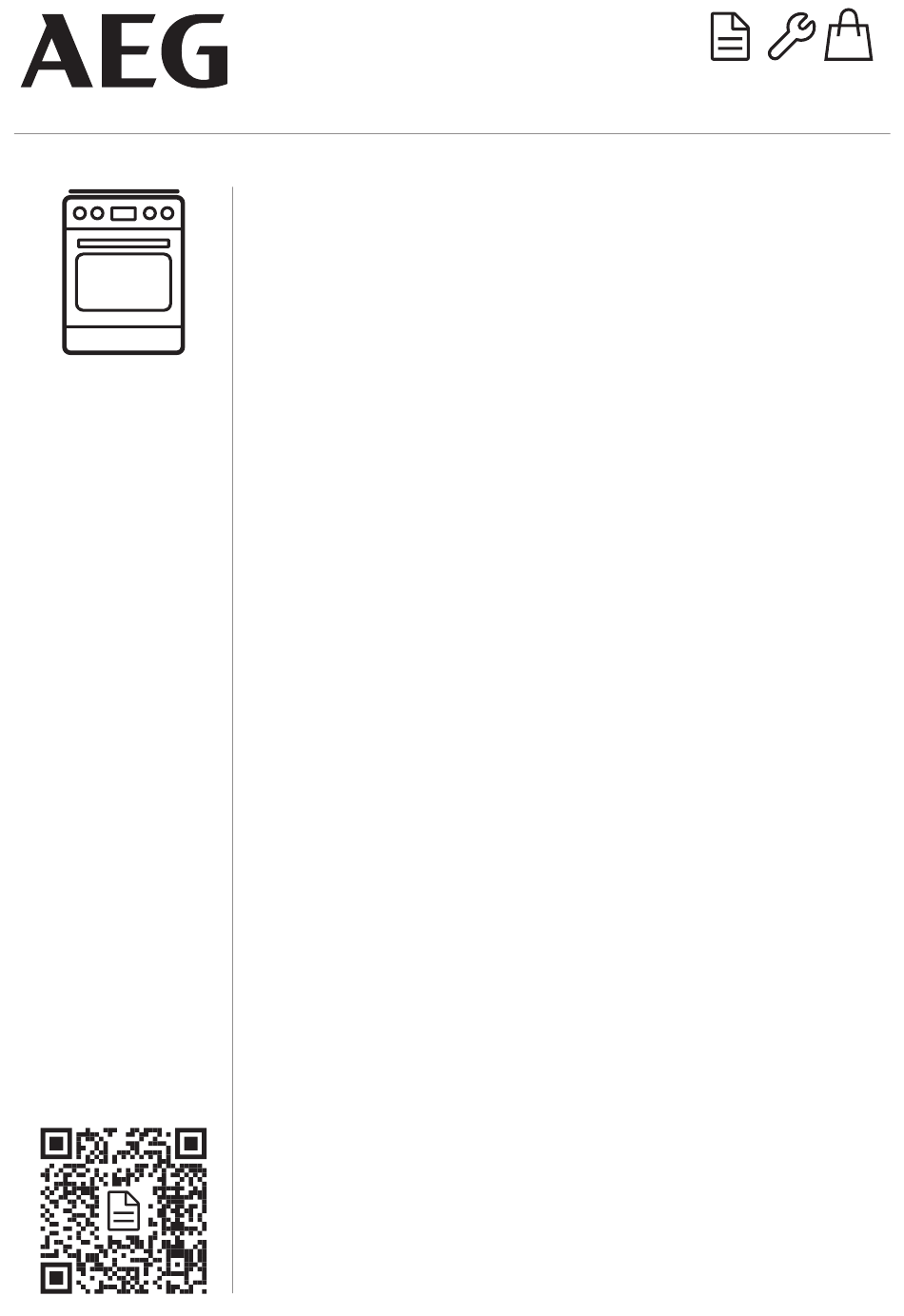

- Page 1 EN User Manual | Cooker CIB6743MCB CIB6743ACM CIB6743ACB aeg.com\register...
- Page 2 Welcome to AEG! Thank you for choosing our appliance. Get usage advice, brochures, troubleshooting, service and repair information: www.aeg.com/support Subject to change without notice. CONTENTS 1. SAFETY INFORMATION................2 2. SAFETY INSTRUCTIONS................5 3. INSTALLATION....................7 4. PRODUCT DESCRIPTION................9 5. BEFORE FIRST USE..................10 6.
- Page 3 be kept away from the appliance unless continuously supervised. • Children should be supervised to ensure that they do not play with the appliance. • Keep all packaging away from children and dispose of it appropriately. • WARNING: The appliance and its accessible parts become hot during use.
- Page 4 • WARNING: Unattended cooking on a hob with fat or oil can be dangerous and may result in fire. • Never use water to extinguish the cooking fire. Switch off the appliance and cover flames with e.g. a fire blanket or lid. •...
- Page 5 • To remove the shelf supports first pull the front of the shelf support and then the rear end away from the side walls. Install the shelf supports in the opposite sequence. • The means for disconnection must be incorporated in the fixed wiring in accordance with the wiring rules.
- Page 6 • The electrical installation must have an • Used oil, that can contain food remnants, isolation device which lets you disconnect can cause fire at a lower temperature than the appliance from the mains at all poles. oil used for the first time. The isolation device must have a contact •...
- Page 7 2.4 Care and Cleaning • Concerning the lamp(s) inside this product and spare part lamps sold separately: These lamps are intended to withstand WARNING! extreme physical conditions in household Risk of injury, fire, or damage to the appliances, such as temperature, appliance.
- Page 8 This appliance is supplied without a main plug or a main cable. Dimensions Applicable types of cables for different Depth 600 mm phases: 3.2 Location of the appliance Phase Min. size cable You can install your freestanding appliance 3x6.0 mm² with cabinets on one or two sides and in the 3 with neutral 5x1.5 mm²...
- Page 9 4. PRODUCT DESCRIPTION 4.1 General overview Control panel and hob Air vents for the cooling fan Heating element Lamp Shelf support, removable Cavity embossment Shelf positions 4.2 Hob overview Knob for the top oven functions Display Knob for the main oven functions Knob for the main oven temperature Temperature indicator / symbol for the main oven...
- Page 10 5. BEFORE FIRST USE 5.3 Setting the time WARNING! You must set the time before you operate the Refer to Safety chapters. oven. 5.1 Initial preheating and cleaning Preheat both empty appliances before the Only the top oven works without the set first use and contact with food.
- Page 11 6.1 Hob control panel Use the sensor fields to operate the appliance. The displays, indicators and sounds tell which functions operate. Sensor Function Comment field Heat setting display To show the heat setting. Timer indicators of cooking zones To show for which zone you set the time. Timer display To show the time in minutes.
- Page 12 Display Description PowerBoost operates. There is a malfunction. + digit OptiHeat control (3 step Residual heat indicator): continue cooking / keep warm / resid‐ ual heat. Lock / Child safety device operates. Incorrect or too small cookware or no cookware on the cooking zone. Automatic switch off operates.
- Page 13 To activate the function: touch of the Heat setting The hob deactivates timer to set the time (00 - 99 minutes). When after the indicator of the cooking zone starts to flash slowly the time counts down. 4 hours To see the remaining time: set the cooking 6 - 9 1.5 hour zone with...
- Page 14 6.11 Child safety device To activate the function: touch . Touch This function prevents an accidental of the timer to set the time. Cooking operation of the hob. zones display deactivates automatically after 10 seconds. When the time comes to an end, To activate the function: the hob must be the sound operates and 00 flashes.
- Page 15 mode activates automatically after 10 seconds. For most of the hoods the remote system is originally deactivated. Activate it before you use the function. For more To operate the hood directly on the hood information refer to hood user manual. panel deactivate the automatic mode of the function.
- Page 16 • The function activates when the total electricity load of the cooking zones is exceeded. • The function reduces the power of the other cooking zones. • The heat setting display of the reduced zones changes between two levels. 7. HOB - HINTS AND TIPS WARNING! Refer to Safety chapters.
- Page 17 7.3 Noises during operation • rhythmic sound: cookware is detected. 7.4 Öko Timer Eco timer To save energy, the heater of the cooking The noises are normal and do not zone deactivates before the count down timer indicate any malfunction. Cookware sounds.
- Page 18 Heat setting Use to: Time Hints (min) Boil large quantities of water. PowerBoost is activated. 8. HOB - CARE AND CLEANING 8.2 Cleaning the hob WARNING! • Remove immediately: melted plastic, Refer to Safety chapters. plastic foil, salt, sugar and food with sugar, otherwise, the dirt can cause damage to 8.1 General information the hob.
- Page 19 1. Turn the knob for the top / main oven functions to select an oven function. Conventional cooking 2. Turn the knob for the temperature to To bake and roast food on one shelf position. select a temperature. SteamBake 3. To deactivate the oven turn the knob for To add humidity during cooking.
- Page 20 WARNING! Make sure that the appliance is cold • All accessories have small before you remove the remaining indentations at the top of the right and water from the cavity embossment. left side to increase safety. The indentations are also anti-tip devices. 9.5 Cooling fan •...
- Page 21 9.8 Telescopic runners - inserting Put the wire shelf on the telescopic runners the oven accessories so that the feet point downwards. Deep pan: Keep the installation instructions for the telescopic runners for future use. CAUTION! Only use the telescopic runners in the main oven.
- Page 22 Button Function Description CLOCK To set a clock function. PLUS To set the time. 10.3 Clock functions Clock function Application TIME OF DAY To set, change or check the time of day. Only the top oven works without the set time. DURATION To set how long the oven works.
- Page 23 11. OVEN - HINTS AND TIPS WARNING! Refer to Safety chapters. The temperature and baking times in the tables are guidelines only. They depend on the recipes and the quality and quantity of the ingredients used. 11.1 Moist fan baking Bread and pizza Food Temperature (°C)
- Page 24 Food Temperature (°C) Time (min) Shelf position Macaroons 25 - 35 Muffins 25 - 35 Savoury cracker 20 - 30 Short crust pastry biscuits 25 - 35 Tartelettes 15 - 25 Vegetarian Food Temperature (°C) Time (min) Shelf position Mixed vegetables in pouch 400 g 25 - 35 Omelette 20 - 30...
- Page 25 Food regeneration Food Temperature Water in the Preheating Time (min) Shelf (°C) cavity em‐ time (min) posi‐ bossment tion (ml) White bread 15 - 25 Bread rolls 10 - 20 Homemade pizza 15 - 25 Focaccia 15 - 25 Vegetables 15 - 25 Rice 15 - 25...
- Page 26 Food Function Tempera‐ Time (min) Accesso‐ Shelf po‐ ture (°C) ries sition Apple pie, 2 tins (ø 20 cm) True fan cooking 80 - 100 Grid on the grid, diagonally shif‐ Apple pie, 2 tins (ø 20 cm) SteamBake 70 - 80 Tray on the grid, diagonally shif‐...
- Page 27 • Clean stains with a mild detergent. Do not The walls with catalytic coating are self- apply it on the catalytic surfaces. cleaning. They absorb fat which collects on Everyday Use the walls while the appliance operates. • Clean the cavity after each use. Fat To support the self-cleaning procedure, heat accumulation or other residue may cause the empty oven on a regular basis.
- Page 28 2. Pull the rear end of the shelf support away from the side wall and remove it. 3. Pull the door trim to the front to remove it. 4. Remove the glass panels. To install the panels, do the same steps in reverse.
- Page 29 3. Put a cloth on the bottom of the cavity. The back lamp To replace the glass panels, do the same steps in reverse. Before you lower the trim, attach the A trim part to the door. Refer to the image. The lamp glass cover is at the back of the cavity.
- Page 30 Problem Possible cause Remedy The heat setting changes between Power management function oper‐ Refer to "Hob - Daily use" chapter. two levels. ates. The sensor fields become hot. The cookware is too large or you put Put large cookware on the rear it too near to the controls.
- Page 31 • If it is possible, always put the lids on the cookware. 14.3 Product Information Sheet and Product Information according to EU and UK Energy Labelling and Ecodesign Regulations for Oven Supplier's name CIB6743MCB 948904354 Model identification CIB6743ACM 948904355 CIB6743ACB 948904354 Top oven: 105.6 Energy Efficiency Index Main oven: 95.3...
- Page 32 Heat source Electricity Top oven: 39 l Volume Main oven: 73 l Type of oven Oven inside Freestanding Cooker CIB6743MCB 65.2 kg Mass CIB6743ACM 65.2 kg CIB6743ACB 65.2 kg IEC/EN 60350-1 - Household electric cooking appliances - Part 1: Ranges, ovens, steam ovens and grills - Meth‐...
- Page 33 15. ENVIRONMENTAL CONCERNS the household waste. Return the product to Recycle materials with the symbol . Put the your local recycling facility or contact your packaging in relevant containers to recycle it. municipal office. Help protect the environment and human health by recycling waste of electrical and Electrolux Appliances AB - Contact Address: electronic appliances.
- Page 36 867364065-A-202024...
Need help?
Do you have a question about the CIB6743MCB and is the answer not in the manual?
Questions and answers
My rear right induction hob dial won't turn
My bottom main oven dial won't turn
The rear right induction hob dial on the AEG CIB6743MCB may not turn due to one of the following reasons:
1. Child Safety Device or Lock Function is Activated – The hob may be locked. Deactivate the lock function.
2. Automatic Switch Off is Active – The hob may have turned off automatically. Deactivate and reactivate it.
3. No Cookware or Incorrect Cookware – Ensure cookware is placed on the zone and is induction-compatible.
4. Cookware Diameter is Too Small – Use cookware with the correct diameter for the cooking zone.
Refer to the "Hob - Daily use" and "Hob - Hints and Tips" sections for further details.
This answer is automatically generated
