100
1

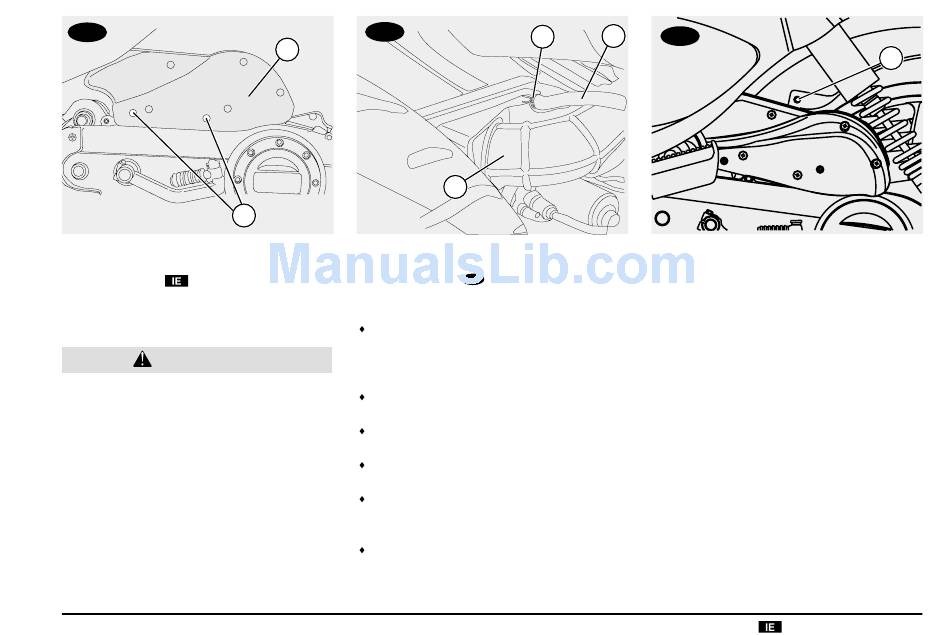

REMOVING AIR CLEANER BOX
ASSEMBLY
Carefully read page 47 (MAINTENANCE).
CAUTION
The disassembly and reassembly opera-
tions of the air cleaner box assembly are
difficult and complicated. Contact an
aprilia Official Dealer.
100
5
4
REMOVING AIR CLEANER BOX
ASSEMBLY
Carefully read page 47 (MAINTENANCE).
Position the vehicle on the centre stand,
on a solid and level surface, see page 46
(POSITIONING THE VEHICLE ON THE
CENTRE STAND).
Unscrew and remove the two screws (1)
keeping the relative stop nuts.
Unloose the splash guard fixing screw with
filter box (6).
Withdraw clamp (2) from the air tube (3)
using a suitable tool (3).
Unloose the fixing clamp and remove the
air cleaner-carburettor tube (4) from the
air cleaner (5).
Remove the air cleaner box assembly (5).
3
2
100
use and maintenance Scarabeo 50
100
- Scarabeo 100 4T
6
57
