ASSEMBLY INSTRUCTION
Read this instruction carefully. Remove all wrapping material, staples and straps from the carton.
See hardware and furniture part list
For guidance. Be sure you have all wooden furniture parts on a clean and flat soft surface, such as
a carpet or rug, to prevent from being scratched.Follow the figure to start assembling.
CAUTION :
1. Do not FULLY - TIGHTEN the nut or screw untill all is ready to assemble.
2. Do not OVER - TIGHTEN the nut or screw to avoid causing damages to the thread.
3. Keep all hardware part out reach of children.
STEP 1.1
Firstly, stick E to C for both left and
right side.
C
E
STEP 1.2
Then, attached STEP 1.1 to B
according to the hole and tighten it
using hardware number 2,3,4 and 6.
2
3
4
B
C
STEP 2
Continued with combine the whole
part from STEP1.2 to A . Tighten the
part of C and A using hardware
number 3,1 and 6 . Then cover the
hole with F.
3 1
C
A
6
C
C
NO PART LIST
BACK REST
A
B FRONT LEG
SIDE RAIL
C
BENT CUSHION SEAT
D
E CENTER SUPPORT
WOOD BUTTON
F
STEP 3
Stick D to the whole assemble part
and fully-tighten it with hardware
number 5 .
6
F
A
D
MODEL : 378C
QTY NO DESCRIPTION
1 PC JCBC SCREW M6 X 70MM
1
1 PC 2 JCBC SCREW M6 X 50MM
2 PCS
3
SPRING WASHER
1 PC
4 WOOD DOWEL Ø8 x 30MM
1 PC
5 5
CSK SCREW M4 x 30MM
4 PCS
M4 ALLEN KEY
6
STEP 4
5 X 4PCS
CUSHION
SEAT

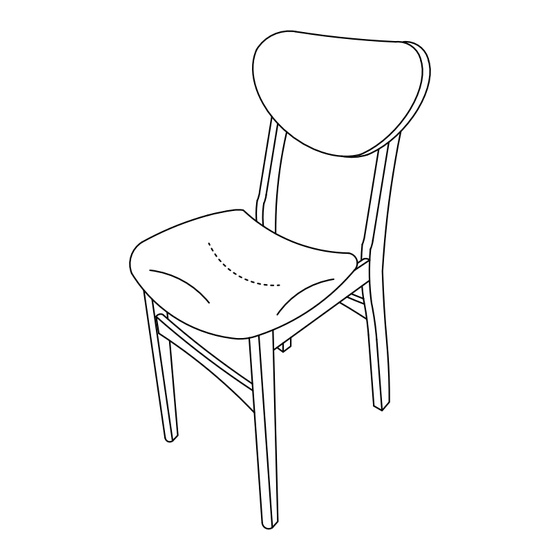

COMPELETE
ASSEMBLE
QTY
4 PCS
2 PCS
6 PCS
4 PCS
4 PCS
1 PC
