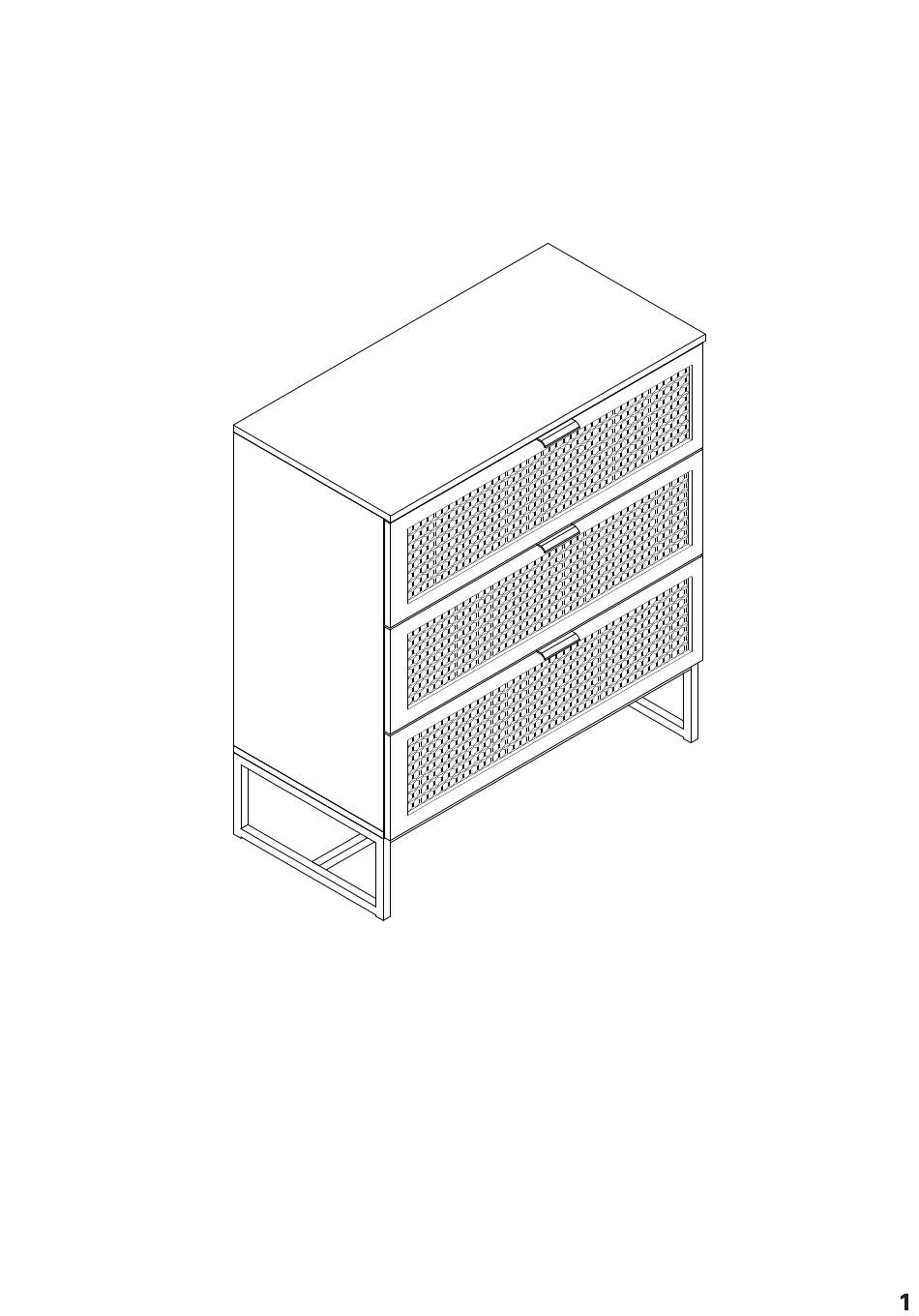

- Page 1 Chest of drawers ASSEMBLY INSTRUCTION Date last updated:07-13-2022...
- Page 2 27 PCS 12 PCS 15 PCS 18 PCS 20 PCS 6 PCS 36 PCS 2 PCS M4x35mm M4x40mm M3.5x12mm M4x12mm 2 PCS 8 PCS 8 PCS 2 PCS M3x14mm 3 PCS 1 PC 8 PCS 6 PCS 3 PCS 3 PCS 6 PCS 3 PCS M3x10mm...
- Page 3 7- 3 PCS 8 - 3 PCS 9 - 3 PCS 11 - 3 PCS 10 - 3 PCS 13 - 3 PCS 14 - 1 PC 15 - 1 PC...
- Page 4 16 - 2 PCS 17 - 2 PCS 18 - 1 PC Fix outer drawer runners (CL) and (CR) to part 2 CL x 3 and part 3 using screws (g), as shown. CR x 3 g x 18...
- Page 5 a x 8 Insert quickfit screws (a) into parts 2 and 3. Insert cam locks (b) and wooden dowels (d) into parts 5, 6 and 12. Fit parts 5, 6 and 12 to parts 2 and 3, as shown. Turn cam locks clockwise to tighten. b x 8 d x 2 Slide part 15 into grooves between parts 2, 6 and 3, as shown.
- Page 6 Slide part 14 into grooves between parts 2, 6 and 3, as shown. Fix wall brackets (i) to part 1 using screws (h), as shown. Insert quickfit screws (a) into part 1. a x 4 Insert cam locks (b) and wooden dowels (d) into parts 2, 3 and 12. Fit part 1 to parts 2, 3 and 12, as shown.
- Page 7 Fix parts 17 and 18 to parts 16 using screws (m) and allen key (p), as shown. m x 6 p x 1 Fix metal legs to assembled unit using screws (n) and allen key, as shown. n x 8...
- Page 8 Fix parts 7, 11 and 8 to parts 9 using screws (e), as shown. e x 18 Slide parts 13 into grooves between parts 7, 9 and 8, as shown.
- Page 9 Fix handle (o) to parts 10 using screws (q), as shown. Insert quickfit screws (a) into parts 10. a x 15 Insert cam locks (c) and wooden dowels (d) into parts 7, 8 and 11. Fit parts 10 to parts 7, 8 and 11, as shown. Turn cam locks clockwise to tighten.
- Page 10 Fix corner brackets (k) to parts 14 and 15 using screws (l), as shown. k x 8 l x 8 For extra stability, you must fix your chest of drawers to the wall using hardwares (f and j), as shown. Screws (f) are fixed through wall brackets (i) and into the wall plugs (j).
- Page 11 Fit drawers into assembled unit, as shown. STEP 15. Your chest of drawers is ready for use.
