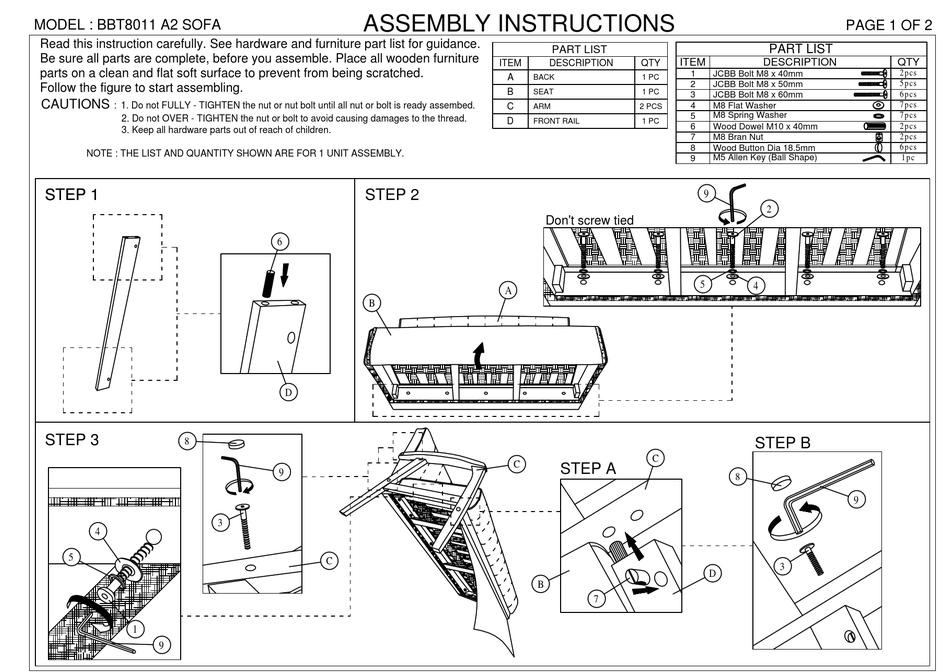

Baxton Studio Nikko BBT8011 A2 Assembly Instructions

MODEL : BBT8011 A2 SOFA MODEL : BBT8011.13 A2 3 Seater Sofa
Read this instruction carefully. See hardware and furniture part list for guidance.
Be sure all parts are complete, before you assemble. Place all wooden furniture
parts on a clean and flat soft surface to prevent from being scratched.
Follow the figure to start assembling.
CAUTIONS
: 1. Do not FULLY - TIGHTEN the nut or nut bolt until all nut or bolt is ready assembed.
2. Do not OVER - TIGHTEN the nut or bolt to avoid causing damages to the thread.
3. Keep all hardware parts out of reach of children.
NOTE : THE LIST AND QUANTITY SHOWN ARE FOR 1 UNIT ASSEMBLY.
STEP 1 STEP 1
STEP 3
8
4
5
1
9
ASSEMBLY INSTRUCTIONS
STEP 2
6
B
D
9
3
C
PART LIST
QTY
ITEM DESCRIPTION
A
BACK 1 PC
B
SEAT 1 PC
C ARM 2 PCS
D
FRONT RAIL 1 PC
Don't screw tied
A
C
C
STEP A
B
7
PAGE 1 OF 2
PART LIST
ITEM DESCRIPTION
1 JCBB Bolt M8 x 40mm
2 JCBB Bolt M8 x 50mm
3 JCBB Bolt M8 x 60mm
4 M8 Flat Washer
M8 Spring Washer
5
6 Wood Dowel M10 x 40mm
7 M8 Bran Nut
8 Wood Button Dia 18.5mm
M5 Allen Key (Ball Shape)
9
9
2
5
4
STEP B
8
9
3
D
QTY
2pcs
5pcs
6pcs
7pcs
7pcs
2pcs
2pcs
6pcs
1pc
