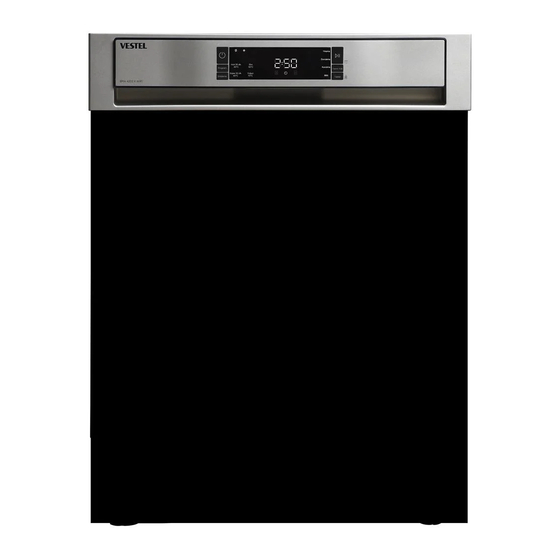

VESTEL BMA 4202 X WIFI Instruction Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
DISHWASHER
INSTRUCTION MANUAL
BMA 4202 X WIFI

Advertisement

loading
Need help?

Need help?

Do you have a question about the BMA 4202 X WIFI and is the answer not in the manual?

Questions and answers

Related Manuals for VESTEL BMA 4202 X WIFI

Summary of Contents for VESTEL BMA 4202 X WIFI

  • Page 1 DISHWASHER INSTRUCTION MANUAL BMA 4202 X WIFI...
  • Page 2 Your device will serve you for long years as long as you display the necessary care and maintenance. We hope you enjoy using your device. This product was manufactured in environmentally friendly VESTEL BEYAZ EŞYA A.Ş. facilities with no harm to the nature.
  • Page 3 CONTENTS 1.SAFETY INSTRUCTIONS ....................1 1.1. General Safety Warnings ....................1 1.2. Installation Warnings .....................1 1.3. During Use........................2 2.INSTALLATION .........................6 2.1. Machine Positioning .....................6 2.2. Water Connection ......................6 2.3. Water Inlet Hose ......................6 2.4. Drain Hose........................7 2.5. Electrical Connection ....................7 2.6. Fitting the Machine Undercounter .................7 3.TECHNICAL SPECIFICATIONS ..................8 3.1.
  • Page 4 8.CCLEANING AND MAINTENANCE ................20 8.1. Filters ........................... 20 8.2. Spray Arms ........................20 8.3. Drain Pump ........................21 9.TROUBLESHOOTING ....................22 10. PRACTICAL INFORMATION ..................25 11.THE PRODUCT FICHE ....................26...
  • Page 5 1. SAFETY INSTRUCTIONS 1. General Safety Warnings • Read these instructions carefully before using your appliance and keep this manual for future reference. Please check the packaging of your machine before installation and the outer surface of the machine once the packaging has been removed. Do not operate the machine if it appears damaged or if the packaging has been opened.
  • Page 6 2. Installation Warnings • Choose a suitable and safe place to install your machine. • Only original spare parts should be used with the machine. Unplug the machine before installation. Your machine must only be installed by an authorised service agent. Installation by anyone other than an authorised agent may cause your warranty to be void.
  • Page 7 pressure exceeds 1 MPa, a pressure relief valve must be fitted between the connection. 3. During Usage • This machine is for domestic use only; do not use • it for other purposes. Commercial use will void the guarantee. Do not stand, sit or place loads on the open door of the dishwasher.
  • Page 8 the door for one minute after it has opened. For effective drying, keep the door open for 30 minutes after a programme has ended. Do not stand in front of the door after the auto-open signal sounds. In the case of a malfunction, repair should only be performed by an authorised service company, otherwise the warranty will be void.
  • Page 9 Safety Information to be Followed During Cleaning or Maintenance • Clean your appliance regularly as explained in "Cleaning and Maintenance" chapter. Unplug the appliance and close the tap before starting maintenance and cleaning. WARNING: Do not wash the appliance with pressurized water. Do not use abrasive subs-tances while cleaning.
  • Page 10 WARNING: Use the new water inlet 2. INSTALLATION hose supplied with your machine, do not use an old machine’s hose. 2.1. Machine positioning WARNING: Run water through the When positioning the machine, place it in new hose before connecting. an area where dishes can be easily loaded and unloaded.
  • Page 11 2.5. Electrical connection WARNING: Your machine is set to operate at 220-240 V. If the mains voltage supply to your machine is 110 V, connect a transformer of 110/220 V and 3000 W between the electrical connection. Connect the product to a grounded outlet protected by a fuse complying with the values in the "Technical Specifications"...
  • Page 12 3. TECHNICAL SPECIFICATIONS 3.2. 3.2. T T echnical specifications echnical specifications 13 place Capacity settings Dimensions Height 820-870(mm) Width 598(mm) Depth 570(mm Net weight 38 kg Operating 220-240V 50 voltage / (Hz) frequency Total 10(A) current Total power 1900(W) 3.1. General appearance Maximum: 1.
  • Page 13 4..3 Fill the salt (IF AVAILABLE) 4. BEFORE USING To add softener salt, open the salt THE APPLIANCE compartment cap by turning it counter clockwise. (1) (2) At first use, fill the 4.1. Preparing your compartment with 1 kg salt and water (3) until dishwasher for first use it is almost overflowing.
  • Page 14 4.4 Test Strip Run water Keep the Shake the Wait Set the hardness level of through the strip in the strip. (1min.) your machine. tap (1min.) water (1sec) second minute minute NOTE: The level is set to 3 as default. If the water is well water or has a hardness level above 90 dF, we recommend that you use filter and refinement devices.
  • Page 15 Add the proper detergent for the selected 4.11 Rinse-aid usage program to ensure the best performance. The rinse aid helps to dry the dishes without The amount of detergent needed depends streaks and stains. Rinse-aid is required for on the cycle, load size, and soil level of stain-free utensils and clear glasses.
  • Page 16 Level Brightener Dose Indicator Rinse-aid not r1 is shown on the dispensed display. 1 dose is r2 is shown on the dispensed display. 2 doses are r3 is shown on the dispensed display. 3 doses are r4 is shown on the dispensed display.
  • Page 17 5. LOADING YOUR WARNING: To avoid any possible DISHWASHER injuries, place long-handle and sharp- pointed knives with their sharp points facing down or horizontally on the baskets. For best results, follow these loading guidelines. Height Adjustable Rack (peg type) Loading the household dishwasher up to The height adjustable racks enable glasses the capacity indicated by the manufacturer and cups to be placed on or under the...
  • Page 18 Upper Basket Height Adjustment when Movable Cutlery Basket Full The movable cutlery basket can slide The upper basket includes a mechanism between the front and rear wires of the that allows the height of the basket to be lower basket. adjusted to the upper (1), lower (2) or middle (3) position without having to remove the basket.
  • Page 19 5.2. Alternative basket loads Unsuitable items for dishwashing Lower basket • Cigarette ashes, candle leftovers, polish, paint, chemical substances, iron- alloy materials. • Forks, spoons and knives with wooden, bone, ivory or nacrecoated handles; glued items, items soiled with abrasive, acidic or base chemicals.
  • Page 20 6. PROGRAMME TABLE Hızlı 30dk. 40°C Eko 50°C Süper 50 dk. 65°C Yoğun 70°C Program Name: (Quick 30’ 40 °C) (Eco 50°C) (Super 50’ 65°C) (Intensive 70°C) Standard program for normally soiled Suitable for Suitable for lightly Suitable for daily using dishes normally soiled Type of Soil: soiled dishes and...
  • Page 21 7 THE CONTROL PANEL button. If you switch off the machine after selecting and activating the delay time, the delayed time is cancelled. 4. Remaining Time Indicator Programme flow can be monitored via the Wash, Rinse, Dry, End indicators (10) and Remaining Time Indicator.
  • Page 22 7.2 Cancelling a programme • End If you would like to cancel a programme NOTE: Child lock is activated/deactiva- when it is running. by pressing the Tablet button (5) for about 3 seconds. When it is activated, all leds blink and “CL”...
  • Page 23 Buzzer Sound Control (Model 12. Remote Access Indicator Depending) When the Wi-Fi setup is complete, you can press and hold the Program button (2) for To change the buzzer sound level, follow the below steps: 2 seconds to enable remote access. When the remote access function is enabled, the 1.
  • Page 24 • When the wireless connection between NOTE: At this stage, make sure that your machine and your home network your machine is connected to the same is cut off, the Wi-Fi Connection (11) and Wi-Fi network as your smart device and that Remote Access (12) indicators will flash your Wi-Fi network password is correct.
  • Page 25 8. CLEANING AND To remove and clean the filter combination, turn it counter clockwise and remove it by MAINTENANCE lifting it upwards (1).Pull the coarse filter out of the micro filter (2).Then pull and remove Cleaning your dishwasher is important to the metal filter (3).Rinse the filter with lots of maintain the machine’s service life water until it is free of residue.
  • Page 26 8.3 Drain Pump Large food residues or foreign objects which were not captured by the filters may block the waste water pump. The rinsing water will then be above the filter. Warning Risk of cuts! When cleaning the waste water pump, ensure that you do not injure yourself on pieces of broken glass or pointed implements.
  • Page 27 9. TROUBLESHOOTING When you detect an abnormal situation in your device, you can try to solve the problem according to the explanations below. If your device still does not continue to operate normally, please contact the Contact Center. You can find the authorized service list and contact information on the website.
  • Page 28 FAULT POSSIBLE CAUSE TROUBLESHOOTING Use the correct amount of detergent, as Not enough detergent used. instructed in the programme table. Rinse aid dosage and/or water Increase rinse aid and/or water softener softener setting set too low. level. Whitish stains remains on dishes.
  • Page 29 AUTOMATIC FAULT WARNINGS AND WHAT TO DO TROUBLE POSSIBLE FAULT WHAT TO DO CODE Make sure the water inlet tap is open and water is flowing Separate the inlet hose from the tap and clean the filter of Insufficient water the hose.
  • Page 30 Disposal of the Appliance in an repaired at the seller’s expense by Environmental Friendly Manner bringing all repair costs to the seller if such costs are not excessive, This symbol on the appliance or on the packaging of the appliance 4.
  • Page 31 Suggestions for Energy Saving In order to save energy by using your machine in the most efficient way, it is recommended to follow the recommendations below. - Turn your machine off when not in use. - Do not open and close the door of your machine while it is operating.
  • Page 32 If you want to reach us, we are here for you 24/7 on the following communication channels. Many answers you are looking for cozumuvar.vestel.com.tr you can find on our website. You can access our problem-solving and informative videos, open an authorized service record, follow your record, and access up-to- date technical documents for your product.
  • Page 33 Household dishwasher Spare parts on the market minimum availability for 10 years.
  • Page 34 Manufacturer: Vestel Beyaz Eşya San. ve Tic. Inc. Manisa Manisa III. Kisim Kecilikoyosb Mah. Mustafa Kemal Bulv. No:10 Yunusemre/ Manisa - Turkey Tel: 0850 222 4 123 Web: www.vestel.com.tr/support E-mail: vmh@vestel.com.tr...
