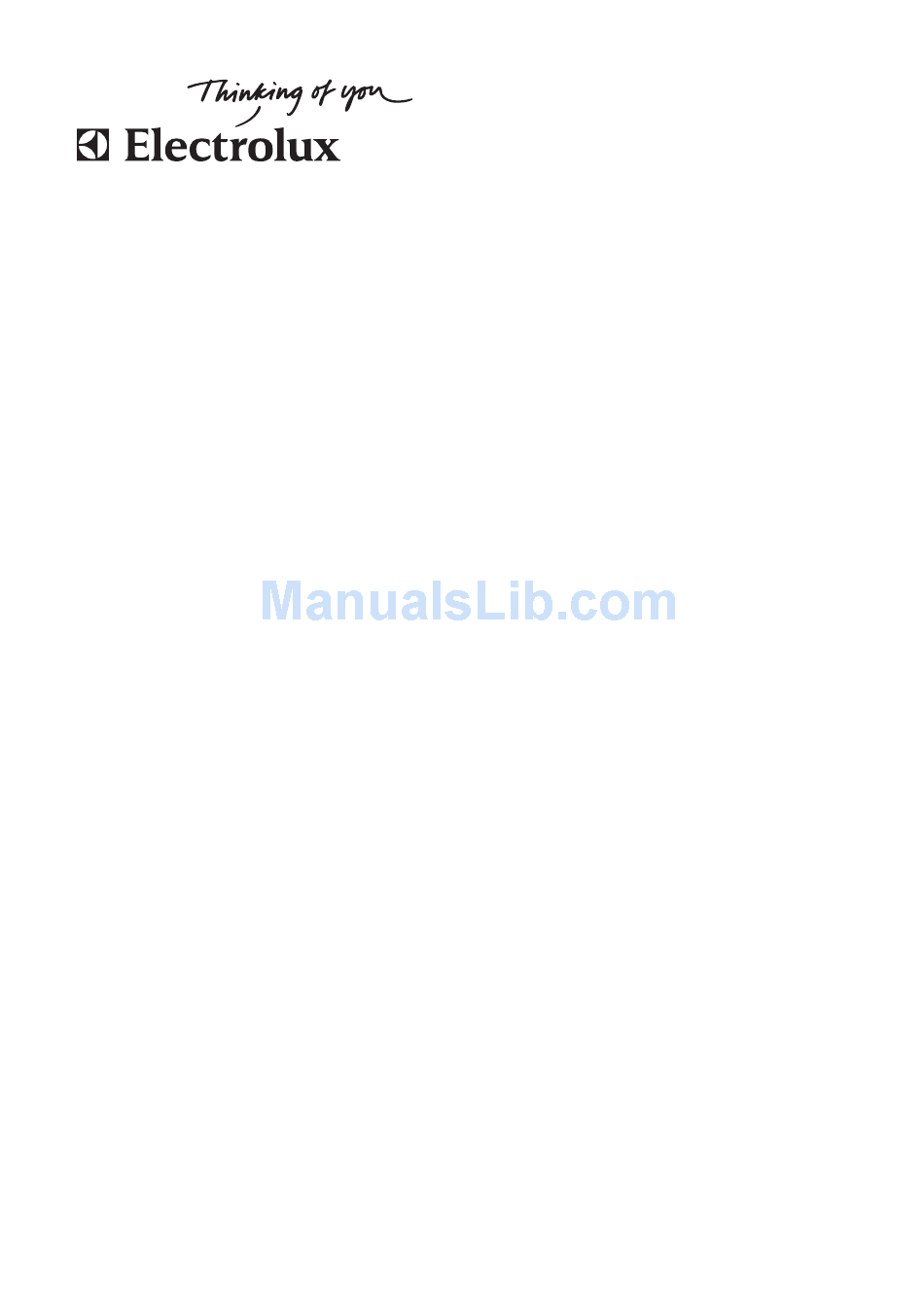

  • Page 1 user manual Dishwasher ESF 45010...
  • Page 2 We were thinking of you when we made this product...
  • Page 3 You’ve chosen a first class product from Electrolux, which hopefully will provide you with lots of pleasure in the future. Electrolux ambition is to offer a wide variety of quality products that make your life more comfortable. You can look at some examples on the cover in this manual.

  • Page 4: Table Of Contents

    4 electrolux contents Contents Safety information Product description Control panel First use Daily use Washing programmes Care and cleaning Something not working Technical data Hints for test institutes Installation Environment concerns The following symbols are used in this manual: Important information concerning your personal safety and information on how to avoid damaging the appliance.

  • Page 5: Safety Information

    5 Safety information After use, isolate the appliance from the power supply and turn off the water supply. In the interest of your safety and to This product should be serviced ensure the correct use, before only by an authorised service...
  • Page 6 6 electrolux safety information Keep all packaging well away from children. There is risk of suffocation. Keep all detergents in a safe place out of children’s reach. Keep children well away from the dishwasher when the door is open. Installation Check your dishwasher for any transport damage.

  • Page 7: Product Description

    7 Product description Upper basket Water hardness dial Salt container Detergent dispenser Rinse aid dispenser Rating plate Filters Lower spray arm Upper spray arm Worktop...

  • Page 8: Control Panel

    Control panel On/Off button Programme selection buttons Delay start button Digital display Indicator lights...
  • Page 9 9 Indicator lights Programme in progress Illuminates when a washing programme is set and remains illuminated for all the duration of the washing programme. Turns off when the washing programme has ended. End of programme Illuminates when a washing programme has ended.
  • Page 10 10 electrolux control panel Setting mode Press On/Off button, ALL programme button lights are Always remember that when: illuminated and in the digital setting a washing programme, display 3 horizontal lines are setting the water softener, visible = appliance in setting mode.

  • Page 11: First Use

    11 First use Before using your dishwasher for the Set the water softener first time: The dishwasher is equipped with a Ensure that the electrical and water softener designed to remove water connections comply with the minerals and salts from the water...
  • Page 12 12 electrolux first use The water softener must be set in 3. Press button 1, the lights of both ways: manually, using the water buttons 2 and 3 turn off while the hardness dial and electronically, using light of the button 1 goes on...
  • Page 13 13 Filling with dishwasher salt 4. Replace the cap making sure that there is no trace of salt on the screw thread or on the gasket. 5. Replace the cap tightly turning it Only use salt specifically designed for clockwise until it stops with a click.
  • Page 14 14 electrolux first use Filling with rinse aid According to the finish and drying results obtained, adjust the dose of Rinse aid ensures thorough rinsing, rinse aid by means of the 6 position and spot and streak free drying. selector (position 1 minimum dosage, Rinse aid is automatically added position 6 maximum dosage).

  • Page 15: Daily Use

    15 Daily use Check if it’s necessary to refill with - Lay small objects in the cutlery dishwasher salt or rinse aid basket. Load cutlery and dishes into the Plastic items and pans with non dishwasher. stick coatings have a tendency to Fill with dishwasher detergent .
  • Page 16 16 electrolux daily use For washing in the dishwasher the following cutlery and dishes are not suitable: - Cutlery with wooden, horn, china or mother-of- pearls handles. - Plastic items that are not heat resistant. - Older cutlery with glued parts that are not temperature resistant.
  • Page 17 17 Open the door and slide out the The two rows of prongs on the lower baskets to load the dishes. basket can be easily lowered to allow you to load pots, pans and bowls. The lower basket...
  • Page 18 18 electrolux daily use The cutlery basket To make easier the loading of the cutlery basket we advise you to lower the cutlery basket’s handle (fig.2). Long bladed knives stored in an fig. 2 upright position are a potential hazard.
  • Page 19 19 The upper basket The upper basket is designed for plates (dessert plates, saucers, dinner plates of up to 24 cm in diameter), salad bowls, cups and glasses. Arrange items on and underneath the cup racks so that water can reach all surfaces.
  • Page 20 20 electrolux daily use Adjusting the height of the upper basket If washing very large plates you can load them in the lower basket after moving the upper basket to the higher position. Maximum height of the dishes in: the upper...
  • Page 21 21 Use of detergent 20 = approximately 20 g of detergent 30 = approximately 30 g of detergent Only use detergents specifically 3. All programmes with prewash designed for use in dishwashers. need an additional detergent dose (5/10 g) that must be placed in the Please observe the manufacturer’s...
  • Page 22 22 electrolux daily use "3 in 1 function" Activation/deactivation of the 3 in 1 function This appliance is equipped with the "3 in 1 function", that allows the use of Press simultaneously the two buttons the "3 in 1" combi detergent tablets.
  • Page 23 23 Activation/deactivation of the rinse aid dispenser 1. Press the On/Off button. The If you decide to turn back to the dishwasher must be in setting use of standard detergent system mode. we advise that you: 1. Deactivate the 3 in 1 function.
  • Page 24 24 electrolux daily use Select and start a washing Setting and starting the programme programme with "delay start" 1. After having selected the washing programme, press the delay start button until the flashing number of hours for the delay start will appear Select the washing programme and in the digital display.
  • Page 25 25 Cancelling the "delay start" Press the On/Off button, all indicator lights will turn off. Press To cancel a delay start in progress the On/Off button again; the you have to reset the dishwasher. programme will start from the point Press simultaneously and keep at which it was interrupted.
  • Page 26 26 electrolux daily use Unloading the dishwasher Hot dishes are sensitive to knocks. The dishes should therefore be allowed to cool down before removing from the appliance. Empty the lower basket first and then the upper one; this will avoid...

  • Page 27: Washing Programmes

    27 Washing programmes Programme Degree of Type of load Programme description soil Prewash Main wash up to 70°C Crockery, 2 intermediate rinses Heavy soil cutlery, pots Final rinse and pans Intensive Drying Prewash Main wash up to 50°C or 65°C...

  • Page 28: Care And Cleaning

    28 electrolux care and cleaning Care and cleaning Cleaning the filters 4. Take hold of the coarse filter (A) by the handle with the hole and The filters must be checked and remove from the microfilter (B). cleaned from time to time. Dirty filters will degrade the washing result.
  • Page 29 29 Frost precautions Avoid placing the machine in a location where the temperature is NEVER try to remove the spray below 0°C. If this is unavoidable, arms. empty the machine, close the If residues of soil have clogged the...

  • Page 30: Troubleshooting

    30 electrolux something not working Something not working The dishwasher will not start or stops during operation. Certain problems are due to the lack of simple maintenance or oversights, which can be solved with the help of the indications described in the chart, without calling out an engineer.
  • Page 31 31 Malfunction Possible cause and solution The dishwasher’s door has not been The programme does not start properly closed. Close the door. The main plug is not plugged in. Insert the main plug. The fuse has blown out in the household fuse box.
  • Page 32 32 electrolux something not working The wash results are not satisfactory The dishes are not clean The wrong washing programme has been selected. The dishes are arranged in such a way as to stop water reaching all parts of the surface. The baskets must not be overloaded.

  • Page 33: Technical Data

    33 Technical data Dimensions Width 45 cm Height 85 cm Depth 63 cm Electrical connection Information on the electrical connection is given Voltage - Overall power - on the rating plate on the inner edge of the Fuse dishwasher’s door...
  • Page 34 34 electrolux technical data Consumption values Programme Programme Energy Water duration consumption consumption (in minutes) (in kWh) (in litres) Intensive 105 - 115 1.6 - 1.8 19 - 21 Auto 80 - 105 0.8 - 1.2 12 - 21 Quick 25 - 30 0.7 - 0.8...

  • Page 35: Hints For Test Institutes

    35 Hints for test institutes Testing in accordance with EN 60704 Test in accordance with EN 50242 must be carried out with appliance must be carried out when the salt fully loaded and using the test container and rinse aid dispenser programme (see "Consumption...

  • Page 36: Installation

    36 electrolux installation Installation Proceed as follows: Remove the machine’s worktop by unscrewing the two rear retaining Any electrical and/or plumbing screws, pull the worktop from the work required to install this back of the machine and slide out appliance should be carried out by the front slots, lifting the worktop.
  • Page 37 37 Water supply connections This dishwasher may be fed with either hot (max. 60°) or cold water. This appliance has been fitted with Nevertheless we advise you a cold safety features which will prevent the water supply. water used in the appliance from...
  • Page 38 38 electrolux installation Water inlet hose with safety valve After connecting the double-walled water inlet hose, the safety valve is next to the tap. Therefore the water inlet hose is only under pressure while the water is running. If the water...
  • Page 39 39 Water outlet hose connection When connecting the drain hose to an under sink trap spigot, the entire The end of the drain hose can be plastic membrane (A) must be connected in the following ways: removed. Failure to remove all the 1.
  • Page 40 40 electrolux installation Electrical connection Safety standards require the appliance to be earthed. Prior to using the appliance for the first time, ensure that the rated voltage and type of supply on the rating plate match that of the supply where the appliance is to be installed.

  • Page 41: Environment Concerns

    41 Environment concerns Packaging material Old appliance The packaging materials are The symbol on the product or on environmentally friendly and can be its packaging indicates that this recycled. The plastic components are product may not be treated as identified by markings, e.g.
  • Page 42 42 electrolux European guarantee This appliance is guaranteed by Electrolux, in each of the countries listed in the following page, for the period specified in the appliance guarantee or otherwise by law. If you move from one of these countries to...
  • Page 43 +38 61 24 25 731 Electrolux Ljubljana, d.o.o. Gerbičeva 98, 1000 Ljubljana Slovensko +421 2 43 33 43 22 Electrolux Slovakia s.r.o., Electrolux Domáce spotrebiče SK, Seberíniho 1, 821 03 Bratislava Türkiye +90 21 22 93 10 25 Tarlabafl› caddesi no : 35 Taksim Istanbul –ÓÒÒˡ...
  • Page 44 44 electrolux Notes ............
  • Page 45 45 Notes ............
  • Page 46 46 electrolux Notes ............
  • Page 48 117997 87/1-01-26042007...
