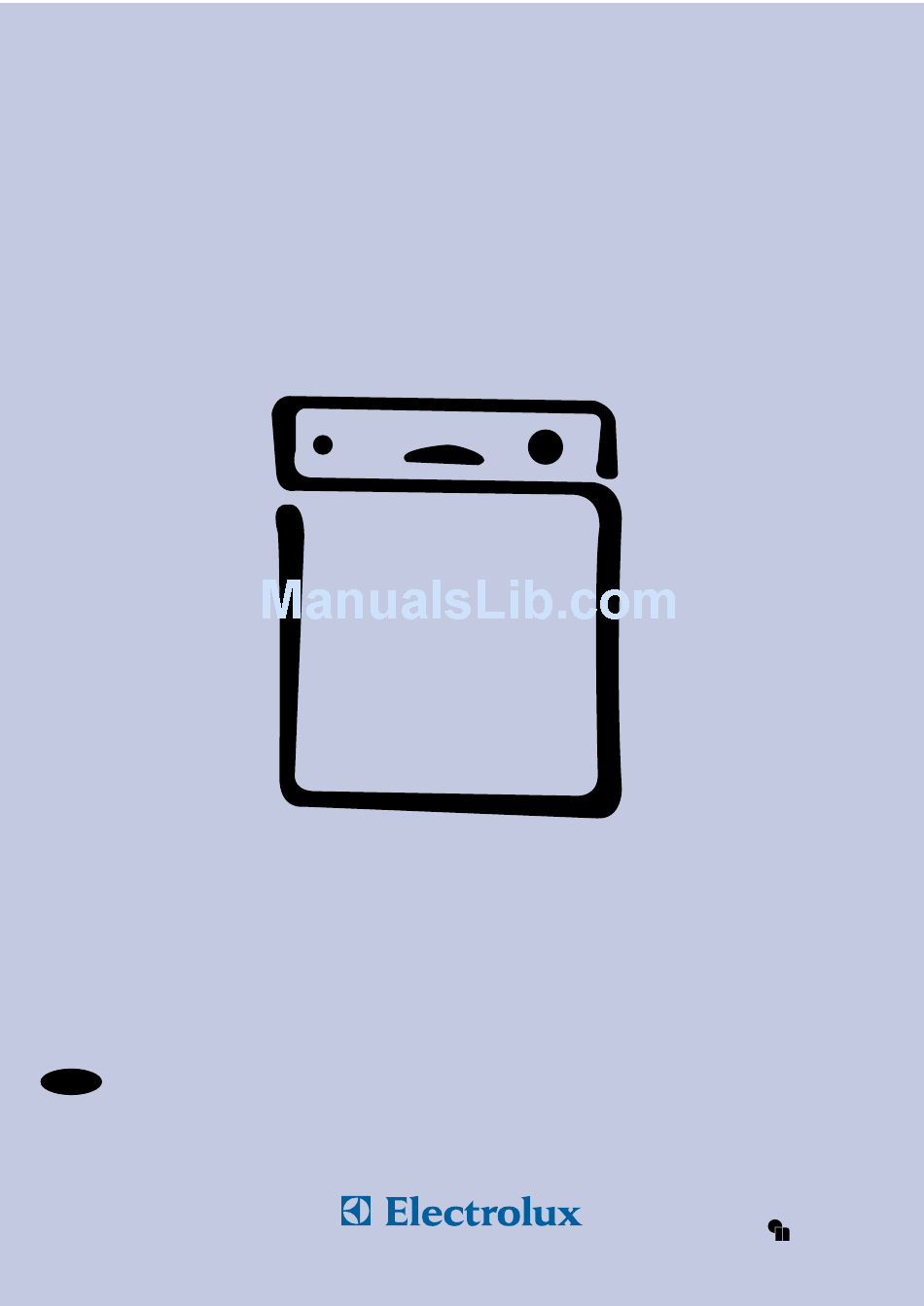

D i s h w a s h e r
Model ESI 6104
UK
Instruction book
0 09/03

Advertisement

Table of Contents
loading

  Related Manuals for Electrolux ESI 6104

  Summary of Contents for Electrolux ESI 6104

  • Page 1 D i s h w a s h e r Model ESI 6104 Instruction book 0 09/03...
  • Page 2: Table Of Contents

    - 89/336 or 3.5.89 (Electromagnetic Compatibility Directive) and subsequent modifications. Width Height Max depth Max depth with open door Information on the electrical connection is given on the rating plate on the inner edge of the dishwasher’s door. Minimum Maximum 59.6 cm 81.8 - 87.8 cm 57.5 cm 114 cm 50 kPa (0.5 bar)
  • Page 3: Safety Instructions

    Cardboard packaging is manufactured from recycled paper and should be deposited in the waste paper collection for recycling. As and when you cease to use your dishwasher and withdraw it from service, your should render it unserviceable before having it disposed of.
  • Page 4: Description Of The Appliance

    Description of the appliance Upper basket stop Water hardness switch Salt container Detergent dispenser Control panel Rating plate Rinse aid dispenser Filters Lower spray arm 10. Upper spray arm 11. Upper basket 12. Worktop The control panel Programme sequence indicator: progresses, the programme selector dial turns, to show the phase in the wash programme the appliance has reached.
  • Page 5: Prior To Using For The First Time

    5. Fill the rinse aid dispenser The water softener The dishwasher is equipped with a water softener designed to remove minerals and salts from the water supply, which would have a detrimental or adverse effect on the operation of the appliance.
  • Page 6: Rinse Aid

    Only use branded rinse aid for dishwashers. Never fill the rinse aid dispenser with any other substances (e.g. dishwasher cleaning agent, liquid detergent). This would damage the appliance. Adjusting the dose According to the finish and drying results obtained, adjust the...
  • Page 7: In Daily Use

    - Only wash stoneware in the dishwasher if it is specifically marked as being dishwasher-safe by the manufacturer. - Glazed patterns may fade if machine washed frequently - Silver and aluminium parts have a tendency to discolour during washing.
  • Page 8: The Upper Basket

    The upper basket The upper basket is designed for plates (dessert plates, saucers, dinner plates of up to 24 cm in diameter), salad bowls, cups and glasses. Arrange items on and underneath the cup racks so that water can reach all surfaces.
  • Page 9: Different Kinds Of Detergent

    65°C programmes. Combi detergents If you are using dishwasher detergent that includes the rinse aid function, this must be placed in the detergent compartment. For best results we recommend the use of Finish detergents, rinse aid and salt.
  • Page 10: Washing Programmes

    Washing programmes Programme Degree of soil type of load (1) Normal 65°C Normal soil with prewash Crockery, cutlery, pots and pans Normal 65°C Normal soil no prewash Crockery and cutlery Fresh soil (2) Quick 65°C Crockery and cutlery Any. Rinse and hold Partial load (to be completed later in the day).
  • Page 11: Operating Sequence

    Attention! Hot steam may escape when the door is opened. Open the door carefully. a) Open the dishwasher door; the programme will stop. Close the door; the programme will start from the point in which it was interrupted.
  • Page 12: Maintenance And Cleaning

    2. The dishwasher filter system comprises a coarse/fine filter (A/B), a microfilter (C) and a flat filter (D). Some dishwasher will only have a coarse filter (A), a microfilter (C) and a flat filter (D). Unlock the filter system using the handle on the microfilter, and remove.
  • Page 13: What To Do, When

    ...there are problems when operating the dishwasher The dishwasher will not start or stops during operation. All push buttons are inoperative except for the On/Off push button. Open the door and press the On/Off push button to switch the dishwasher off and carry out the following suggested corrective actions.
  • Page 14: Service And Spare Parts

    Tel: + 353 (0)1 4090751 Email: service.eid@electrolux.ie Customer Care Department For general enquiries concerning your Electrolux appliance or for further information on Electrolux products, please contact our Customer Care Department by letter or telephone at the address below or visit our website at: www.electrolux.co.uk...
  • Page 15: Guarantee Conditions

    Guarantee Conditions Standard Guarantee Conditions We, Electrolux, undertake that if within 12 months of the date of purchase this Electrolux appliance or any part thereof is proved to be defective by reason only of faulty workmanship or materials, we will, at our option repair or replace the same...
  • Page 16: Installation Instructions

    Remove all packaging before positioning the machine. If possible, position the machine next to a water tap and a drain. Building-in This dishwasher is designed to be fitted under a kitchen counter or worksurface. Attention! Carefully follow the instructions on the enclosed template for building in the dishwasher and fitting the furniture panel.
  • Page 17: Electrical Connection

    A replacement cover/carrier must be obtained from your local Service Force Centre. To isolate the dishwasher from mains, remove the mains plug. Important! The plug must still be accessible after the appliance has been installed.
  • Page 18: Hints For Test Centres

    Hints for test centres Testing in accordance with EN 60704 must be carried out with appliance fully loaded and using the test programme (see "Washing programmes" chart). Test in accordance with EN 50242 must be carried out when the salt dispenser and rinse aid container have been filled with salt and rinse aid respectively and using the test programme (see "Washing programmes"...
  • Page 20 The Electrolux Group. The world’s No.1 choice. The Electrolux Group is the world’s largest producer of powered appliances for kitchen, cleaning and outdoor use. More than 55 million Electrolux Group products (such as refrigerators, cookers, vacuum cleaners, chain saws and lawn mowers) are sold each year to a value of approx.
