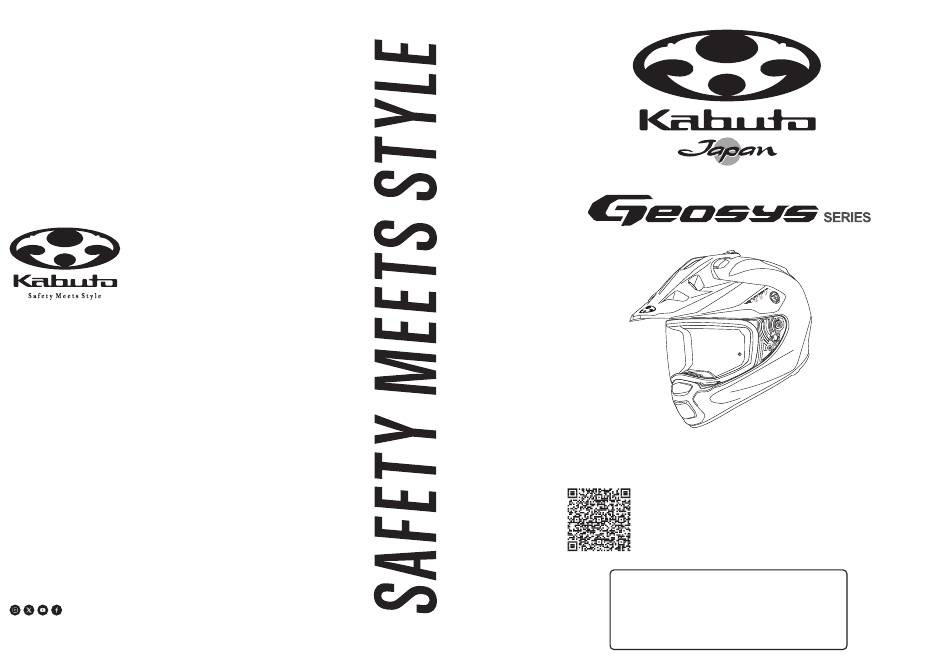

Page 1
Instruction Manual For full descriptions of this product and other languages. https://www.ogkkabuto.co.jp/motorcycle/etc/e2206_manu.html OGK KABUTO CO., LTD. 6-3-4, NAGATANISHI, HIGASHIOSAKA, OSAKA, 577-0016, JAPAN. BEFORE USE TEL:+81-6-6748-7806 FAX:+81-6-6747-8023 Kabuto Global Web Site PRIOR TO USE, READ THIS INSTRUCTION www.ogkkabuto.com MANUAL THOROUGHLY AND KEEP THIS FOR FUTURE REFERENCE No.E-GEOSYS-2024-MAY/QD...
Page 2
Part Descriptions Instruction Manual • Table of Contents Table of Contents ..P-1 Part Descriptions ..P-2 Head Ventilation Shell NOTES BEFORE USE ..P-3 Rear Ventilation –Exterior– Ventilation ..P-6 Visor(Peak) Wake Stabilizer ..P-8 PATENTED Visor(peak) ..P-9 Shield ..
Page 3
NOTES BEFORE USE Do not paint or apply solvent Thank you very much for purchasing the Kabuto helmet. Any paint, glue, adhesive stickers, etc. (or the use of detergents and solvents other than those This Instruction Manual describes proper handling, various functions, and removal prescribed) may not only reduce the original protective performance of the helmet considerably, but and replacement of each part of this helmet.
Page 4
–Exterior– Ventilations Ventilation System Rear Ventilation Head Ventilation Outer Air Visor(Peak) Humid Air Outer Air Humid Air Inside Helmet Shell Shield Liner Chin Ventilation – Head Ventilation – To Open To Close Visor (Peak) Visor (Peak) Air-duct Air-duct...
Page 5
– Integrated Wake Stabilizer – PATENTED Wake Stabilizer , the KABUTO’s unique system, is developed by analyzing the PATENTED results of wind tunnel experiments at several angles. This unique system controls the airflow around the helmet and reduces loads while riding.
Page 6
Visor(peak) – Removal – – Angle Adjustment – The visor(peak) can be removed by removing all screws. Loosen the center screw and slide Screws Screws *Screws can be turned with a coin, etc. the visor(peak) to allow 5-level adjustment. Collar Collar (for center) (for center)
Page 7
Shield CAUTION! ●Do not push or twist the shield by force when installing it. Such action may – Removal – damage the shield and ratchet system. Fully open the shield (Fig. 1) WARNING! Pull the red stopper down.Pull the shield in the sense of the arrow.
Page 8
< Shield Ratchets > Shield Screw Ratchet Shield Ratchet appears when the shield is completely removed. – Removal – Shield Ratchet Screw Shield Unscrew the Shield Ratchet Ratchet Screws with a proper size phillips screwdriver. Screw-inserting hole Screw-inserting hole Fig. 2 Fig.
Page 9
Section view Make sure the Pinlock Original Insert Lens ® of shield: to be fit inside the chase. Protective film Correct Wrong Pinlock Original Insert Lens has international patent ® Silicon seal protection and is a registered brand name of Pinlock systems Shield *with no space B.V.
Page 10
CAUTION! –Interior– •Flex the shield properly when fitting the Pinlock Original Insert Lens. ® Otherwise, eccentric pins may be damaged. Chinstrap •Clean the inside of the shield before applying the Pinlock Original Insert Lens. ® Pay attention not to touch the anti-fogging part of the silicon seal on the When the chinstrap covers are removable and washable.
Page 11
Cheek Pads Snap – Removal – < Fastening Chinstraps > Hold the cheek pad firmly, remove the three Let the strap go through the D-rings, and pull the strap to the direction of the arrow snaps on the back side of the cheek pad, and and fasten the snaps.
Page 12
CAUTION! Cheek Pad Snaps (Total 3 place) Snaps (Total 3 place) Do not remove the snaps and interlinings forcibly. Pull them out slowly and gently. Otherwise the linings and other parts may be damaged. Plug in Interlining Front – Attachment – Insert the core material along Insert the core material along Cheek Pad...
Page 13
Wind Shutter Compatibility of the Inner Pad, the Cheek Pads and the Chinstrap covers NOTE The wind shutter is the standard accessary of Geosys. It designed to reduce the roll-in Inner pad ■ wind from chin area during riding. Shell size Pad size Thickness Compatibility...
Page 14
CAUTION! – Attachment – ●Install the Wind Shutter securely. Incomplete installation may cause the drop of the 1.Referring the (Fig.1) to distinguish the Wind Shutter while riding. Hook outside and inside. ●Do not use an adhesive agent or the like but install the Wind Shutter with the procedure given above.
Page 15
Contact the address given below for inquiries on the products and request for repair Request for repair ■ Contact a sales store or the authorized Kabuto dealers for request of repair. ■ Before sending back the helmet to us, contact the dealers for detailed information and report on repair in advance.
Page 16
GEOSYS Series Parts for Replacement ●The following parts except some are repaired only at the Kabuto dealers and are not available for direct sales to users in general. ●These parts are repaired at cost to the user except damage attributable to a defect in material and workmanship of Kabuto helmets.
