FAIR PRICE BONNIE BRS PEDESTAL Assembly Manual

Download this manual

This design and instruction booklet is subject to copyright.

Included Hardware

8x30mm Dowel

8x25mm Screw

Tools Required

Customer Help Line:

+27 087 740 2101

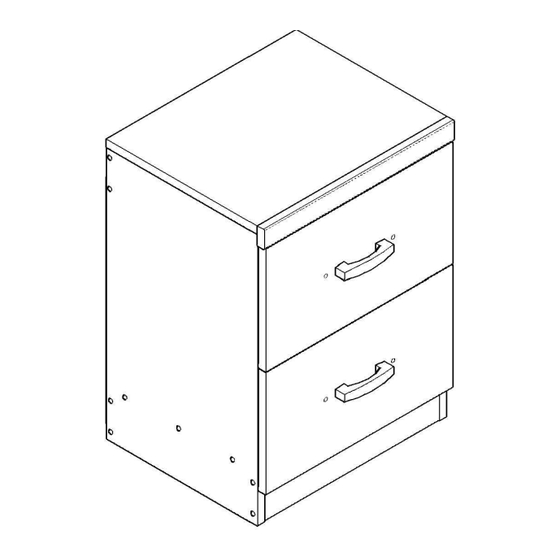

BONNIE BRS PEDESTAL

ASSEMBLY MANUAL

(Please note there are other hardware not represented but will be found in the box)

Confirmat Screw

8x30mm Screw

Allen Key

M4-size

are made using manufacturer authorised parts.

ESTIMATED ASSEMBLE TIME: 1h:45min

www.Fairprice.co.za

PIN & CAM

8x45mm Screw

NOTE

CAUTION

WARNING

1/4

Plastic Runner

Panel Pin

Need help?

Do you have a question about the BONNIE BRS PEDESTAL and is the answer not in the manual?

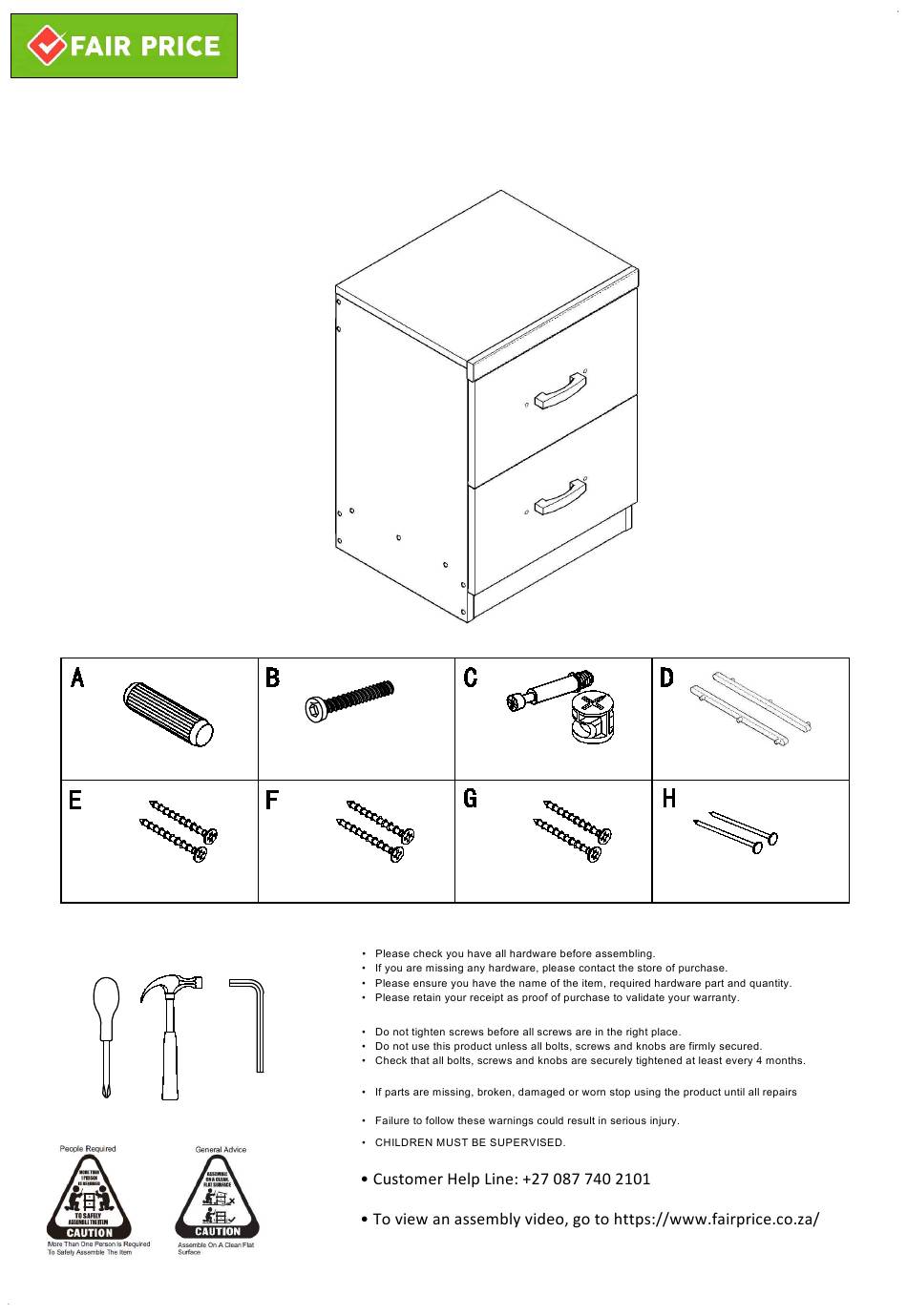

Page 1 Customer Help Line: +27 087 740 2101 This design and instruction booklet is subject to copyright. www.Fairprice.co.za BONNIE BRS PEDESTAL ASSEMBLY MANUAL Included Hardware (Please note there are other hardware not represented but will be found in the box) 8x30mm Dowel Confirmat Screw PIN &...
Page 2 Customer Help Line: +27 087 740 2101 This design and instruction booklet is subject to copyright. www.Fairprice.co.za PARTS LIST PARTS LIST PART NAME QUANTITY WIDTH DEPTH SIDE BOTTOM STRETCHER PLINTH DRAWER FRONT DRAWER BOX SIDE DRAWER BOX FRONT DRAWER BOX BOTTOM BACKING...
Page 3 Customer Help Line: +27 087 740 2101 This design and instruction booklet is subject to copyright. www.Fairprice.co.za ASSEMBLY IDENTIFY THE TOP (PART 1), WITH A SCREW DRIVER FASTEN THE 4 PINS (c) AND ON THE TWO PRE- DRILLED HOLES INSERT 2 DOWELS BY HAND. WITH THE TOP AND BOTTOM PREPARED IDENTIFY THE SIDES (PART 2) AND ATTACH THE TWO TOGETHER GUIDED BY THE PINS AND DOWELS ON THE TOP, INSERT THE CAM ON THE PROVIDED HOLES ON THE SIDE (PART...
Page 4 Customer Help Line: +27 087 740 2101 This design and instruction booklet is subject to copyright. www.Fairprice.co.za ASSEMBLY IDENTIFY THE DRAWER FRONT (PART 6) AND INSERT 8X30mm DOWELS WHICH WILL HELP POSITION THE DRAWER FRONT (PART 6) IN PLACE AND WITH A SCREW DRIVER AND 8x45mm SCREW FASTEN THE DRAWER FRONT ON TO THE DRAWER BOX FRONT (PART 8) AND THE HANDLE "PLEASE DO THIS STEP FOR THE OTHER 3 DRAWERS".
