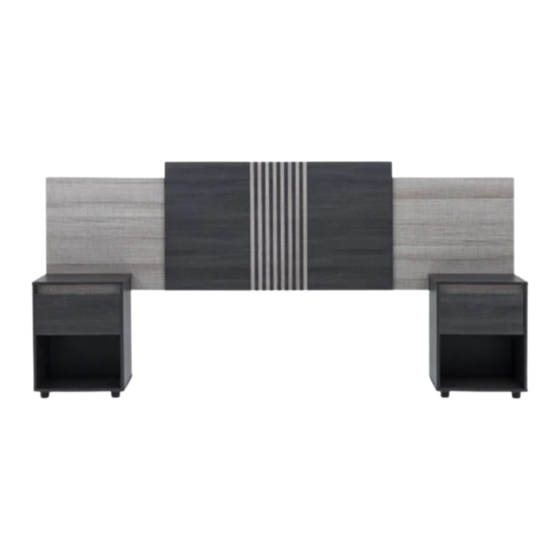

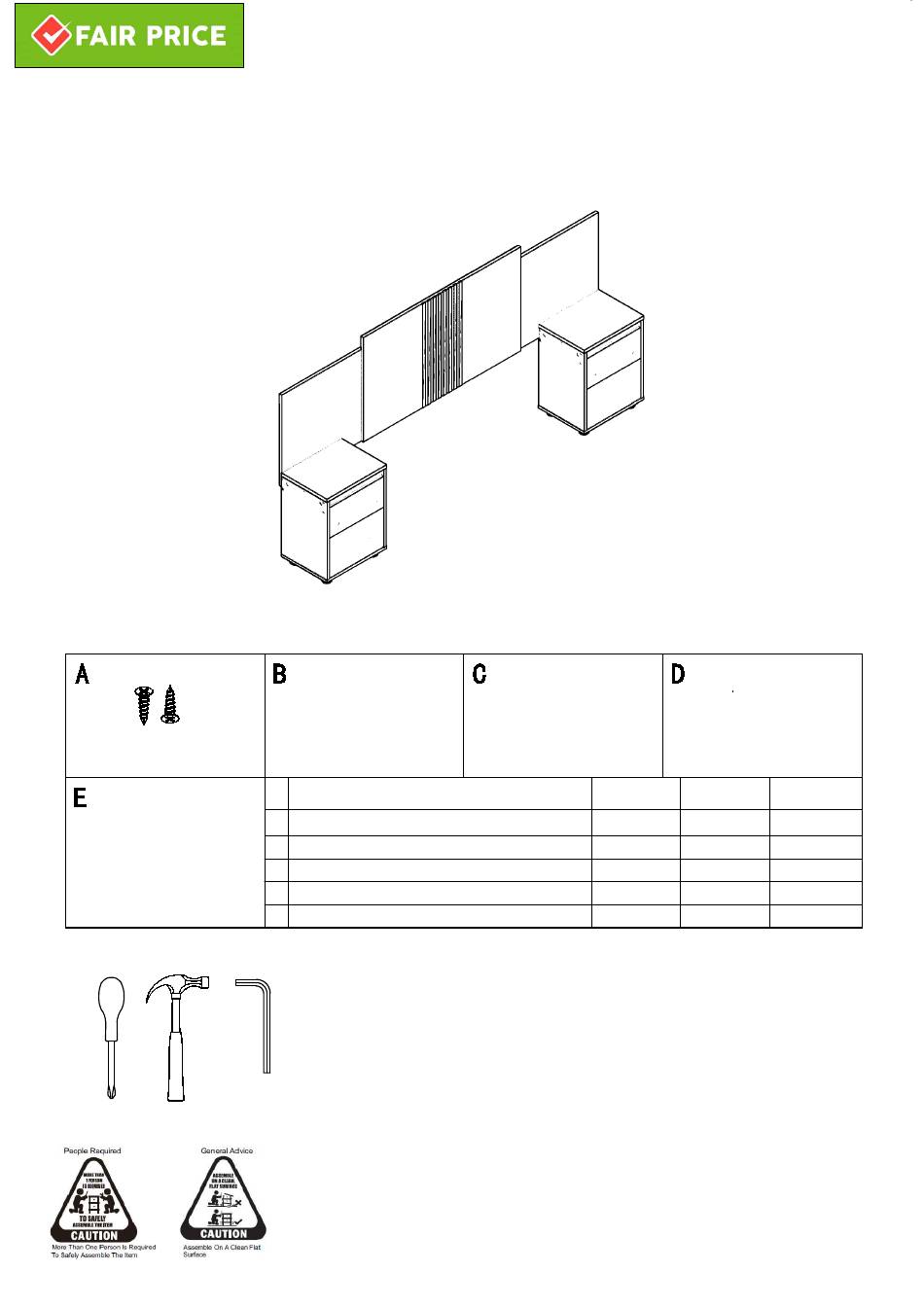

Customer Help Line: +27 087 740 2101 This design and instruction booklet is subject to copyright.www.Fairprice.co.za BRAZIL BRS HEADBOARD ASSEMBLY MANUAL Included Hardware 8X30mm SCREW PART NAME QUANTITY WIDTH DEPTH FRONT PANEL 1200 BACK PANEL NOTE Tools Required • Please check you have all hardware before assembling.
Page 2
Customer Help Line: +27 087 740 2101 This design and instruction booklet is subject to copyright.www.Fairprice.co.za ASSEMBLY ON A CLEAN SURFACE FLIP THE FRONT PANEL (PART 1) THEN WITH A MEASURING TAPE DRAW A LINE 10cm/100mm FROM THE SHORT SIDE OF THE PANEL AS SHOWN PLEASE NOTE THIS IS WHERE YOU WILL PLACE AND ATTACH THE BACK PANEL (PART 2).
Page 3
Customer Help Line: +27 087 740 2101 This design and instruction booklet is subject to copyright.www.Fairprice.co.za BRAZIL PEDESTAL ASSEMBLY MANUAL Included Hardware NOTE Tools Required • Please check you have all hardware before assembling. • If you are missing any hardware, please contact the store of purchase. •...
Page 4
Customer Help Line: +27 087 740 2101 This design and instruction booklet is subject to copyright.www.Fairprice.co.za PARTS LIST PARTS LIST PART NAME QUANTITY WIDTH DEPTH SIDE BOTTOM DRAWER FRONT DRAWER BOX FRONT/ BACK DRAWER BOX SIDE DRAWER BOX BOTTOM BACK STRETCHER BACK FRONT STRETCHER...
Page 5
Customer Help Line: +27 087 740 2101 This design and instruction booklet is subject to copyright.www.Fairprice.co.za ASSEMBLY IDENTIFY THE TOP (PART 1) AND WITH A SCREW DRIVER INSERT 4 PINS (c), BY HAND INSERT TWO 8X30mm POSITIONING DOWELS . IDENTIFY THE SIDES (PART 2) WHICH HAS A LEFT AND RIGHT AND CAREFULLY SLIDE THEM IN THE PINS AND DOWELS, WITH A SCREW DRIVER INSERT THE CAM (c), WITH A TWIST LOCK THE SIDE (PART 2) ON TO THE TOP (PART 1) "REPEAT THIS ON THE OTHER SIDE".
Page 6
Customer Help Line: +27 087 740 2101 This design and instruction booklet is subject to copyright.www.Fairprice.co.za ASSEMBLY SLIDE IN THE 3mm DRAWER BOTTOM IN BETWEEN THE "U" SHAPED UNIT AND WITH A WITH A SCREW DRIVER AND 8x16mm SCREW FASTEN ON TO THE SCREW DRIVER AND 8x45mm SCREW FASTEN THE DRAWER SIDE (PART 6) THEN THE COMPLETE DRAWER BOX RUNNERS MALE (h) ON THE DRAWER SIDES DRAWER BOX IS COMPLETE DO THIS FOR THE OTHER DRAWER BOX.
