This design and instruction booklet is subject to copyright.

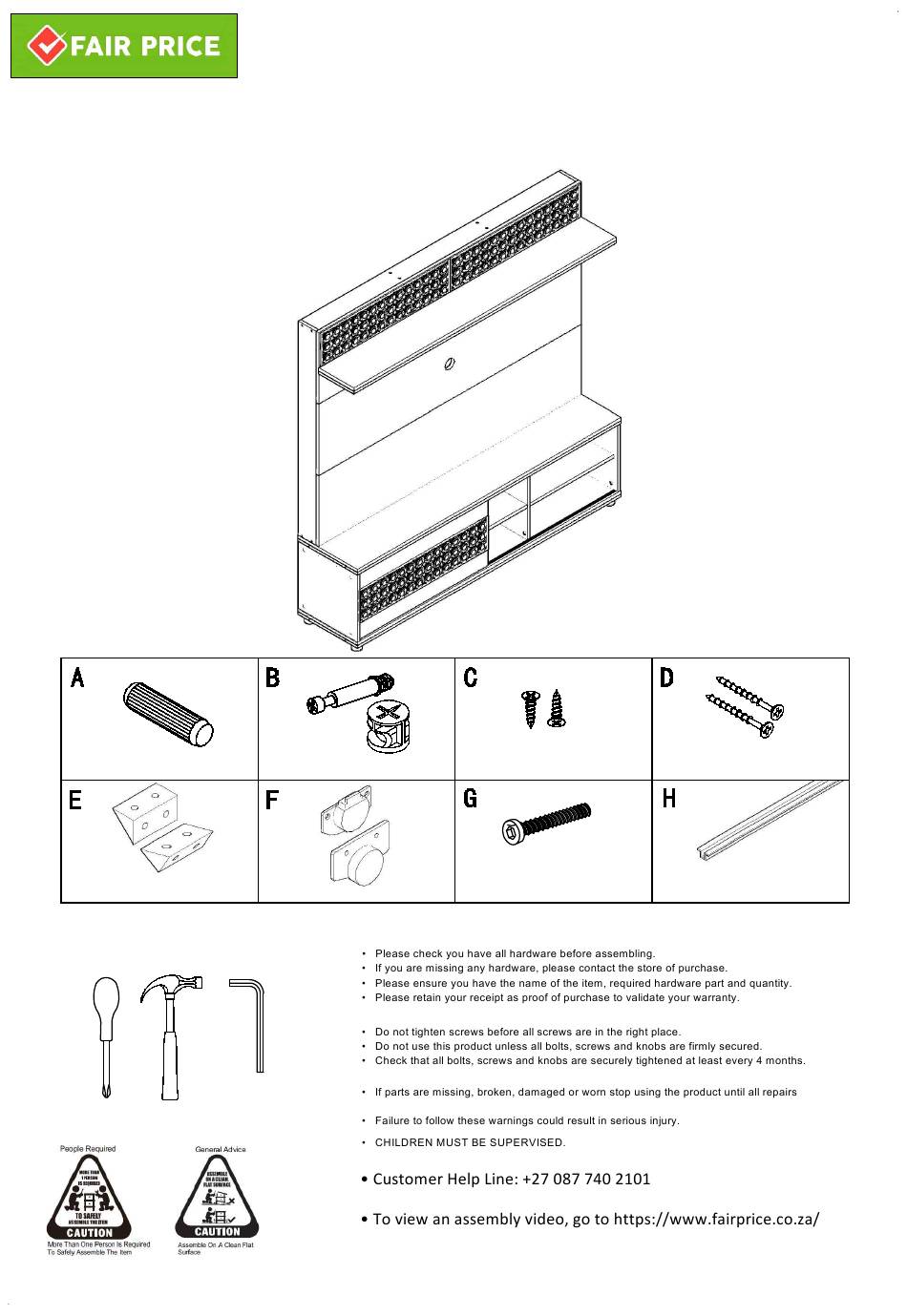

Included Hardware
44
DOWEL 8X30mm
30
CORNER BRACKETS
Tools Required
Customer Help Line:
+27 087 740 2101

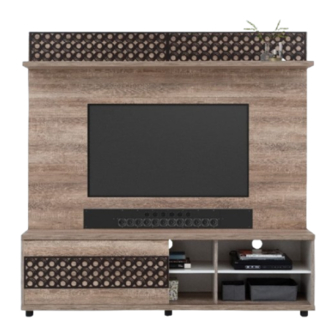

NOVELLI TV UNIT
ASSEMBLY MANUAL
16
CAM & PIN
2
SLIDING WHEELS
Allen Key
M4-size
are made using manufacturer authorised parts.
ESTIMATED ASSEMBLE TIME: 1h:30min
www.Fairprice.co.za
128
8X16mm SCREW
30
CONFIRMAT SCREW
NOTE
CAUTION
WARNING
1/4
12
8X45mm SCREW
2
SLIDING TRACK
Advertisement
Related Manuals for FAIR PRICE NOVELLI
Summary of Contents for FAIR PRICE NOVELLI
- Page 1 Customer Help Line: +27 087 740 2101 This design and instruction booklet is subject to copyright. www.Fairprice.co.za NOVELLI TV UNIT ASSEMBLY MANUAL Included Hardware DOWEL 8X30mm CAM & PIN 8X16mm SCREW 8X45mm SCREW CORNER BRACKETS SLIDING WHEELS CONFIRMAT SCREW SLIDING TRACK...
- Page 2 Customer Help Line: +27 087 740 2101 This design and instruction booklet is subject to copyright. www.Fairprice.co.za PARTS LIST PARTS LIST PART NAME QUANTITY WIDTH DEPTH TOP - STRETCHER 1753 1753 BOTTOM -STRETCHER 1260 SIDES - STRETCHER INSIDE - STRETCHER 1260 TOP FACE 1785...
- Page 3 Customer Help Line: +27 087 740 2101 This design and instruction booklet is subject to copyright. www.Fairprice.co.za ASSEMBLY TOP ASSEMBLY ON A FLAT SURFACE IDENTIFY THE TOP (PART 1) ,BOTTOM (PART 2) AND SIDES IDENTIFY THE INSIDE - STRETCHER (PART 4) THEN INSERT IT IN BETWEEN THE TOP AND BOTTOM, THEN ALIGN THE DRILLING OF THE TOP AND BOTTOM WITH THAT OF THE STRETCHER (PART 3) THEN POSITION THEM AS SEEN THEN WITH AN ALLEN KEY AND CONFIRMAT SCREW FASTEN THE 4 PARTS TOGETHER.
- Page 4 Customer Help Line: +27 087 740 2101 This design and instruction booklet is subject to copyright. www.Fairprice.co.za ASSEMBLY IDENTIFY THE TOP (PART 9) AND JOIN IT WITH THE SUB ASSEMBLY BY FLIP THE UNIT UP SIDE DOWN AND WITH PANEL PIN NAILS AND A HAMMER FIX THE BACKING ON THE BACK OF THE UNIT MAKE SURE THE BACK WITH THE INSERTING THE PINS ONTO THE DRILLED HOLES ON THE SIDES AND DIVISIONS THEN BY HAND INSERT THE CAM TWIST WITH A SCREW DRIVER TO FASTEN THE...
