BURSA 4DR ROBE
ASSEMBLY MANUAL
16
Confirmat Screw
12
8x30mm Screw
Allen Key
M4-size
are made using manufacturer authorised parts.
ESTIMATED ASSEMBLE TIME: 1h:30min
www.Fairprice.co.za
4
Handle
4
Bursa Leg
NOTE
CAUTION
WARNING
1/4
16
35mm POT HINGE
38
Panel Pin
Advertisement
Table of Contents
Related Manuals for FAIR PRICE BURSA
Summary of Contents for FAIR PRICE BURSA

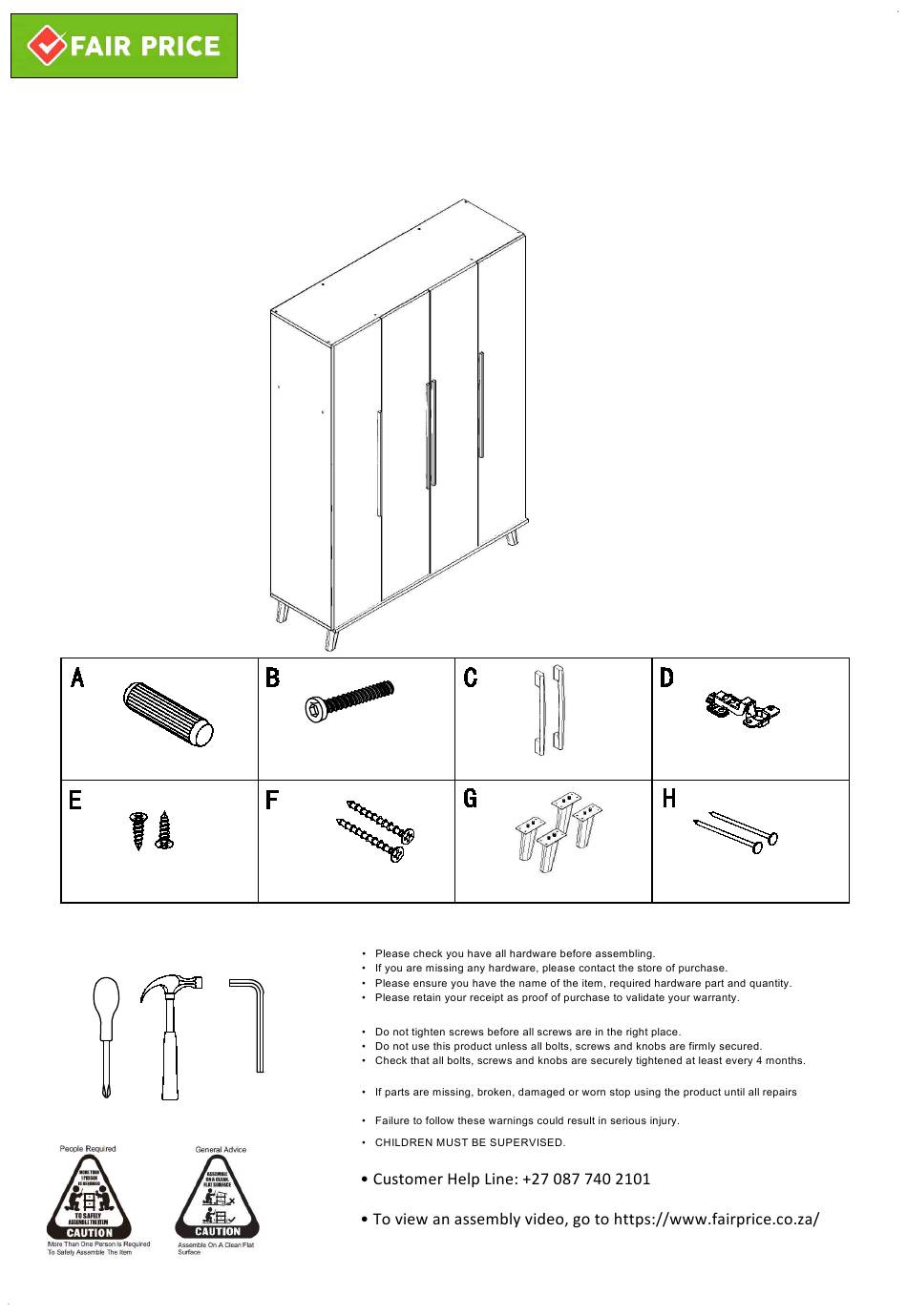

- Page 1 Customer Help Line: +27 087 740 2101 This design and instruction booklet is subject to copyright. www.Fairprice.co.za BURSA 4DR ROBE ASSEMBLY MANUAL Included Hardware 8x30mm Dowel Confirmat Screw Handle 35mm POT HINGE Bursa Leg Panel Pin 8x16mm Screw 8x30mm Screw...
- Page 2 Customer Help Line: +27 087 740 2101 This design and instruction booklet is subject to copyright. www.Fairprice.co.za PARTS LIST PARTS LIST PART NAME QUANTITY WIDTH DEPTH 1404 1768 SIDE 1404 BOTTOM DIVISION 1768 SHELF 1 SHELF 2 DOOR 1796 1796 BACKING...
- Page 3 Customer Help Line: +27 087 740 2101 This design and instruction booklet is subject to copyright. www.Fairprice.co.za ASSEMBLY IDENTIFY THE BOTTOM (PART 3), SIDES (PART 2) AND DIVISION (PART 4) THEN INSERT IDENTIFY THE TOP (PART 1) AND WITH AN ALLEN KEY AND CONFIRMAT SCREW ALL THE DOWELS AND WITH AN ALLEN KEY AND CONFIRMAT SCREW FASTEN THE PARTS FASTEN THE TOP ONTO THE SIDES AND DIVISION.
- Page 4 Customer Help Line: +27 087 740 2101 This design and instruction booklet is subject to copyright. www.Fairprice.co.za ASSEMBLY Hinge adjustment IDENTIFY THE DOOR (PART 7) AND CAREFULLY ALIGN THE HINGES STRAIGHT, WITH A SCREW DRIVER AND 8X16mm SCREW FASTEN THE HINGES ONTO THE SIDES (PART 2) ONCE DONE FASTEN THE HANDLES ONTO THE DOOR (PART 7) WITH 8X30mm SCREW.
