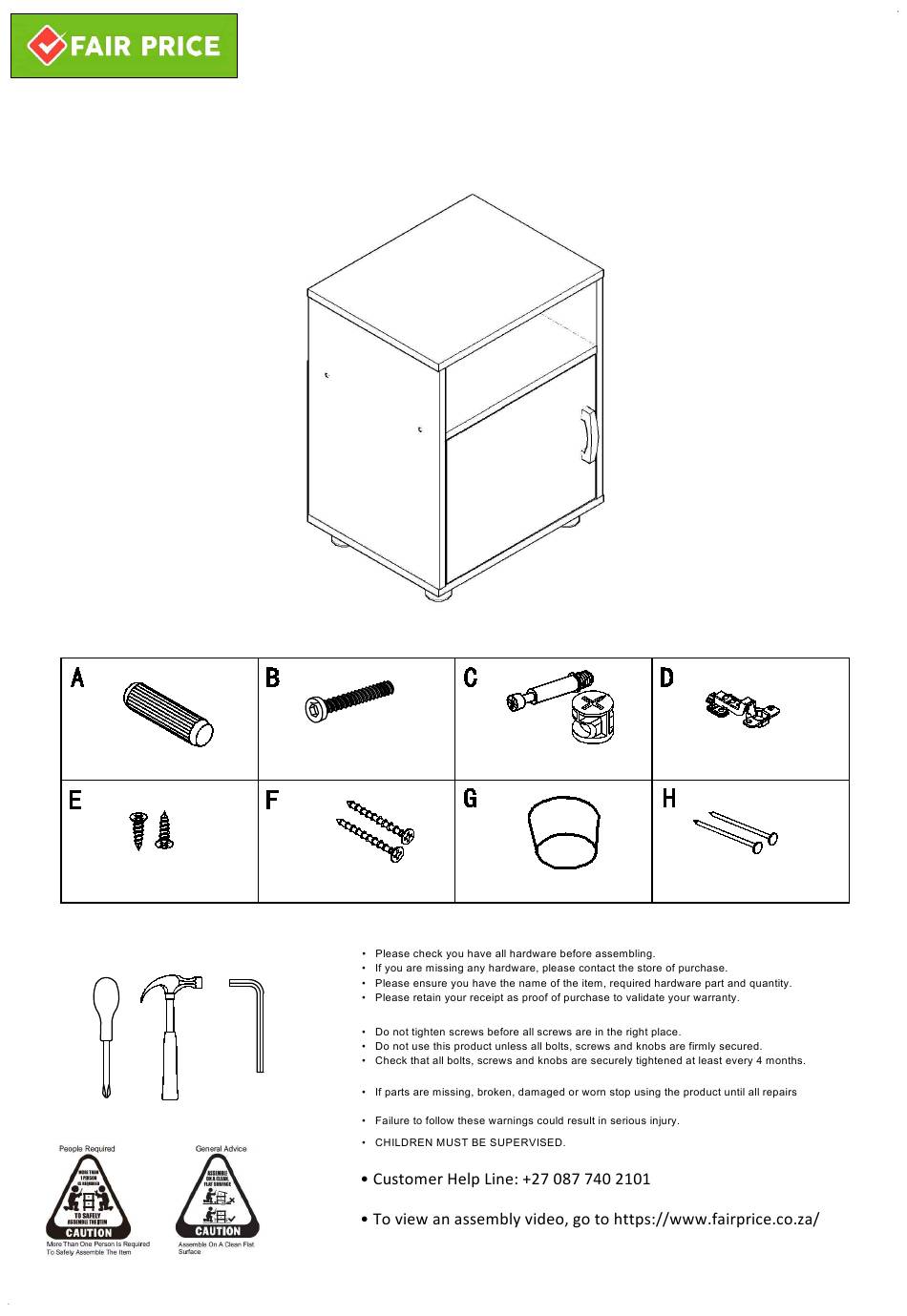

This design and instruction booklet is subject to copyright. www.Fairprice.co.za
Included Hardware
6
8x30mm Dowel
12
8x16mm Screw
Tools Required
Customer Help Line: +27 087 740 2101

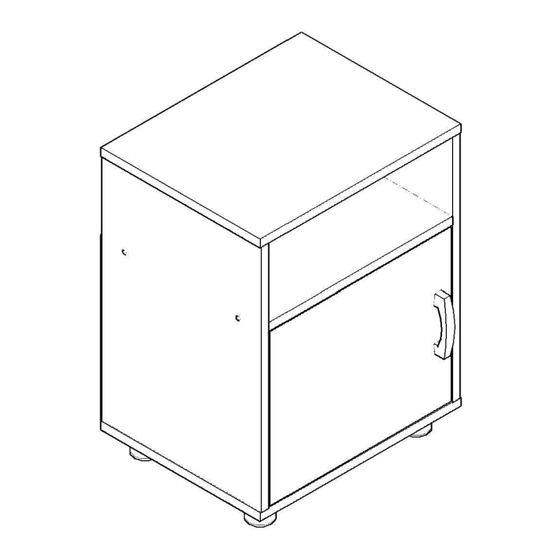

APRIL PEDESTAL
ASSEMBLY MANUAL
8
Confirmat Screw
2
8x30mm Screw
Allen Key
M4-size
are made using manufacturer authorised parts.
ESTIMATED ASSEMBLE TIME: 1h:30min
8
PIN & CAM
4
45mm Dome Leg
NOTE
CAUTION
WARNING
1/4
2
35mm POT HINGE
16
Panel Pin
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for FAIR PRICE APRIL
Summary of Contents for FAIR PRICE APRIL
- Page 1 Customer Help Line: +27 087 740 2101 This design and instruction booklet is subject to copyright. www.Fairprice.co.za APRIL PEDESTAL ASSEMBLY MANUAL Included Hardware 8x30mm Dowel Confirmat Screw PIN & CAM 35mm POT HINGE 45mm Dome Leg Panel Pin 8x16mm Screw...
- Page 2 Customer Help Line: +27 087 740 2101 This design and instruction booklet is subject to copyright. www.Fairprice.co.za PARTS LIST PARTS LIST PART NAME QUANTITY WIDTH DEPTH SIDE SHELF BOTTOM DOOR BACKING...
- Page 3 Customer Help Line: +27 087 740 2101 This design and instruction booklet is subject to copyright. www.Fairprice.co.za ASSEMBLY IDENTIFY THE TOP (PART 1) AND WITH A SCREW DRIVER INSERT 4 PINS (c), BY HAND INSERT TWO 8X30mm POSITIONING DOWELS . IDENTIFY THE SIDES (PART 2) WHICH HAVE A LEFT AND RIGHT AND CAREFULLY SLIDE THEM IN THE PINS AND DOWELS, WITH A SCREW DRIVER INSERT THE CAM (c) WITH A TWIST LOCK THE SIDE (PART 2) ON TO...
- Page 4 Customer Help Line: +27 087 740 2101 This design and instruction booklet is subject to copyright. www.Fairprice.co.za ASSEMBLY IDENTIFY THE DOOR (PART 5) AND CAREFULLY ALIGN THE HINGES STRAIGHT, WITH A SCREW DRIVER AND 8X16mm SCREW (e) FASTEN THE HINGES ON TO THE DOOR (PART 5) ONCE DONE FASTEN THE HANDLES (i) ON TO THE DOOR (PART 5) WITH 8X30mm SCREW (f).
