Included Hardware
8x30mm Dowel
BRACKET
Tools Required
Customer Help Line: +27 087 740 2101
BRAZILIA
TV UNIT
ASSEMBLY MANUAL
CAM & PIN
NYLON WHEEL
Allen Key
M4-size
are made using manufacturer authorised parts.
ESTIMATED ASSEMBLE TIME: 1h:30min
8x16mm Screw
Confirmat Screw
NOTE
CAUTION
WARNING
1/4
8X25mm SCREW
SLIDING TRACK
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for FAIR PRICE BRAZILIA
Summary of Contents for FAIR PRICE BRAZILIA

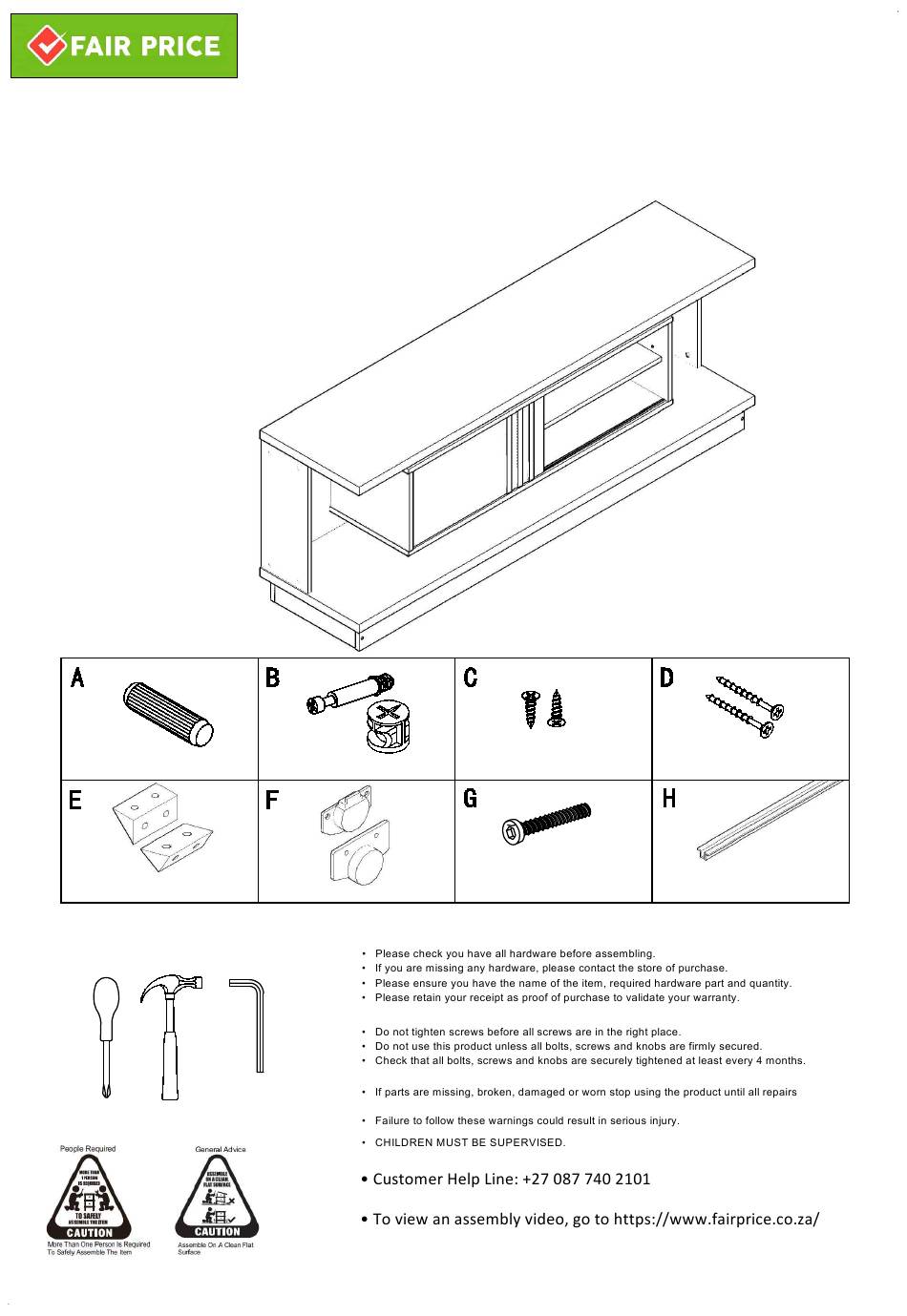

- Page 1 Customer Help Line: +27 087 740 2101 This design and instruction booklet is subject to copyright. www.Fairprice.co.za BRAZILIA TV UNIT ASSEMBLY MANUAL Included Hardware 8x16mm Screw 8x30mm Dowel CAM & PIN 8X25mm SCREW Confirmat Screw SLIDING TRACK NYLON WHEEL BRACKET...
- Page 2 Customer Help Line: +27 087 740 2101 This design and instruction booklet is subject to copyright. www.Fairprice.co.za PARTS LIST PARTS LIST PART NAME QUANTITY WIDTH DEPTH 1800 BOTTOM 1800 SIDES 1757 BACK 1200 INSIDE TOP INSIDE BOTTOM 1200 INSIDE SIDES INSIDE DIVIDER INSIDE SHELF INSIDE FRONTS...
- Page 3 Customer Help Line: +27 087 740 2101 This design and instruction booklet is subject to copyright. www.Fairprice.co.za ASSEMBLY WITH A SCREW DRIVER AND 8x16mm SCREWS FASTEN ON THE TOP INSIDE OF THE PLINTH IDENTIFY THE FRONT PLINTH (PART 11) AND THE SIDE PLINTH (PART 12), WITH 50mm CONFIRMAT SCREWS AND ALLEN KEY FASTEN TOGETHER BOTH PARTS TO FORM AN "L"...
- Page 4 Customer Help Line: +27 087 740 2101 This design and instruction booklet is subject to copyright. www.Fairprice.co.za ASSEMBLY INSIDE THE INSIDE UNIT ON THE BOTTOM AND TOP FASTEN THE INSIDE FRONTS WITH AN WITH AN ALLEN KEY AND 50mm CONFRIMAT SCREW FASTEN THE INSIDE UNIT ON TO THE ALLEN KEY AND 50mm CONFIRMAT SCREW THEN POSITION THE UNIT ON THE BOTTOM BACK (PART 4) PRE DRILLED HOLES ON BOTH BACK AND INSIDE UNIT WILL GUIDE TO AND ALIGN THE HOLES WITH THE BACK (PART 4).
