ITEM
QUANTITY
1
1
2
1
3
1
4
1
5
2
6
2
7
27
8
27
9
2
10
2
11
2
ANTI-SEIZE LUBRICANT MUST BE USED ON ALL STAINLESS STEEL FASTENERS TO PREVENT THREAD DAMAGE AND GALLING
ITEM 1
Westin Automotive Products, Inc.
320 W. Covina Blvd
San Dimas, Ca. 91773
P.N.: 75-1500035-RevA
ECO #: W22-0087
INSTALLATION INSTRUCTIONS
Side Ladder Mesa Roof Rack
2019-2023 Mercedes-Benz Sprinter High Roof
CONTENT
DESCRIPTION

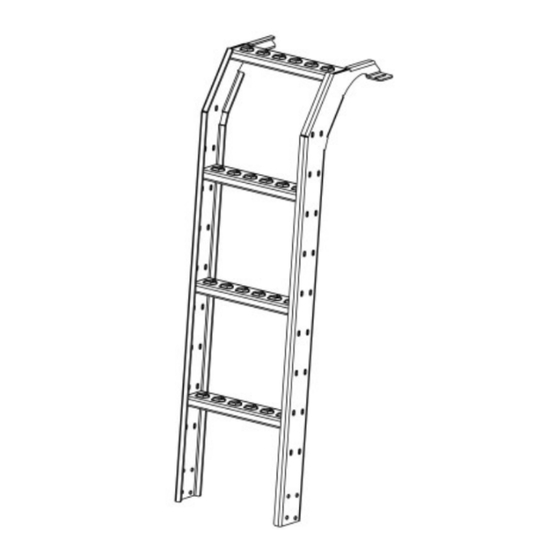

TOP LADDER
BOTTOM LADDER
STEP MOUNT
STEP MOUNT BOTTOM BRACKET
LINK BRACKETS
M8 SQUARE NUT PLATE
M6 SQUARE NECK CARRIAGE BOLT
M6 SERRATE FLANGE HEX NUT
M8 BUTTON HEAD SCREW
M8 FLAT WASHER
M8 SPLIT LOCK WASHER
ITEM 3
ITEM 2
1
APPLICATION:
PART NUMBER:
15-00035
ITEM 6
Thank you for choosing Westin products
for additional installation assistance please call
Customer Service (800) 793-7846
www.westinautomotive.com
TOOLS NEEDED
RATCHET
TORQUE WRENCH
10MM SOCKET
10MM WRENCH
13MM SOCKET
13MM WRENCH
DRILL
DRILL BITS
ALLEN WRENCH
ITEM 4
ITEM 5
DATE: 03/28/23
Advertisement
Related Manuals for Westin 15-00035
Summary of Contents for Westin 15-00035
- Page 1 ITEM 3 ITEM 6 ITEM 4 ITEM 1 ITEM 2 ITEM 5 Thank you for choosing Westin products Westin Automotive Products, Inc. 320 W. Covina Blvd for additional installation assistance please call San Dimas, Ca. 91773 Customer Service (800) 793-7846 www.westinautomotive.com...
- Page 2 (Item 1) and the Bottom Ladder (Item 2) with the Link Bracket (Item 5) provided. See Figure 3 for reference. Figure 1 Figure 2 Figure 3 Thank you for choosing Westin products Westin Automotive Products, Inc. 320 W. Covina Blvd for additional installation assistance please call San Dimas, Ca.
- Page 3 M8 hardware to 15-18 ft-lbs. & M6 hardware to 5-7 ft-lbs. Figure 4 Figure 5 Figure 6 Thank you for choosing Westin products Westin Automotive Products, Inc. 320 W. Covina Blvd for additional installation assistance please call San Dimas, Ca.
- Page 4 STAINLESS STEEL PRODUCTS CAN BE CLEANED WITH MILD SOAP AND WATER. STAINLESS STEEL POLISH SHOULD BE USED TO POLISH SMALL SCRATCHES. • GLOSS BLACK FINISHES SHOULD BE CLEANED WITH MILD SOAP AND WATER. Thank you for choosing Westin products Westin Automotive Products, Inc. 320 W. Covina Blvd for additional installation assistance please call San Dimas, Ca.
- Page 5 AND SAFETY. DRILLING: Most Westin products do not require drilling for installation. If drilling is defined as required, use caution when drilling a vehicle. FAILURE TO REVIEW AN AREA TO BE DRILLED MAY RESULT IN PERSONAL INJURY AND/OR INJURY TO OTHERS AS WELL AS VEHICLE DAMAGE.
