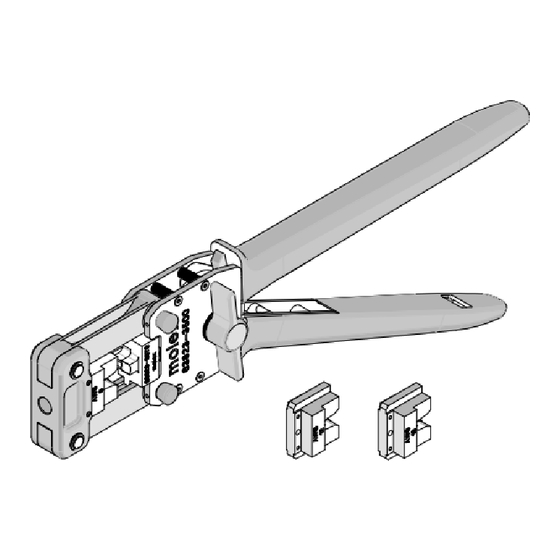

Hand Crimp Tool for 4.5 Dia. Ring Terminals
High Force
Hand Tool
FEATURES
A full cycle ratcheting hand tool ensures complete crimps
%
Ergonomically designed soft handles
%
Precisely designed crimping profiles with simple contact positioning
%
Easy handling due to outstanding force ratio
%
SCOPE
Products: 4.5 Diameter Ring Terminals: 8-12 AWG wires.
Terminal Series No.
35750
To achieve optimum IPC/WHMA-A620 Class 2 insulation crimps, use this insulation OD range: 4.50-5.40mm (.177-.213 inch).
DEFINITION OF TERMS
BELL MOUTH
►CUT-OFF
TAB (REF)
►Customer should cut off the terminal from the reel to the minimum cut-off tab or flush with the terminal on both
insulation side and ring side.

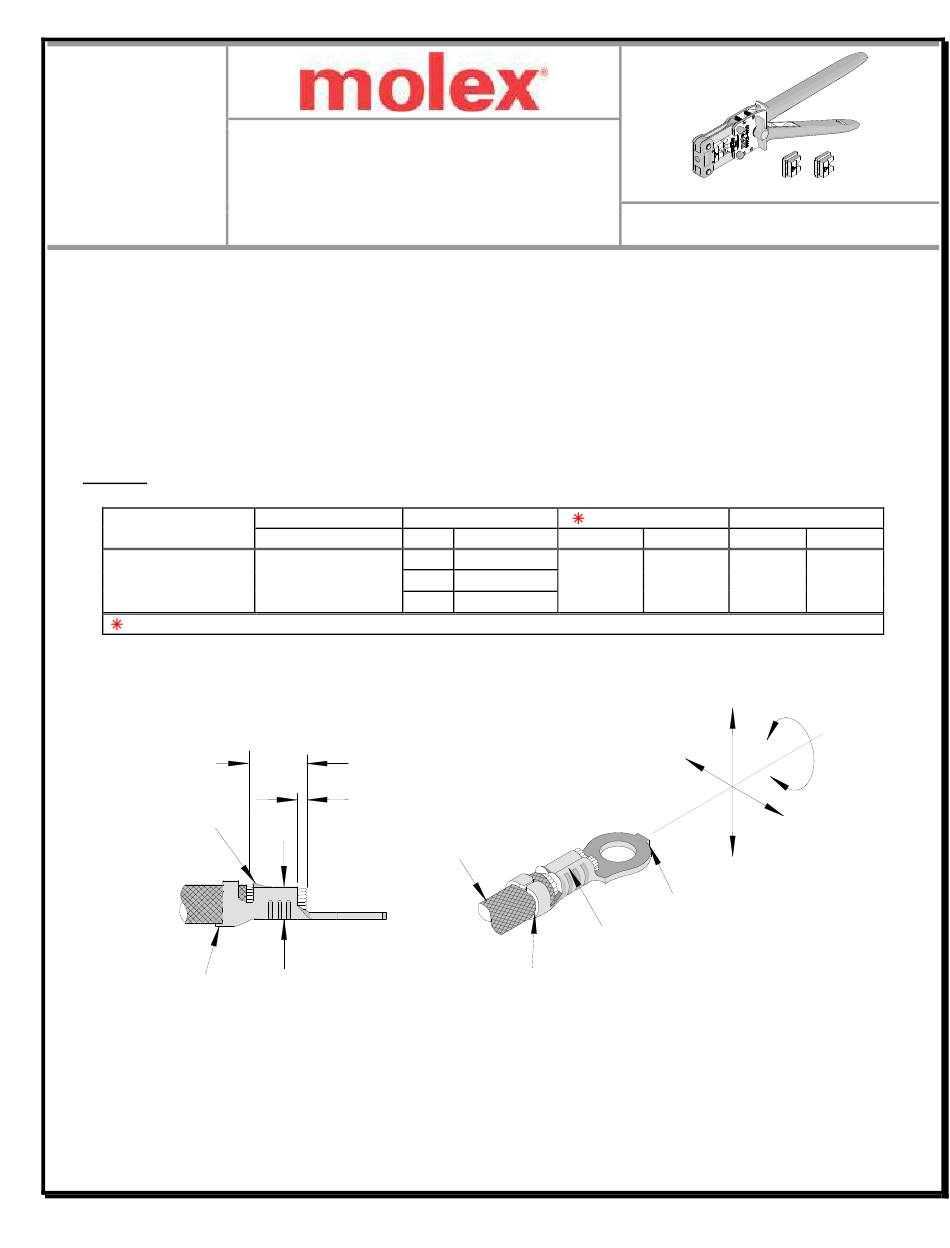

Doc No: ATS-638233500
Revision: A
Application Tooling
Specification Sheet
Terminal Order No.
Wire Size and Type
Reel Form Only
AWG
8
35750-1700
35750-1710
10
35750-1740
12
STRIP LENGTH
CONDUCTOR
BRUSH
CONDUCTOR
CRIMP
Release Date: 06-24-11
Revision Date: 06-24-11
Insulation Diameter
Type
mm
THHN/THWN
UL1015
3.80-5.40
UL1015
TWISTING
WIRE
SEAM
INSULATION CRIMP
UNCONTROLLED COPY
Type 9
Order No. 63823-3500
Strip Length
In.
mm
.150-.213
7.00-7.80
.276-.307
BEND UP
BEND DOWN
►CUT-OFF
TAB (REF)
In.
ROLLING
Page 1 of 7
Advertisement
Related Manuals for molex 35750 Series
Summary of Contents for molex 35750 Series
- Page 1 Hand Crimp Tool for 4.5 Dia. Ring Terminals High Force Hand Tool Application Tooling Type 9 Specification Sheet Order No. 63823-3500 FEATURES A full cycle ratcheting hand tool ensures complete crimps Ergonomically designed soft handles Precisely designed crimping profiles with simple contact positioning Easy handling due to outstanding force ratio SCOPE Products: 4.5 Diameter Ring Terminals: 8-12 AWG wires.
- Page 2 Pull Force value must exceed the minimum pull force specifications listed. CAUTION: Install only Molex terminals listed above with this tool. Do not crimp hardened objects as damage can occur to the tool or die.
- Page 3 Hand Crimp Tool for 4.5 Dia. Ring Terminals FRAME HEAD Tool Kit Installation Select the desired punch to install into the frame head for the appropriate wire used. 1. Insert the punch into the (2) slots of the frame head, make sure the markings on the punch are facing the front of the tool.
- Page 4 Hand Crimp Tool for 4.5 Dia. Ring Terminals 4. Let go of the wire stop. PUSH HERE TO 5. Locate the knob on the front of the OPEN WIRE STOP tool. Turn it counter-clockwise until the anvil is brought up and it is partially engaged into punch.
- Page 5 Should such a defect occur, we will repair or exchange the tool kit free of charge. This repair or exchange will not be applicable to altered, misused, or damaged tools. CAUTION: Molex crimp specifications are valid only when used with Molex terminals and tooling. UNCONTROLLED COPY...
- Page 6 12.7mm (1/2”) long, so there is no crimping of the insulation. Pull the terminal and wire at a rate no faster than 25mm (1.00”) per minute. See the Molex web site for the Quality Crimp Handbook for more information on pull testing.
- Page 7 Tool Kit with Locator 63823-3575 Locator (only) RATCHET RELEASE LEVER M4 X 10mm LONG BHCS WITH TOOL KIT Figure 9 LOCATOR ONLY http://www.molex.com UNCONTROLLED COPY Doc No: ATS-638233500 Release Date: 06-24-11 Page 7 of 7 Revision: A Revision Date: 06-24-11...
