Grandway FHO1500PLUS Manual

Average mode: applicable to accurate analysis of optical fiber
lines
Test Mode
Real Time mode: applicable to fast analysis of optical fiber
lines
In average test mode, the longer the detection time is, the
Test Time
more accurate the test result is.
Test time selection: 5s 10s 15s 30s 60s ， ， ，
The refractive index parameter of the optical cable.
IOR
IOR selection:1.000~1.999(factory default value is 1.468)
It is used to judge the threshold value of fiber test terminal
End Threshold
Threshold selection: 3dB, 4dB, 5dB, 6dB
High resolution will have more sampling points and higher
Resolution
accuracy, but it will also increase the amount of data collected
Connect the fiber from OLT side to the
OLT port and connect the fiber from
ONU side to the ONU port. The
downlink and uplink optical power will
display automatically.
FHO1500PLUS has the function of 10G
PON power meter, provides accurate
1490nm/1577nm power selective
measurement separately and upstream
1270/1310nm power level.
By scanning the following QR code to
download the Android mobile application
of FHO1500, the test file of OTDR can be
quickly transmitted to the mobile phone
through the FHO1500 software, and the
OTDR can also be controlled by the
mobile phone for testing. The analysis of
the OTDR curve on the mobile phone will
make it more convenient to enlarge and
narrow the curve.
FHO1500 Android
software QR code
， ， 120s 180s ，
You can download our manuals and
software in the following link
MANUAL SOFTWARE
Optical Explorer
Last mile fiber troubleshooting in FTTx
ONU/ONT status identification
Support live fiber test over 60km

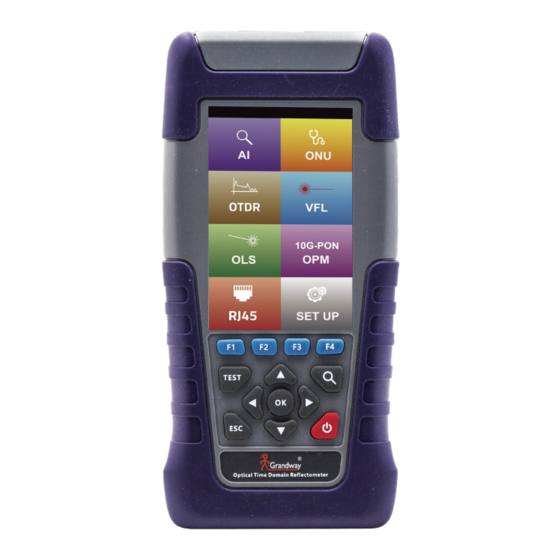

1490/1310/1577/1270nm 10G PON Power Meter
Integrated VFL, laser source and RJ45 testing
Bluetooth connection and Mobile phone app
