- Page 1 FHO1500 Last Mile Explorer User Manual Document Version 1.0.0 Issue Date 2021-03-03 Shanghai Grandway Telocom Tech.Co.,LTD [在此处键入] [在此处键入]...
-
Page 2: Table Of Contents
Content 1 Safety precautions........................... 3 2 FHO1500 Mobile phone software....................4 3 Product description......................... 5 4 OTDR...............................10 5 Visual fault locator module......................22 6 Stable laser source module......................23 7 Optical power meter module....................... 23 8 RJ45 cable test module......................... 24 9 System information........................25... -
Page 3: Safety Precautions
Only the built-in lithium battery specially designed for the instrument can be used. Do not use other types of batteries. Please use the charger specified by Grandway company for charging. If the charging is not completed within the specified time, please stop charging immediately. Because the electrolyte inside the battery is alkaline, if the battery leaks or breaks and comes into contact with the electrolyte, it will damage clothes and skin. -
Page 4: Fho1500 Mobile Phone Software
By scanning the following QR code to download the Android mobile application of FHO1500, the test file of OTDR can be quickly transmitted to the mobile phone through the FHO1500 software, and the OTDR can also be controlled by the mobile phone for testing. The analysis of the OTDR curve on the mobile phone will make it more convenient to enlarge and narrow the curve. -
Page 5: Product Description

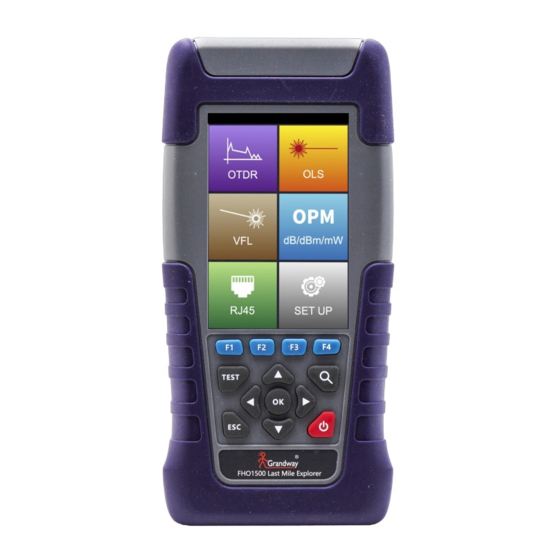

Product description 3.1 Product positioning FHO1500 optical time domain reflectometer is a new generation of intelligent optical fiber network measuring instrument, which is elaborately developed and produced by our company, and has gone through strict quality control process of mechanical, electronic and optical inspection before leaving the factory. - Page 6 3.2 Appearance size Front view Side view Back view Size：192.9×93.8×47mm 3.3 Keypad description Name Function F1-F4 Enter the corresponding menu TEST Used for OTDR average test and real-time test Enlarge button Used to enlarge the OTDR curve Navigation button Used to control up, down, left and right cursor movement [在此处键入] [在此处键入]...
- Page 7 OK button Used to confirm selection and 1:1 restore curve Exit current menu ON/OFF button Long press/short press for more than 2s to turn on/off 3.4 Interface description Top interface Name Function OTDR interface OTDR test port and laser source test port share OTDR test port OPM interface 2.5mm universal optical power meter test port VFL interface...
- Page 8 3.5 Rear panel description Name Function OTDR information Display the factory information of the device, including device name, product model, production date, Bluetooth Mac, serial number, etc 3.6 Packing list 1、OTDR main unit 2、Carrying bag 3、USB charging cord 4、Charging adapter 5、User manual 6、Test report [在此处键入]...
- Page 9 3.7 Power on display Name Function OTDR Enter the corresponding OTDR function menu Enter the corresponding VFL function menu Stable laser source Enter the corresponding stable laser source function menu Optical power meter Enter the corresponding optical power meter function menu (Include the 10G PON 1490nm/1577nm power meter) RJ45 Enter the corresponding RJ45 cable line sequence test function menu...
-
Page 10: Otdr
OTDR 4.1 OTDR brief introduction 4.1.1 OTDR basic principles The full English name of OTDR is optical time domain reflectometer, OTDR is a precise photoelectric integrated instrument which is made by using the Rayleigh scattering and the backscattering generated by Fresnel reflection when light is transmitted in optical fiber. It is widely used in the maintenance, construction and monitoring of optical cable lines, and can measure the length of optical fiber, transmission attenuation of optical fiber, joint attenuation and fault location. - Page 11 End event Start event or non reflection event Reflection event The events on trace are all the points that the value of power loss fluctuates abnormally. It usually contains various types of connection and bending, crack, broken and etc. The event points marked on trace with special marks are the abnormal points in a fiber that cause the excursion of a normal trace.
- Page 12 Normal curve A normal trace shows as above, the A mark is a start-peak and the B mark is a end-reflection-peak. The tested trace is oblique, the total loss will become bigger with the increasing of the fiber length. The total loss(dB) divides total length is the average loss(dB/km) of a fiber.
- Page 13 2. Reset the test parameters, decrease the preset distance and the pulse width. 3. If the problem still exists, we could estimate: 4. The connector of the test fiber is broken or polluted. 5. The launching port on the OTDR is broken or polluted. 6.
- Page 14 This situation often happened in a long distance testing, caused by under-range dynamic range of the OTDR that the energy of it can not support a long distance transmission or caused by a under-range preset testing range of distance or pulse width corresponding to the actual fiber length. To avoid this situation, adjust the testing distance and the pulse bigger and extend the sampling time.
- Page 15 Recovery factory default parameter value 4.3 Perform the OTDR test 4.3.1 Set test mode FHO1500 has two test modes, average test mode and real-time test mode. 1625nm Average test mode The average test mode will display the curve composed of the average values of the measured values over a period of time.
- Page 16 1625nm Real-time test mode Real time test mode, you can view the test curve in real time and quickly detect the characteristics of the optical fiber link. In the test setup, select the test mode as "real-time" mode, and click the main key "Test" to enter the real-time test interface.
- Page 17 Above the OTDR chart, the three key information, total length of the fiber link, total loss and number of events (events excluding start points and ghosts) are displayed. 1625nm Meaning of each item in the event analysis list: Item Description Number The number of the fiber event Type...
- Page 18 1625nm 1625nm Step 2, The "Focus: A" and "Focus B" are displayed, indicating that the cursor A and cursor B can ◀ ▶ be moved to operate the keyboard【 】【 】key left and right to move. When you move cursor A or B, cursor A will always remain to the left of cursor B.
- Page 19 Step 1, in the test interface, press the "enlarge" button to enter the curve amplification mode. At this time, a small red window will appear around the screen. At this time, the function corresponding to the [F2] key is switched to "Zoom". 1625nm 1625nm ▶...
- Page 20 Step 4, click the [OK] button, and the test curve will be restored 1:1. 4.4 Simple mode The Simple mode in FHO1500 can simplify the complex OTDR curve and make the test results easy to understand. Click the [F3] button in the OTDR curve interface to enter the simple mode, and then click [F3] to return to the OTDR chart interface.
- Page 21 Click the [F4] button to enter the file menu, and the test file will be automatically saved in the folder in the file menu. 3.5.2 Read/Delete/Rename test curve Open the test folder, select the test file to be opened by clicking【▲】【▼】and click [F1] to open the test curve.
-
Page 22: Visual Fault Locator Module
1625nm Visual fault locator module The FHO1500 is equipped with a 10mw VFL module (650nm) for fiber finder and find close fiber breakpoints. VFL port VFL turn off screen VFL turn on screen [在此处键入] [在此处键入]... -
Page 23: Stable Laser Source Module
The VFL has two emission modes CW mode，under this mode, FHO1500 will emit continuous visible light. Flash mode，under this option, FHO1500 will emit visible light flashing at the frequency of 1Hz/2Hz. Press【CLOSE】【ESC】button to turn off the VFL or exit the VFL function. -
Page 24: Rj45 Cable Test Module
1490nm and 1577nm wavelength in 10G PON network. RJ45 cable test module FHO1500 is equipped with RJ45 cable test port and remote module for RJ45 cable line sequence measurement based on TIA-568A and TIA-568B standards. -
Page 25: System Information
TIA-568B standard System information Click the "Setup" menu in FHO1500 main menu interface to enter the system information interface, and the following basic settings can be made for the machine. Automatic shutdown function: OFF/ 5 minutes / 10 minutes / 30 minutes... - Page 26 System reset: restore factory settings Software system information Upgrade：Download the upgrade firmware to the OTDR SD card，Click F3 button to upgrade (Please connect the power when upgrading) [在此处键入] [在此处键入]...
-
Page 27: Maintenance
Maintenance Battery FHO1500 Last Mile Explorer Use rechargeable Li-ion battery. Pay attention to the following : Keep OTDR dry and clean store at room temperature (15℃～30℃). Charge it monthly if you don't use it for a long time (more than one month ). -
Page 28: Contact Us
Contact us Please contact the nearest agent or the following organization for related products: Shanghai Grandway TelecomTech. Co., Ltd. Address: 6F, Xin'an Building, No.99 Tian Zhou Road, Caohejing Hi-Tech Park, Shanghai ,200233, China Tel: +86-21-54451260/61/62 Fax: +86-21-54451266 Email: overseas@grandway.com.cn...
