- Page 1 USER'S GUIDE TO THE FHP2P01 PON Power Meter FHP2P01 English Version...
- Page 2 USER'S GUIDE TO THE FHP2P01 PON Power Meter...
-
Page 3: General Description
FHP2P01 General Description: FHP2P01 PON power meter is a small size, low loss and good quality handed-held optical power meter. It is designed for the testing , installation and maintenance of FTTX PON network , which can be used for APON, BPON, EPON and GPON network. -
Page 4: Main Features
FHP2P01 Main features: ● Handed-held, Easy-to-carry and use ● P/F testing and normal testing mode ● Two testing ports with " ONU " & " OLT/Video " ● Support 1310nm upstream CW/brust signal and 1490nm /1550nm downstream signal ● Design for networks of APON, BPON,EPON and GPON ●... -
Page 5: Technical Parameters

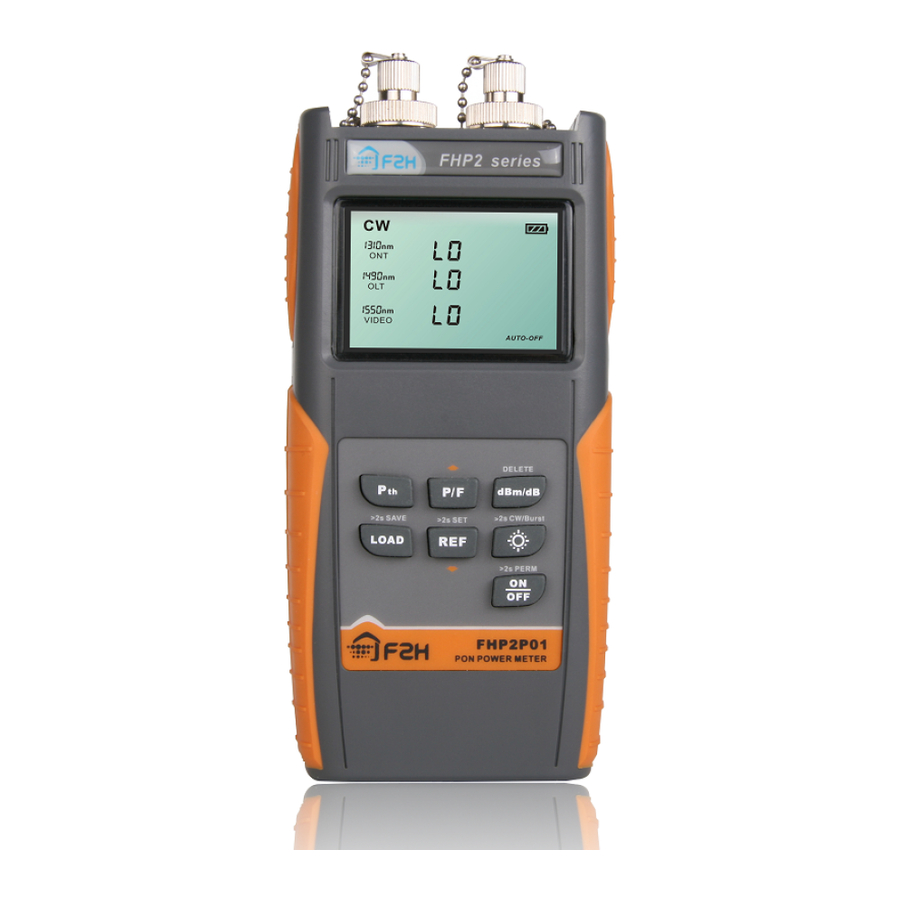

FHP2P01 Technical Parameters: Wavelength 11310nm (Burst) 1310nm (CW) 1490 nm 1550 nm Linearity ± 0.2@1550 ≥ -40dBm Isolation Rate >40@1490nm >40@1310nm >40@1550nm >30@1550nm >30@1490nm Measuring Range -50~+16 -30~+16 -40~+16 (dBm) Insertion Loss(dB) Spectral Width 1260~1360 1539~1565 1480~1500 Accuracy 0.5db ± 1nW @ 1550 nm... - Page 6 FHP2P01 Structure Num. Description Fiber port display Control panel DELETE dBm/dB >2s SAVE >2s SET >2s CW/Burst Battery cover LOAD Charger jack FHP2P01 PON POWER METER USB port...
- Page 7 FHP2P01 Buttons of this meter have secondary function, normal push to use the function which indicated on the button, hold(>2s)to use the function on the panel, all the functions have been listed as follow: Power button. Hold(>2s)to turn off the function of auto-shut down.
-
Page 8: Detailed Procedure
FHP2P01 Procedure Simple Procedure 1) Connect to the measuring circuit before use; Push power button to enter measuring interface; Push backlight button to turn on or turn off backlight; Hold backlight button to switch between 1310nm CW/burst signal; Push "Pth" button to enter interface of threshold setting and resetting, set threshold by software through USB, push "dBm/dB"... - Page 9 FHP2P01 Hold this button(>25)will turn off the function of auto-shut down, showed as right picture, otherwise lower right corner will show "Auto-off"icon to mention you in the state of auto-shut down .auto-shut down means if user did nothing in one period of time ,meter will turn off automatically, this value can set by manufacturer, default setting is 10 minutes.
- Page 10 FHP2P01 P/F measuring mode In P/F measuring mode meter will compare the optical power with threshold to -21.30 judge whether measured power value is meet the requirement of user. Fail Display will show the relevant judge of result :"Pass", "Warning" or "Fail".
- Page 11 FHP2P01 4. Unit conversion In normal measuring mode, result could displayed with unit of dBm and dB, -21.29 switch between dBm and dB by "dBm/dB button, then display will indicate relevant unit(dBm or dB),showed as right picture. "dBm" is the real optical power of the measurement, "dB"is te value of optical power which compared with the REF value, about detail please check "Setting...
- Page 12 FHP2P01 User should hold(>2s) backlight button to switch between 1310nm(CW) and -21.70 1310nm(Burst), unit will indicated by "CW" and "Burst" on the display, showed as right pictures 1310nm(CW) is continuous wavelength of 1310nm, 1310nm(Brust) is the Brust wavelength of 1310nm, this kind of signal is invalid during measuring the status of 1490nm and 1550nm wavelength.
- Page 13 FHP2P01 7. Setting of backlight and guide for battery using This meter has backlight function ,you could push backlight button to turn on backlight in the environment with insufficient light. This meter is low power consumption instrument, just need 2*AAA battery for normal use ,but backlight will consume huge power, short the life of battery,so for the saving of power please turn off backlight in the environment with bright lights.
- Page 14 FHP2P01 Item "Mem 001" at Left bottom means the first group of data, it stand for the sequence of saved data, the value above is the power value for relevant - - - - wavelength. Push "LOAD"button to check saved data, use push page up, page down button - - - - could switch to last or next data.
- Page 15 FHP2P01 Notice Please follow the manual for proper operation. This meter is designed for PON network, operator should have the basic knowledge of PON network for better operation of this meter. This meter is high precision instrument, please don't use it in terrible environment (high temperature , high humidity ,etc).
-
Page 16: Maintenance
FHP2P01 Maintenance Please shut off and cap protecting cover for fiber port after use then keep it in ventilated and dry place. Meter needs matched accessory and adapter for External power to prevent permanent damage. Clean fiber connector regularly. Please don't disassembly the meter,This may result in permanent damage and loss of guarantee qualification.
