- Page 1 User's Guide to the FHP1A/B02 Mini Optical Power Meter FHP1A/B02 English Version...
- Page 2 User's Guide to the FHP1A/B02 Mini Optical Power Meter...

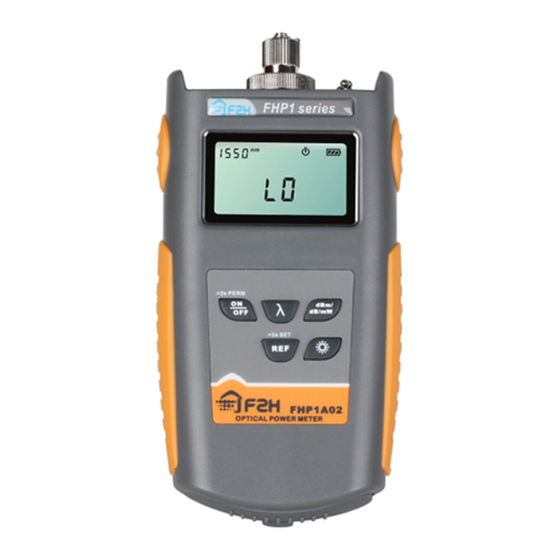

- Page 3 FHP1A/B02 / Introduction 1 Introduction FHP1 series The FHP1 series are full featured mini sized optical power meters 18 8 8 designed for use with an optical laser source to perform optical loss .8.8.8.8 measurements on optical fiber cables. Utilizing state-of-the-art SMT in its manufacture, optical connections to the FHP1 are made via the universal adapter interface on the top of the unit.
-
Page 4: Warranty
Grandway products are warranted against the defective components and workmanship for a period of three years from the date of delivery to the original customer. Any product found to be defective within the warranty period would be returned to Grandway authorized service center for repair, replacement and calibration. - Page 5 FHP1A/B02 / Warranty Grandway Customer Service 6F, Xin'an building No. 99 Tianzhou Road Shanghai, 200233 P.R. China Contact Us Tel: 0086-21-54451260/61/62/63 Fax: 0086-21-54451266 E-mail: heyong@grandway.com.cn overseas@grandway.com.cn Website: www.grandway.com.cn...
-
Page 6: Safety Information
FHP1A/B02 / Safety Information 3 Safety Information Warnings! Never look directly into optical outputs or a fiber while the equipment is on.Invisible laser beam may damage your eyes. Do not short-circuit the terminal of charger and the batteries.Excessive electrical current may cause personal injury due to fumes,electric shock or equipment damage. -
Page 7: Preparing For Operation
FHP1A/B02/ Preparing for Operation 4 Preparing for Operation 4.1 Unpacking the instrument Packing material We suggest that you keep the original packing material. Using the original packing material is your guarantee of protecting the instrument during transit. Checking the package contents... - Page 8 FHP1A/B02 / Preparing for Operation 4.2 Discharged batteries There is a battery indicator on the screen to show the remaining charge. There are four status the indicator may show, full, with 2 blacks, with 1 black and empty. If an empty battery indicator flashes it means the power is almost out.
-
Page 9: Specifications
FHP1A/B02 / Operation 5 Specifications Optical Specifications FHP1A02 FHP1B02 Calibrated Wavelength (nm) 850/1300/1310 /1490/1550/1625/1650 Detector Type InGaAs Connector FC/PC SC/PC ST/PC Universal Accuracy 0.01dB Resolution ± 0.35dB±1nW ± 0.35dB±10nW Linearity ±5% Auto Power Off Back Light Reference Value Measuring Range(dBm) - Page 10 FHP1A/B02 / Operation General Specifications Operating Temperature -10 C to +50 C Storage Temperature -20 C to +70 C Power Supply 3pcs*AAA Battery; Dimension (mm) 115L*62W*30H Net Weight 140g...
-
Page 11: Operation
FHP1A/B02 / Operation 6 Operation .1 Display and controls 6.1.1 Keypad The FHP1 keypad is used to access a wide range of instrument functions. NO. Key Function FHP1 series >2s PERM S w i t c h e s i n s t r u m e n t o n / o ff . L o n g k e y p r e s s o v e r 2 s e c o n d s 18 8 8 while powering on is to activate the instrument without Auto-off function. - Page 12 FHP1A/B02 / Operation 6.1.2 Back Adaptor; FC, SC, ST is available and selectable Battery cover...
- Page 13 FHP1A/B02 / Operation 6.1.3 LCD Wavelength Auto-off 18 8 8 Battery Charge Reference .8.8.8.8 Measurement Unit Power value...
- Page 14 FHP1A/B02 / Operation 6.2 Turning the instrument on and off 4.2.1. Press the "ON/OFF" key briefly. The instrument powers on, and The LCD screen switches on with the short beeper 18 8 8 of the buzzer. .8.8.8.8 Please check the battery capacity and the connection of the battery in the battery plate if it fails.
- Page 15 FHP1A/B02 / Operation 6.3 Setting the wavelength Press the "λ" key repeatedly until the desired wavelength is displayed. You can select from six possible wavelengths: 850nm, 1300nm, 1310nm, 1490nm, 1550nm, 1625nm and 1650nm . The instrument defaults to the wavelength of 1550nm.
- Page 16 FHP1A/B02 / Operation 6.5 Switching measurement mode 18 8 8 13 10 18 8 8 13 10 .8.8.8.8 25.08 .8.8.8.8 20.00 Press the "dBm/dB/mw" key, you can select three measurement modes: dBm for the power value, dB for the >2s PERM >2s PERM...
- Page 17 FHP1A/B02 / Operation 6.8 Connection with the optial laser source Connecting with FHS1D series dual-wavelength laser source, FHP1A02 optical power meter can make accurate measurement of the fiber loss at the largest distance of more than300km(@1550). On-the-spot measurement will differ with the working wavelength, fiber attenuation and the testing environment.
-
Page 18: Maintenance
It is a good idea to clean the connector and the instrument when they get dirty through use. Optical cleaning pads and anhydrous alcohol is recommended. And please be careful not to get the detergent inside the instrument. To ensure the measurement accuracy, please send the instrument to Grandway Service Center for calibration once a year.
