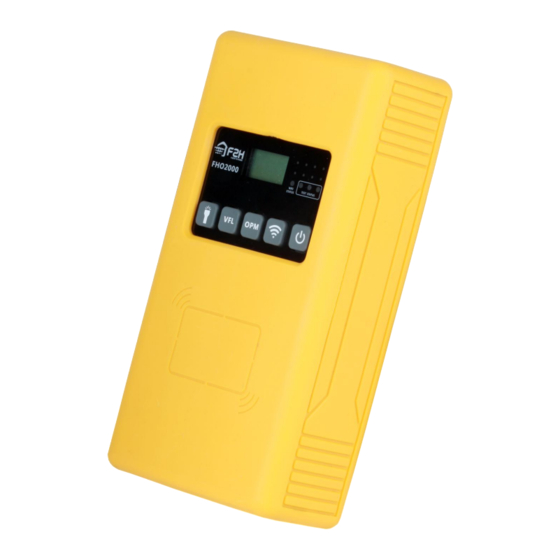

Grandway FHO2000 OTDR Quick Manual

Grandway FHO2000 OTDR Quick Manual

Advertisement

Quick Links

FHO2000 OTDR
Quick Guide
E1000
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the FHO2000 OTDR and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Grandway FHO2000 OTDR

  • Page 1 FHO2000 OTDR Quick Guide E1000...
  • Page 2 Panel Num. Item Function Flash Light switch Short Press: check power level Long Press: Turn on/off flash light VFL function switch Short Press: CW--->2Hz--->shutdown OPM function switch Short Press: switch wavelength (850/1300/1310/1550/1625/1650nm) Long Press: Display time and temperature WIFI switch Long Press: Restart WIFI Turn on/off OTDR...
  • Page 3 Num. Item Function Indicate WIFI connection state WIFI Flashing: No connection with smartphone STATES No Flashing: Connecting with smartphone TEST Indicate test state of OTDR STATUS Rolling: Under the test OFF: no test is proceeding Power Indicate remain power Remain Error Indicate error type Indicator...
  • Page 4 Interface Num. Item Function OTDR Test Enter OTDR test interface Parameters Setting parameters for FHO2000 Local File Check saved files Device Check Manual/Guide for FHO2000 Introduce...
  • Page 5 Num. Item Function Recover to original scale Recover cursorA/B Activate cursor A/B Check event list Save current curve Start/Stop test...
  • Page 6: Before Test

    Before Test Download Software FHO2000 can be used with both android&IOS smartphone operation system. For Android: user could download the software in the main page of Grandway http://www.grandway.com.cn/downloads/soft/ For IOS: Search “OTDR” in APP Store and download the software Connecting the Fiber Before connect fiber to FHO 2000,...
