- Page 1 User's Guide to the FHP2A/B04 Optical Power Meter FHP2A/B04 English Version...
- Page 2 User's Guide to the FHP2A/B04 Optical Power Meter...
-
Page 3: Table Of Contents
CONTENTS PAGE 1 Introduction 2 Warranty 2.1 One Year Limited Warranty 2.2 Exclusions 2.3 Returning Product 2.4 Contacting us 3 Safety Information 4 Preparing for Operation 4.1 Unpacking the instrument 4.2 Discharged batteries 4.3 AC operation 5 Operation 5.1 Display and controls 5.2 Turning the instrument on and off 5.3 Setting the wavelength &... -
Page 4: Introduction

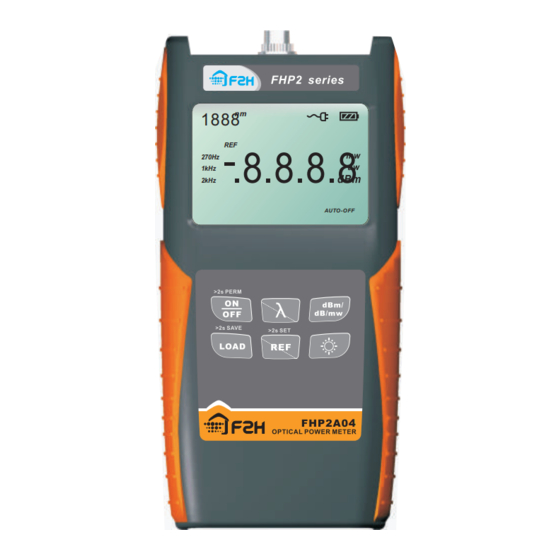

FHP2A/B04 / Introduction 1 Introduction LPM-4 series FHP2 series The FHP2 series are full featured palm sized optical power 1888 meters designed for use with an optical laser source to .8.8.8.8 270Hz 1kHz perform optical loss measurements on optical fiber cables. 2kHz The FHP2 series are lightweight and are controlled by AUTO-OFF... -
Page 5: Warranty
Grandway products are warranted against the defective components and workmanship for a period of one year from the date of delivery to the original customer. Any product found to be defective within the warranty period would be returned to Grandway authorized service center for repair, replacement and calibration. -
Page 6: Contacting Us
FHP2A/B04 / Warranty Grandway Customer Service 6F, Xin'an building No. 99 Tianzhou Road Shanghai, 200233 P.R. China Contacting Us Tel: 0086-21-54451260/61/62/63 Fax: 0086-21-54451266 E-mail: overseas@grandway.com.cn Website: www.grandway.com.cn... -
Page 7: Safety Information
FHP2A/B04 / Safety Information 3 Safety Information Warnings! Never look directly into optical outputs or a fiber while the equipment is on.Invisible laser beam may damage your eyes. Do not short-circuit the terminal of AC adapter / charger and the batteries.Excessive electrical current may cause personal injury due to fumes,electric shock or equipment damage. -
Page 8: Preparing For Operation
FHP2A/B04/ Preparing for Operation 4 Preparing for Operation 4.1 Unpacking the instrument Packing material We suggest that you keep the original packing material. Using the original packing material is your guarantee of protecting the instrument during transit. Checking the package contents The standard accessories of FHP2 are as follows: FC, SC interchangeable connector, Manual, Carrying Bag, Software (CD), USB cable, AC/DC adapter, Test Report. -
Page 9: Discharged Batteries
FHP2A/B04 / Preparing for Operation 4.2 Discharged batteries There is a battery indicator on the screen to show the remaining charge. There are four possibilities the indicator may show, full, with 2 blacks, with 1 black and empty. If an empty battery indicator flashes it means the power is almost out, and that is when you should recharge the batteries by connect the AC adapter with the instrument. -
Page 10: Ac Operation
FHP2A/B04/ Preparing for Operation 4.3 AC operation If the instrument is mainly used at one location, e.g. in a laboratory or test department, the AC adapter can be used to power it instead of batteries. The USB cable of the AC adapter is plugged into the USB port. -
Page 11: Operation
FHP2A/B04 / Operation 5 Operation 5.1 Display controls 5.1.1 Keypad The FHP2 keypad is used to access a wide range of instrument functions. Function Switches instrument on / off. Long keypress while powering on to LPM-4 series FHP2 series activate the instrument without Auto-off function. 1888 Selects measurement wavelength in sequence of 850/1300/1310/ .8.8.8.8... - Page 12 FHP2A/B04 / Operation 5.1.2 Back Connector(FC, SC, ST optional) LPM-4 series FHP2 series 1888 .8.8.8.8 270Hz 1kHz 2kHz AUTO-OFF Micro-USB interface...
- Page 13 FHP2A/B04 / Operation 5.1.3 LCD Wavelength Charging Indicator 1888 Battery Charge Reference .8.8.8.8 270H z Frequency 1kH z Measurement Unit 2kH z TW IN AUTO-OFF Auto-wavelength recognition Power Auto-off...
-
Page 14: Turning The Instrument On And Off
FHP2A/B04 / Operation 5.2 Turning the instrument on and off Press the “ON/OFF” key briefly. The instrument powers on, and backlighting switches on. Please check the battery capacity if it fails. Press the “ON/OFF” key briefly again. The instrument powers off, and backlighting switches off. .8.8.8.8 270Hz 1kHz... -
Page 15: Setting The Wavelength & Activate The Auto-Wavelength Recognition(Twin)
FHP2A/B04 / Operation 5.3 Setting the wavelength & Activate the Auto-wavelength Recognition(TWIN) Press the “λ” key repeatedly until the desired wavelength is 1625 1550 1490 displayed. You can select from six possible wavelengths: 850nm, 1300nm, 1310nm, 1490nm,1550nm,1625nm. 1300 13 1 0 The instrument defaults to the wavelength which the user set 2 0.0 0 in the last test. -
Page 16: Switching Measurement Mode
FHP2A/B04 / Operation 5.4 Switching measurement mode There are three measurement modes you can choose by pressing the “dBm/dB/mW” key repeatedly, dB, dBm,mW. 1 3 1 0 1 3 1 0 2 0.0 0 2 5.0 8 AUTO-OFF AUTO-OFF... -
Page 17: Setting Reference Level
FHP2A/B04 / Operation 5.5 Setting reference level 1 3 1 0 1. Press the “REF” key to display the stored reference level for 1 3 1 0 2 0.0 0 the current wavelength and a sign of “REF” will be displayed 0 5.8 8 on the screen to indicate that it is a reference value. -
Page 18: Swithing Backlighting Of The Lcd On And Off
FHP2A/B04 / Operation 5.6 Switching backlighting of the LCD on and off Press the backlighting key. Backlighting switches on. Press the backlighting key again. Backlighting switches off. 1 310 1 310 AUTO-OFF AUTO-OFF... -
Page 19: Frequency Detecting
FHP2A/B04 / Operation 5.7 Frequency detecting If the tested wavelength is carrying a tone of 270Hz, 1kHz, or 2kHz, the respective frequency indicates on the screen 13 1 0 2 0.0 0 1kH z AUTO-OFF... -
Page 20: The Overflow Of The Measured Power Value
FHP2A/B04 / Operation 5.8 The overflow of the measured power value If the measured power value is too high, the LCD screen will display “HI”. 1 3 1 0 AUTO-OFF If the measured power value is too low, the LCD screen will display “LO”. 1 3 1 0 AUTO-OFF... -
Page 21: The Storage Of The Current Test Value
FHP2A/B04 / Operation 5.9 The storage of the current test value Press key over 2s, the SAVE flashes on the screen once with the sounds of the buzzer. It indicates the setting is finished. It will display the stored value and the serial number of the storage. -
Page 22: Specifications
2: AC adapter cannot be used if the instrument is powered by the AA non-dischargeable batteries, otherwise Grandway will not be responsible for the trouble caused by the misuse. The discharging time will be different unde various operating environment and batteries. -
Page 23: Specifications 19
FHP2A/B04 / Specifications General Specifications Operation Temperature 10℃~+50℃ Storage Temperature -20℃~+70℃ Humidity < 90% Size(H*W*D) 160*76*45mm Weight about 265g... -
Page 24: Maintenance
Optical cleaning pads and anhydrous alcohol is recommended. And please be careful not to get the detergent inside the instrument. To ensure the measurement accuracy, please send the instrument to Grandway Service Center for calibration once a year. NOTE: Specifications, terms and conditions are subject to change without notice.
