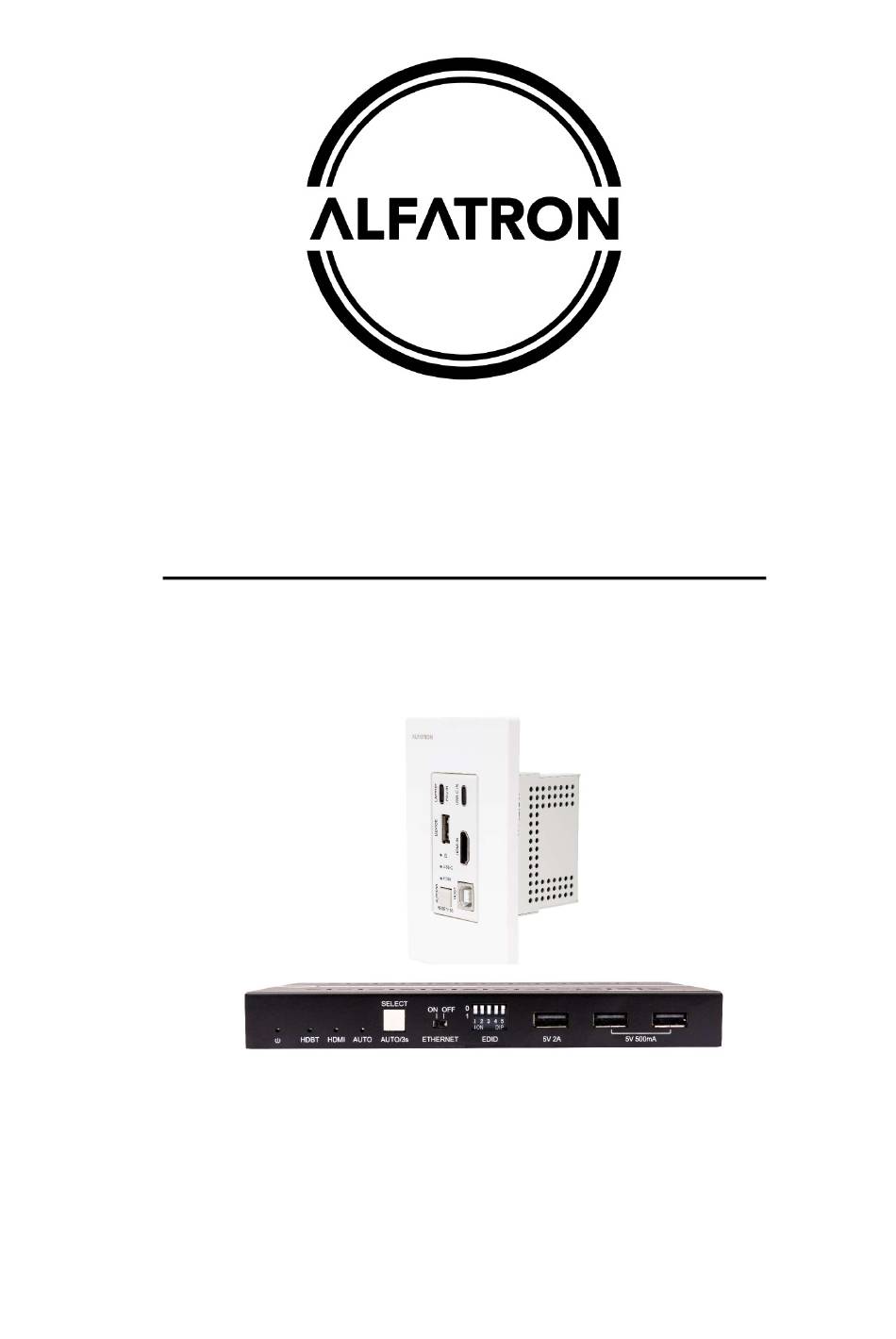

- Page 1 ALFATRON ELECTRONICS GmbH GERMANY ALF-TRUK100-RS...
- Page 2 ALFATRON ALF-TPUK100-RS Table of Contents 1. Description………………………………………………………………………………….1 2. Drawing………………………………………………………………………………………1 3. Features……………………………………………………………………………………...2 4. Operation Controls and Function……………………………………………………….2 4.1 Transmitter’s panels…………………………………………….…………………….2 4.2 Receiver’s Panel……………………………………………………………………….3 5. Specification………………………………………………………………………………...4 6. Chassis Design……………………………………………………………………………..4 7. Application Example……………………………………………………………………….5...
- Page 3 ALFATRON ALF-TPUK100-RS Description The ALF-TPUK100-RS is an HDBaseT wall plate extender kit for video (Max 4K@60 4:4;4), audio, USB2.0, RS232 control signal and Ethernet over distances max up to 100m. It includes USB2.0 and USB-C host interfaces, plus a USB2.0 interface for a peripheral device such as speakerphone, video camera, microphone, or keyboard and mouse with the charging functions.
- Page 4 ALFATRON ALF-TPUK100-RS 3 Features Extend USB-C, HDMI2.0 & USB2.0 signal over HDBT2.0. HDMI 2.0, 18G, 4K@60 4:4:4, HDCP 2.2 and backward compatible. Transmission distance of 4K@60 4:4:4 Max up to 100m (CAT6 STP cable). USB2.0 bandwidth rate max up to 480M/bps with the HDBT 2.0 standard on USB speed.
- Page 5 ALFATRON ALF-TPUK100-RS 4.2 Receiver’s Panel Rear Panel Name & Description Remark HDBaseT Input Port Connect from the transmitter’s HDBaseT output port via a Cat6 STP cable HDMI IN Port Connect to a BYOD or HDMI source device HDMI OUT Port...
- Page 6 ALFATRON ALF-TPUK100-RS Specification HDMI Input 1. HDMI 2.0, supports resolution up to 4K@60Hz 4:4:4, HDR 10 and Dolby Vision. 2. Supports up to LPCM 7.1, Dolby® TrueHD, Dolby Digital® Plus, and DTS-HD® Master Audio . USB-C 1. Supports up to 4K UHD 60Hz 4:2:0.
- Page 7 ALFATRON ALF-TPUK100-RS 6 Chassis Design Tx: 46mmx103.5mmx67mm Dimension (W x D x H) Rx: 175mmx96mmx21mm Raw Materials Steel 7 RS232 Commands SYSTEM SETUP s addr xx! Set System Address to xx {xx=[00~99](00=Single)} help! Lists all commands r status! Get device current status...
- Page 8 ALFATRON ALF-TPUK100-RS 8 Application Example...
