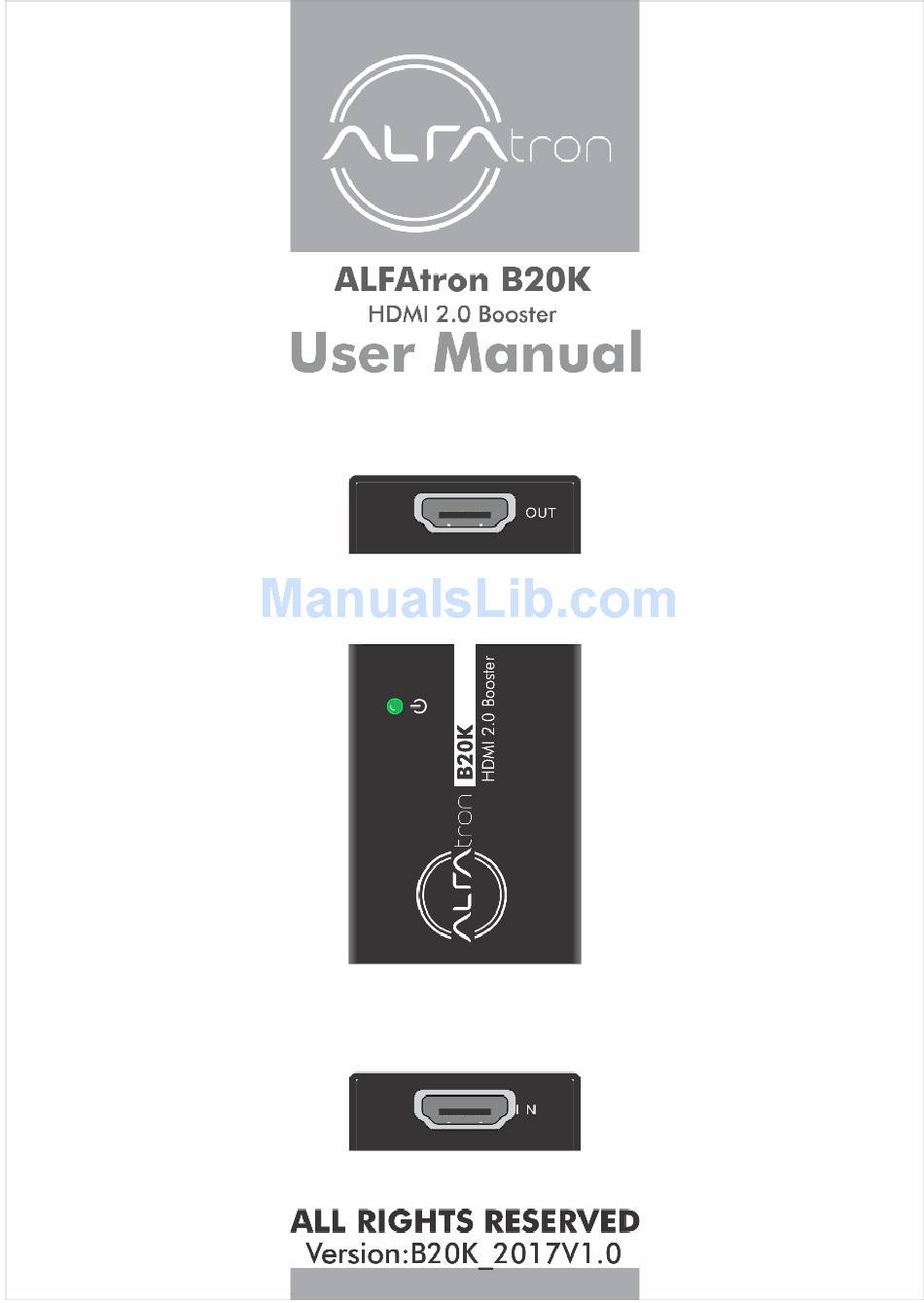

Page 1: User Manual
HDMI Extender over Cat5e/6 User Manual ALFAtron B20K HDMI 2.0 Booster All Rights Reserved... - Page 2 HDMI Extender over Cat5e/6 Statement Thanks for purchasing this product, please read this user manual carefully before use. We reserve the right to make function or parameters changes without notice or obligation. Safety Precaution ▪ Do not dismantle the housing or modify the module to avoid electrical shock or burn.
-
Page 3: Package Content
HDMI Extender over Cat5e/6 Introduction B20K is an HDMI 2.0 booster designed to extend 4k×2k@60Hz 4:4:4 signal up to 20m, and 4k×2k@30Hz signal up to 35m over HDMI2.0 cables, being powered by HDMI source, and the HDMI cables should support 18Gbps. -
Page 4: Panel Description
HDMI Extender over Cat5e/6 Panel Description ① INPUT: Connect with HDMI source ② Power LED: GREEN when powered on ③ OUTPUT: Connect with HDMI display System Diagram... -
Page 5: Specifications
HDMI Extender over Cat5e/6 Specifications Input & Output Input (1) HDMI Input Connector (1) 19-pin type-A female HDMI Output (1) HDMI Output Connector (1) 19-pin type-A female HDMI General 4Kx2K@60Hz 4:4:4≤ 20m; Transmission Distance 4Kx2K@30Hz 4:4:4≤ 35m; 1080p≤ 50m HDMI Standard HDMI2.0 HDCP Standard Input supports HDCP2.2... - Page 6 HDMI Extender over Cat5e/6 on the product). Proof of purchase in the form of a bill of sale or receipted invoice must be presented to obtain warranty service. 2) What the warranty does not cover: Warranty expiration. Factory applied serial number has been altered or removed from the product.
- Page 7 HDMI Extender over Cat5e/6 help from your local distributor. 1. Limited warranty in respect of Alfatron Products Only 1.1 This limited warranty covers defects in materials and workmanship in this product. 1.2 Should warranty service be required, proof of purchase must be presented to the Company.
- Page 8 HDMI Extender over Cat5e/6 1.4 The Company does not warrant that the product covered hereby, including, without limitation, the technology and/or integrated circuit(s) included in the product, will not become obsolete or that such items are or will remain compatible with any other product or technology with which the product may be used.
- Page 9 HDMI Extender over Cat5e/6 necessary to satisfy a proper claim under this limited warranty: 1.10.1 Elect to repair or facilitate the repair of any defective parts within a reasonable period of time, free of any charge for the necessary parts and labor to complete the repair and restore this product to its proper operating condition.;...
- Page 10 HDMI Extender over Cat5e/6 1.13 Please be aware that the Company’s products and components have not been tested with competitor’s products and therefore the Company cannot warrant products and/or components used in conjunction with competitor’s products. 1.14 The appropriateness of the goods for the purpose intended is only warranted to the extent that the goods are used in accordance with the Company’s installation, classification and usage instructions.
