Aiphone IM Series Instructions Manual

Kit Contains: User Station, Control Unit, Speaker Driver, Mic Tube, Acoustic Tubing, Power Supply
Additional Equipment: Proximity Sensor, Paging Speaker
The Aiphone ticket booth system provides VOX operated hands-free communication between a customer and an
employee who are on opposite sides of bullet proof glass. The system uses a speaker driver and acoustic tubing to
provide communication without compromising the integrity of the bullet proof glass. A microphone mounted within
the acoustic tubing provide incoming voice. In addition to communication, the system can be proximity activated
and features ambient noise and voice volume controls. An additional overhead paging speaker may also be
connected to provide general announcements.
1
NAMES, FUNCTIONS & MOUNTING
Names & Functions
-User Station -
2
1
3

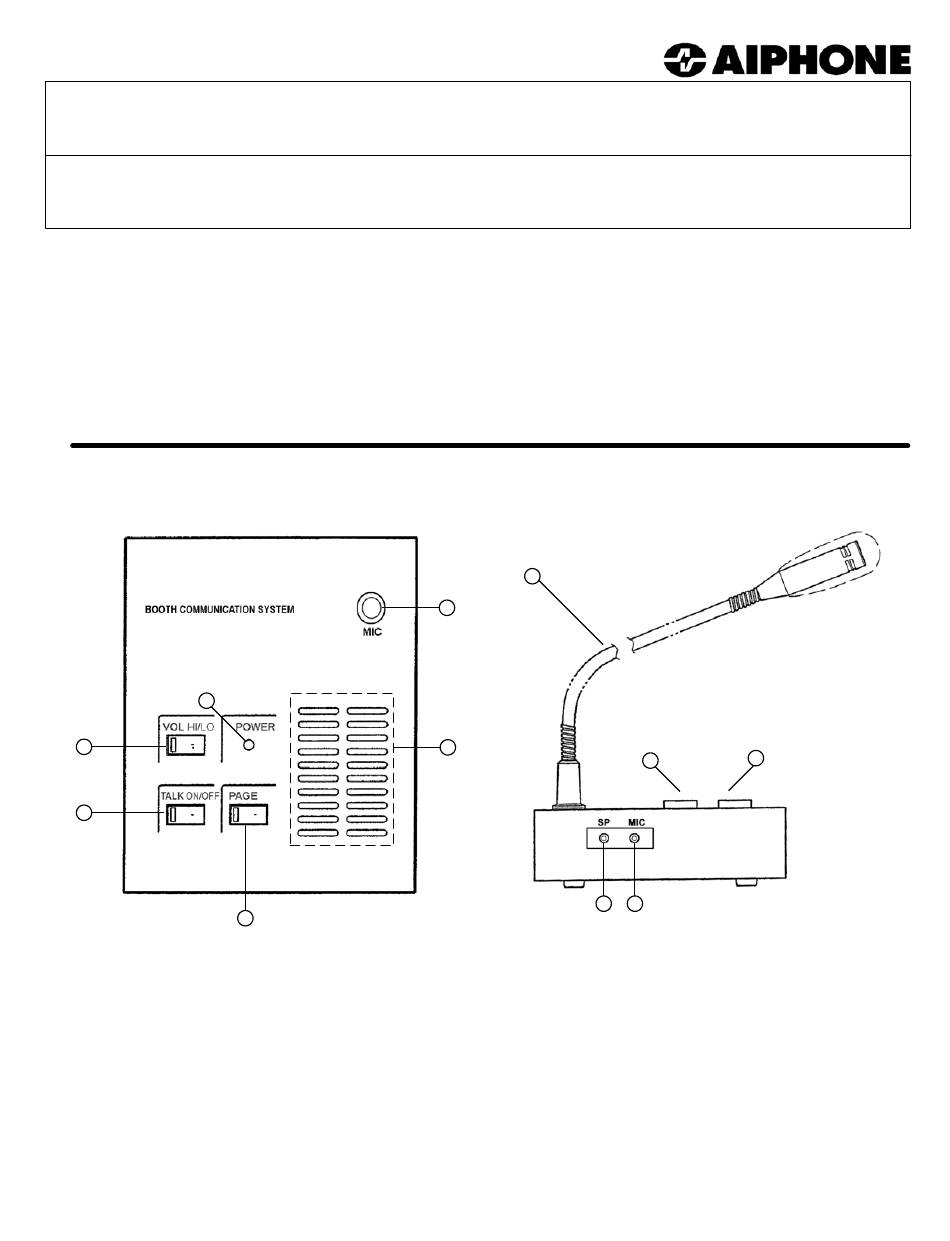

NAMES & FUNCTIONS:
1. Vol button (Hi/Lo)
2. Power LED
3. Talk Button (On/Off)
4. Page Button
Mounting
- User Station -
The User Station is designed for desk mounting. Its rubber feet will grip to most surfaces and prevent the unit from
slipping or moving unnecessarily. The flexible gooseneck microphone allows individual adjustments after
installation. The User Station must be mounted within six feet of the Control Unit and is connected via the supplied
connector.
Ticket Booth System
- INSTRUCTIONS -
4
1203
7
6
5
8
5. Speaker
6. Gooseneck Mic Socket
7. Gooseneck Mic (Approx. 24')
8. Headset Speaker Output (3.5mm Jack)
9. Headset Microphone Input (3.5mm Jack)
3
1
9
