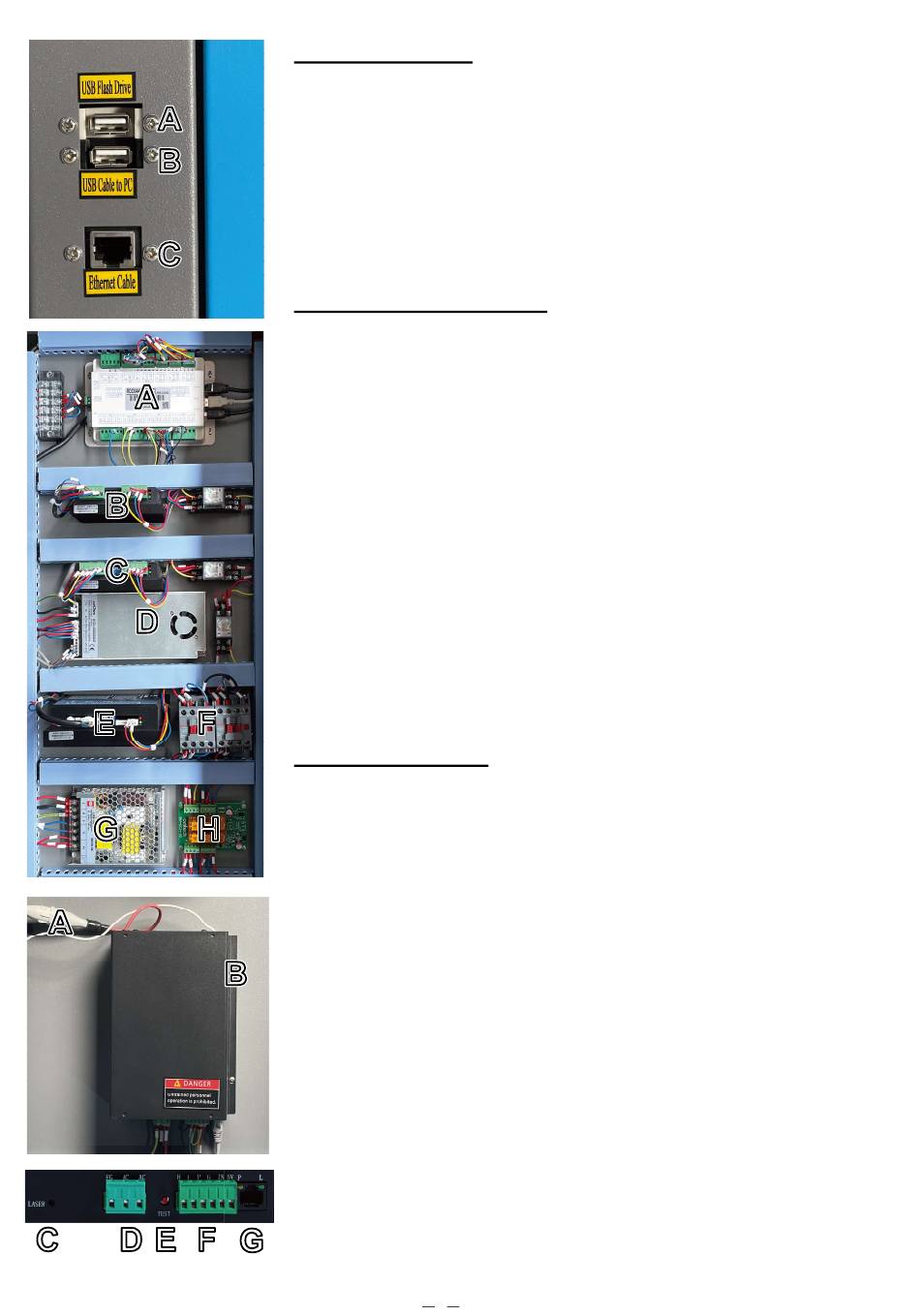

Connection Inputs
A. USB Port—This port allows you to load and save designs and parameters
directly onto the engraver.
B. USB Line Port—This port connects to your control computer and its engraving
software using any of its USB ports.
C. Ethernet Port—This port connects to your control computer and its software
either directly or via the internet.
Bottom Right Access Door
A. Mainboard—This circuit board controls the engraving process, responding to
commands from your engraving software or the machine's control panel.
B. X-Axis Driver—This device moves the laser head along the X rail.
C. Y-Axis Driver—This device moves the X rail along the Y rail.
D. Control Power Supply—This device powers the machine's control panel.
E. Z-Axis Driver—This device moves the workbed up and down.
F. Alternating Current Contactor—This device controls the flow of electricity
to a load by making and breaking electrical connections between the load and
the power source.
G. Safety Power Supply— This device powers the machine's safety relay,
indicator lights, and alternating current contactors.
H. Safety Relay— This device shuts off the laser's power when either the cover
or the front access door is opened during use or when the emergency shutoff
button is pressed.
Laser Power Supply
A. High-Voltage Wire—This line is connected to the laser tube's anode or
positive end, providing high-voltage current to power the laser.
B. Mounting Holes—These standard slots allow simple installation and removal.
C. Laser Indicator Light—This light shows when current is being sent to the
laser tube.
D. Main Power Terminal—This terminal block holds the power supply's
connection to the engraver's grounding (FG) and to the main power supply
(AC).
B B
E. Test Button—This button is used to attempt to test fire the laser when
troubleshooting problems. If the laser fires successfully, the problem will
usually be with the control panel or its connections.
F. Connection Terminal—This terminal block holds the connections to the high
(H) and low level output (L), the water protection switch (P), another ground
(G), and two laser signal controls (IN & 5V).
G. Ethernet Port—This port allows you to connect the laser power supply to an
external ammeter.
