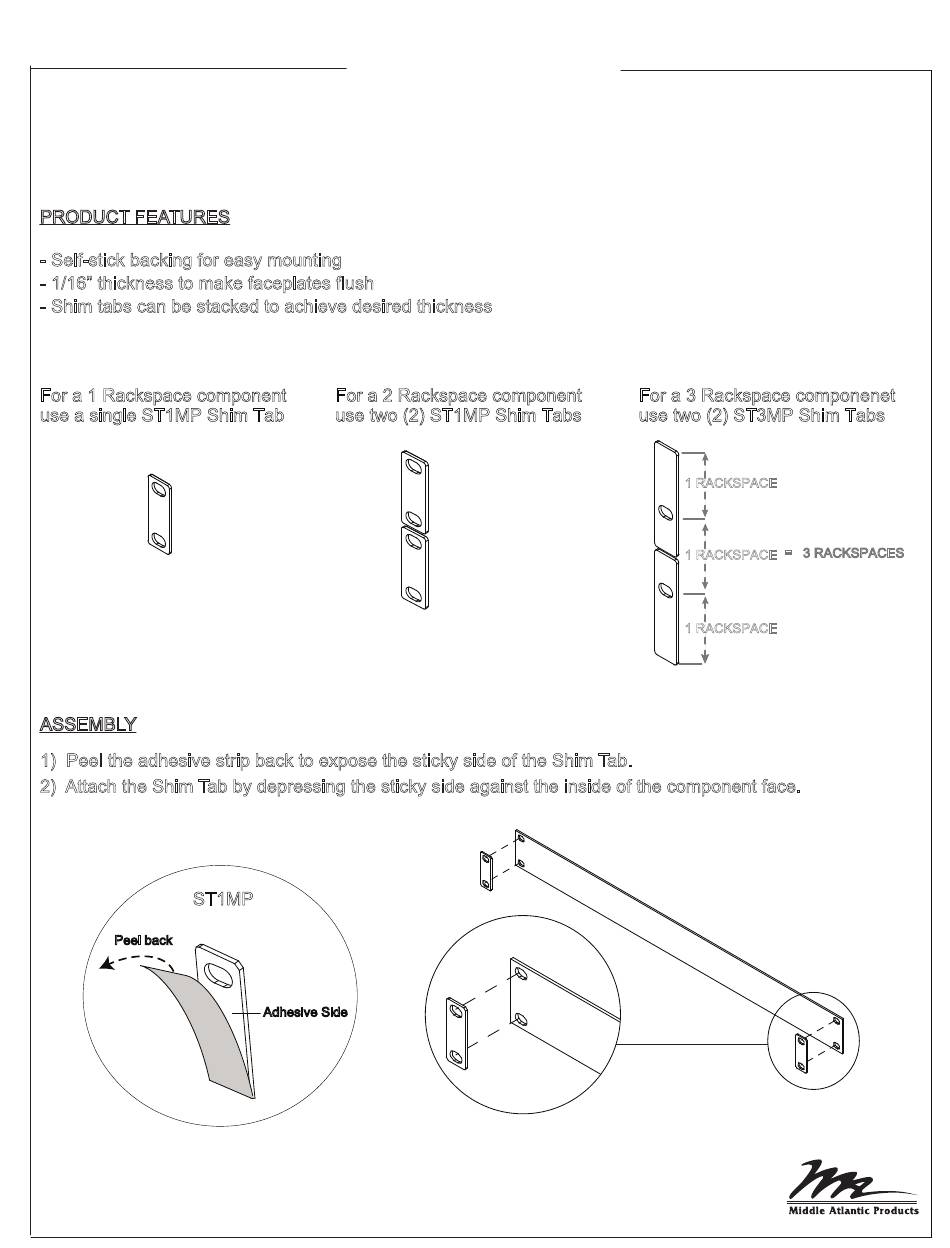

PRODUCT FEATURES
- Self-stick backing for easy mounting
- 1/16" thickness to make faceplates flush
- Shim tabs can be stacked to achieve desired thickness
For a 1 Rackspace component
use a single ST1MP Shim Tab
ASSEMBLY
1) Peel the adhesive strip back to expose the sticky side of the Shim Tab.
2) Attach the Shim Tab by depressing the sticky side against the inside of the component face.
ST1MP
Peel back
Instruction Sheet
ST Series
ST1MP, ST3MP SHIM TAB
For a 2 Rackspace component
use two (2) ST1MP Shim Tabs
Adhesive Side
For a 3 Rackspace componenet
use two (2) ST3MP Shim Tabs
1 RACKSPACE
= 3 RACKSPACES
1 RACKSPACE
1 RACKSPACE
I-00327
Rev -
