Middle Atlantic Products SLIM 5 Series Instruction Sheet

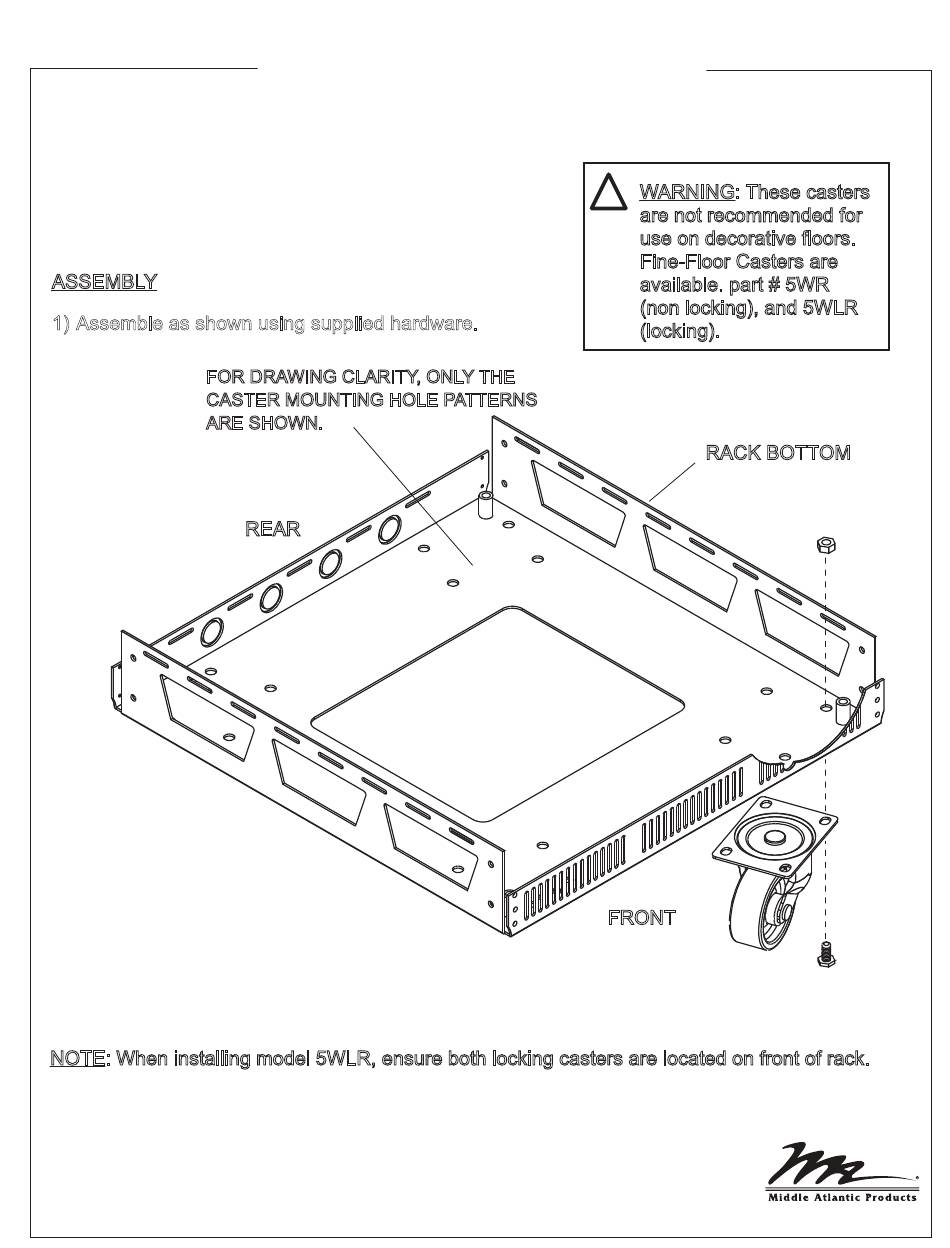

1) Assemble as shown using supplied hardware.

FOR DRAWING CLARITY, ONLY THE

CASTER MOUNTING HOLE PATTERNS

ARE SHOWN.

NOTE: When installing model 5WLR, ensure both locking casters are located on front of rack.

Instruction Sheet

SLIM 5 SERIES

Caster installation

REAR

WARNING: These casters

are not recommended for

use on decorative floors.

Fine-Floor Casters are

available. part # 5WR

(non locking), and 5WLR

(locking).

RACK BOTTOM

FRONT

I-0602

Rev K
