Pull-Down Kitchen Faucet (#1806260 / #1806352)
CAUTION: Risk of fresh water contamination. This faucet contains
back-siphonage protection. To prevent water contamination, do not
remove any internal components.
IMPORTANT! Thin stainless steel sinks may flex after faucet installation.
Consider adding 1/2" plywood support for a more rigid installation.
The product shown may differ from your actual product. The installation
steps still apply.
Follow all local plumbing and building codes.
If possible, install the faucet to the sink before installing the sink.
Turn OFF the water supplies.
READ AND FOLLOW ALL INSTRUCTIONS
SAVE THESE INSTRUCTIONS
Required Tools and Materials:
1A. Supply Stops
Installation Steps:

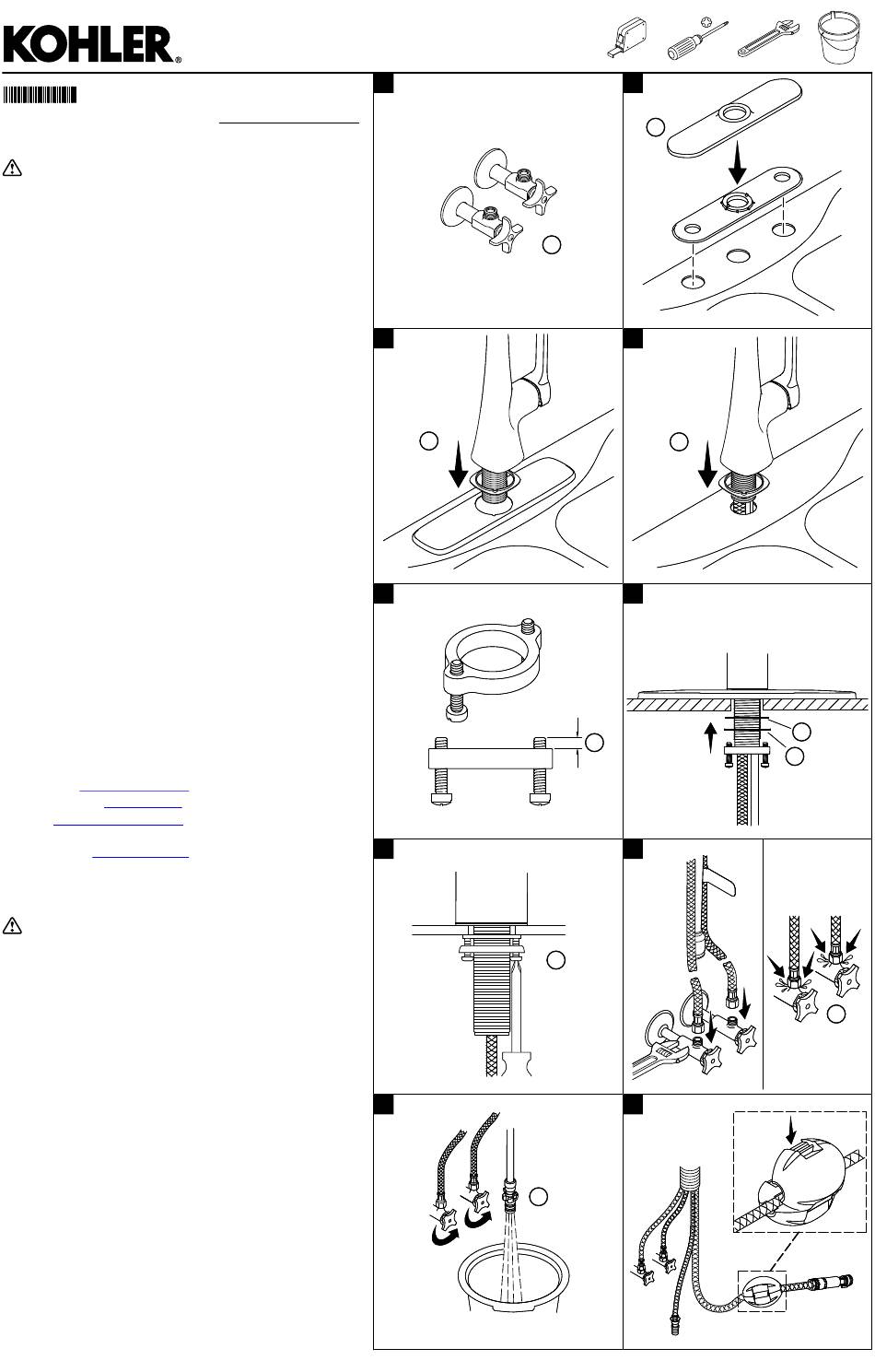

2A. For Three-Hole Sinks: Assemble as shown.
3A. For Three-Hole Sinks: Install the plastic base plate onto the faucet. Insert
the hoses and faucet into the sink.
4A. For Single-Hole Sinks: Install the plastic base plate onto the faucet. Insert
the hoses and faucet into the sink.
5A. Partially thread the screws into the ring until they extend 1/4" (6 mm) out
the opposite side.
6A. Rubber Washer
6B. Metal Washer
7A. Position the screws to the front and back. Tighten the screws.
8A. Turn ON the water supply and check for leaks.
9A. Flush hot and cold water for 1 minute to remove any debris.
11A. Align the spray hose with the outlet tube and click together.
12A. Position the weight between 2" (51 mm) and 3" (76 mm) above the
bottom of the hose loop. Snap the two halves of the weight together.
13A. Check for smooth operation.
14A. Adjust the weight as needed for proper positioning and operation.
15A. Maintenance: Periodically rub debris from the nozzles while water is
running.
16A. Maintenance: Periodically rinse debris from the screen washer.
Need help? Contact our Customer Care Center.
• USA/Canada: 1-800-4KOHLER (1-800-456-4537) Mexico: 001-800-456-4537
Hours of Operation: Monday-Friday 8:00 AM -5:00 PM (CT)
Languages Spoken: English, Spanish, and translation services are available.
• Service parts:
kohler.com/serviceparts
• Care and cleaning:
kohler.com/clean
• Patents:
kohlercompany.com/patents
This product is covered under the KOHLER ® Faucet Lifetime Limited
Warranty, found at kohler.com/warranty. For a hardcopy of warranty terms,
contact the Customer Care Center.
Robinet d'évier escamotable (n° 1806260 / n° 1806352)
ATTENTION : Risque de contamination de l'eau douce. Ce robinet
comprend une protection contre le siphonnement à rebours. Afin
d'éviter une contamination d'eau, ne pas retirer des composants internes.
IMPORTANT! Les éviers en acier inoxydable peu épais peuvent fléchir après
l'installation du robinet. Considérer ajouter un support de contreplaqué de
1/2 po pour une installation plus rigide.
Le produit en question pourrait être différent de celui qui est illustré. La
procédure d'installation reste la même.
Respecter tous les codes de plomberie et du bâtiment locaux.
Si possible, assembler le robinet sur le lavabo avant d'installer ce dernier.
Couper les alimentations en eau.
LIRE ET SUIVRE TOUTES LES INSTRUCTIONS
CONSERVER CES INSTRUCTIONS
Outils et matériaux requis :
1A. Robinets d'arrêt d'alimentation
Étapes d'installation :
2A. Pour les éviers à trois trous : Assembler comme sur l'illustration.
3A. Pour les éviers à trois trous : Installer la plaque de base en plastique sur
le robinet. Insérer les tuyaux et le robinet dans l'évier.
4A. Pour les éviers à un trou : Installer la plaque de base en plastique sur le
robinet. Insérer les tuyaux et le robinet dans l'évier.
5A. Enfiler partiellement les vis dans l'anneau jusqu'à ce qu'elles se
prolongent de 1/4 po (6 mm) vers l'extérieur du côté opposé.
6A. Rondelle en caoutchouc
6B. Rondelle en métal
7A. Placer les vis sur l'avant et l'arrière. Serrer les vis.
8A. Ouvrir l'alimentation en eau et rechercher des fuites éventuelles.
1603156-2
-
B
1
3
A A
5
7
9
A A
1
2
A A
A A
4
A A
6
A A
8
A A
10
A
A
B
B
A A
