Wireless Leaf & Soil Moisture/Temperature Station
Installation Manual
For Wireless Vantage Pro2

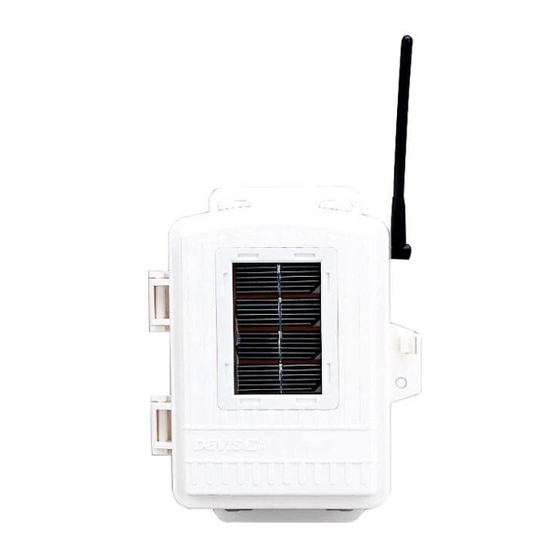

The Wireless Leaf & Soil Moisture/Temperature Station (referred to in this document
as the Leaf/Soil Station) can be used with any Wireless Vantage Pro2 weather station
to measure leaf wetness, soil moisture, or temperature.
The following Vantage Pro2 console station configurations can be used with the
Leaf/Soil Station:
Station Type in
Console
Configuration
LEAF/SOIL Station
LEAF Station
SOIL Station
• Only one Leaf/Soil Station can be installed as a Leaf/Soil Station per Vantage Pro2
Weather Station.
• Two stations can be installed if one is configured as a Leaf Station and the other
station is configured as a Soil Station in the Vantage Pro2 console.
• Configured as a Leaf Station, the Station supports two leaf wetness sensors and
two temperature probes.
• Configured as a Soil Station, it supports up to four soil moisture sensors and
temperature probes.
Note:
In any station using soil moisture sensors, the corresponding temperature probe, if installed, will be
used for temperature compensation of the soil moisture sensor.
Tools for Setup
In addition to the components shown, you will need some or all of the following
materials:
• Adjustable wrench or 7/16" wrench
• Medium Phillips Screwdriver
• Ballpoint pen or paper clip (small pointed object of some kind)
• Drill and 3/16" (5 mm) drill bit (if mounting on a vertical surface)
• Stepped Sensor Installation Tool for Soil Moisture and Temperature Sensors
(recommended, see page 16)
™
and Vantage Pro2 Plus
Number of Leaf
Wetness Sensors
2
2
-
Number of Soil
Moisture Sensors
4
-
4
™
Number of
Temp Probes
4
2
4
1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Davis Instruments 6345AU
Summary of Contents for Davis Instruments 6345AU
- Page 1 Wireless Leaf & Soil Moisture/Temperature Station Installation Manual ™ ™ For Wireless Vantage Pro2 and Vantage Pro2 Plus The Wireless Leaf & Soil Moisture/Temperature Station (referred to in this document as the Leaf/Soil Station) can be used with any Wireless Vantage Pro2 weather station to measure leaf wetness, soil moisture, or temperature.
- Page 2 Components The Leaf/Soil Station includes the following components and hardware: Shelter with 3-Volt Lithium Battery Installed U-Bolts 1/4" Flat Washers 1/4" Lock Washers 1/4" Hex Nuts 1/4" x 1-1/2" Lag Screws 8" Cable Ties 4" Cable Ties Optional Sensors The following optional sensors are available for the Leaf/Soil Station: #8 x 3/4"...
- Page 3 Installation Steps For ease of installation and use of your Leaf/Soil Station, please follow steps in the order presented. • Preparing the station, page 3 • Setting the transmitter ID, page 5 • Choosing a location to mount the station, page 8 •...
- Page 4 Remove the Battery 3-Volt Pull Tab Lithium Battery Remove 1. Remove the pull tab from battery pull tab the installed 3-volt lithium battery. Make sure the battery is firmly DIP Switch seated in the Test LED compartment. 2. Note the location of the SENSOR SENSOR DIP switches.
- Page 5 Soil Temperature Sensor Connection Temporarily connect a temperature probe to the TEMP 1 terminal block connector. 1. Use a pen or small screwdriver to open the connector “jaws” as shown in the illustration to the right. 2. While the jaws are open, insert the temperature probe leads, then let the connector jaws close in on the lead by removing the pen or small screwdriver.
- Page 6 Battery Holder DIP Switches Transmitter DIP Switches in Top-right Corner of SIM Setting Console/Receiver(s) to Same ID 1. Put your console into Setup Mode — press and hold DONE and press the down arrow (-). • The console displays the words: “RECEIVING FROM...” and “STATION NO.”...
- Page 7 Testing Station Communications 1. If you are using a Soil Moisture sensor to test the station, press TEMP until you see “SOIL MOIST” displayed on the console screen where the inside temperature is usually displayed. If you are using a Leaf Wetness sensor, press HUM until you see “LEAF WET”...
- Page 8 If the LED flashes repeatedly but your console isn’t picking up a signal anywhere in the room, it could be related to one of the following causes: • The DIP switches were not correctly set on the transmitter. Review the procedure on page 5.
- Page 9 Testing Transmission from Proposed Location It is very important to test reception from the proposed location before permanently mounting the Leaf/Soil Station. • Place the shelter at the intended mounting site, or have someone hold it there, so you can walk around with the console/receiver for a few minutes. Rotating the antenna so that the transmitting and receiving antennas are parallel to each other may help to improve reception.
- Page 10 2. Place a flat washer, a lock washer and a hex nut on each of the bolt ends. 3. Using an adjustable wrench or 7/16" wrench, tighten the nuts. 4. Place the second U-bolt around the pole and through the two holes at the bottom of the shelter.
- Page 11 • To use one soil temperature sensor to provide compensation for multiple soil moisture sensors, install the temperature sensor in TEMP 1. • If the station is configured as a combined LEAF/SOIL station, the value displayed for Leaf Temperature #1 will be same value displayed for Soil Temperature #1.
- Page 12 Finishing the Sensor Connections to the Station 1. Secure sensor cables within the cable SENSOR SENSOR clamps located next to the grommets. INTERFACE INTERFACE MODULE MODULE 2. Secure the cable clamps using the by Temperature Moisture screwing them to the cable clamp mounts inside the housing near the Cable Clamp grommets.
- Page 13 Mounting the Sensor on a Pipe To mount the sensor on a pipe, stake, or pole with outside diameter between 1" and 1-1/4" (25 mm and 31 mm), secure the sensor to the pipe using the 1-1/2" U-bolts, 1/4" flat washers, and 1/4" hex nuts as shown below.
- Page 14 console will use a default temperature of 75° F (24° C) to compensate the soil moisture readings. SENSOR SENSOR INTERFACE INTERFACE MODULE MODULE Temperature Moisture Cable Clamp Screw Cable Clamp Cable Clamp Mount Rubber Grommets Soil Moisture Temperature Leaf Wetness Sensor Cable Probe Cable Sensor Cable...
- Page 15 Sprinkler Irrigation • Sprinkler irrigation usually provides a more uniform distribution of water to the ground surface, but there can be great differences in penetration and holding capacity due to soil type variations, soil interfaces and contour. Try to place your sensors in the areas where variations occur.
- Page 16 • Guidelines on proper depths for specific crops and conditions can be obtained from your local farm advisor. Irrometer also maintains an excellent resource listing the suggested placement for soil moisture sensors by crop at www.irrometer.com. Installation Procedure 1. Soak the soil moisture sensors overnight in water. •...
- Page 17 • Carefully backfill the access hole with soil to eliminate any air pockets. 5. You can solvent weld the 1/2” Class 315 PVC Tape tubing to the sensor collar for easier installation and removal. • Use a PVC/ABS cement (IPS Weld-on #794 or equivalent).
- Page 18 Centibar Reading Soil Condition 0-10 Saturated Soil. Occurs for a day or two after irrigation. 10-20 Soil is adequately wet (except coarse sands which are dry- ing out at this range) 30-60 Usual range to irrigate or water (except heavy clay soils). Irrigate at the upper end of this range in cool humid climates and with higher water-holding capacity soils.
- Page 19 Contacting Technical Support For questions about the Wireless Leaf & Soil Moisture/Temperature Station please contact Davis Technical Support. We’ll be glad to help. Note: Please do not return items to the factory for repair before calling to get a Return Materials Authorization number.
- Page 20 Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. Changes or modifications not expressly approved in writing by Davis Instruments may void the user's authority to operate this equipment.
