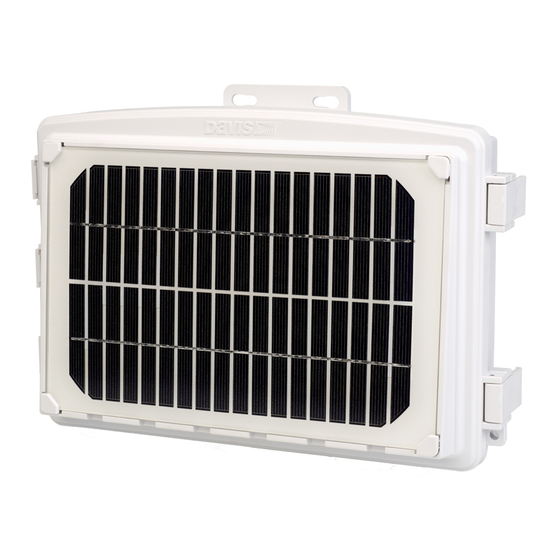

- Page 1 MANUAL Vantage ™ Connect ™ ™ For Vantage Pro2 , Vantage Pro2 Plus , ™ Vantage Vue and Weather Envoy Product numbers 6621, 6621C, 6622 & 6622C Davis Instruments, 3465 Diablo Avenue, Hayward, CA 94545-2778 U.S.A. • 510-732-9229 • www.davisnet.com...
- Page 3 ™ ® Vantage Pro2 , Vantage Vue , or other Vantage Pro2-compatible transmitting station to WeatherLink.com through the cellular network. You can view data online or through a smartphone, receive alarm e-mails or texts when preset weather ® conditions occur, or download data into your PC with WeatherLink software.
- Page 4 Backing Plates (not needed) Requirements • A Davis Vantage Pro2 or Vantage Vue integrated sensor suite (ISS) or other Vantage-Pro2 transmitting station (all sold separately) • CDMA, GSM/2G, 3G cellular network coverage in the area • Vantage Connect service plan (sold separately) Register &...
- Page 5 Vantage Connect (up to 8). Choose a station type for each. (For example, Vantage Pro2 ID: 1, Leaf and Soil Moisture Station: ID 2.) If using repeaters, check the “Enable Repeaters” box and choose the final repeater’s ID letter for each transmitter using repeaters.
-
Page 6: Prepare For Installation
• If necessary, you may calibrate temperature, humidity, and wind readings. (Be careful when deciding to calibrate; Davis weather stations are factory- calibrated for accuracy and may not match less accurate or less local data such as reported on television or a web page.) Enter the amount of offset you want the temperature or humidity reading to be reported. -
Page 7: Install The Vantage Connect
Connect the battery The Vantage Connect is shipped with one battery cable (the red, or positive cable) disconnected to prevent battery drain. Connect the red cable to the red terminal. Note: IMPORTANT: When putting your Vantage Connect into cold storage, disconnect the red cable. - Page 8 Mounting on a Flat Surface Attach the shelter to the mounting surface in the desired location using the lag screws and backing plates as shown below. Use a pencil or a center-punch to mark the location of the pilot hole. Mounting On a Pipe Mount the Vantage Connect onto a pipe with an outside diameter of 0.84'' to 1.84'' (21 mm to 27 mm) using the U-bolts, backing plates, washers, and hex nuts...
- Page 9 ° latitude, North or South, and you mount the Vantage Connect and a Vantage Pro2 or Vantage Vue sensor suite on the same pole, it is important to make sure the sensor suite does not shadow the Vantage Connect’s solar panel at midday, especially in the summer. If possible, mount the sensor suite and Vantage Connect so that they are at least 4 feet (1.2 m) apart.
-
Page 10: Access Data
four cell status lights will turn solid and stay on for a few minutes, indicating success. It can take several minutes to acquire all signals. See Vantage Connect: Normal and Error LEDs on page 12 to ascertain what error is being indicated and to report to Tech Support. Access Data See Current Data Online Once your Vantage Connect is registered on the network, powered up, and... -
Page 11: Appendix A: Using An External Temperature Probe With Vantage Connect
“inside temperature” reading. You will need an oval split grommet available upon request from Davis instruments (part number 7342.805). Remove the plug from of the holes in the bottom of the shelter and feed the probe cable up through the hole. -
Page 12: Troubleshooting
wall-plug adapter may be necessary for use in some countries.) In a cold environment, you will need to bring the Vantage Connect into a warmer environment (above -4°F/-20°C) to charge the battery with the AC Charger Kit., Troubleshooting How can I tell if my battery voltage is getting too low? Our server will monitor your battery voltage and will trigger an e-mail warning if it should get critically low (approximately 14 days of power). - Page 13 If I lose cell connectivity, but my Vantage Connect is still powered, how much data will be stored? The amount of data it can store is similar to a standard data logger and dependent on your archive interval or subscription plan interval. When the cell connection resumes, Vantage Connect will send this old data to weatherlink.com in what we call “catchup mode.”...
- Page 14 What do the LED lights indicate? If there is an error in getting a signal, the status LEDs will flash to indicate the type of error. Refer to the table below to ascertain what the LEDs mean so that you can report the problem to Technical Support.
-
Page 15: Contacting Davis Technical Support
Contacting Davis Technical Support For questions about installing or operating your Vantage Connect, please contact Davis Technical Support. We’ll be glad to help. Online www.davisnet.com See the Weather Support section for copies of user manuals, product specifications, application notes, software updates, and more. E-mail support@davisnet.com Telephone... - Page 16 • Consult the dealer or an experienced radio/TV technician for help. Changes or modification not expressly approved in writing by Davis Instruments may void the warranty and void the user's authority to operate this equipment. EC-Declaration of Conformity Radio Equipment Directive 2014/53/EU Vantage Connect 6622 (overseas models) complies with the essential protection requirements of the Radio Equipment Directive 2014/53/EU.
Need help?
Do you have a question about the Vantage Pro2 and is the answer not in the manual?
Questions and answers
the wind direction registers due north, I replaced the wind direction and speed unit and it still indicates north even though the wind vane moves feely
The Davis Instruments Vantage Pro2 wind direction still registers as due north (N/359 or 360 degrees) even after replacing the wind direction and speed unit because the station may not be receiving a usable or normal signal from the equipment. This issue can be caused by a worn potentiometer in the wind vane, which leads to sections of little or no connection. Additionally, if the console does not receive valid wind data, it may default to displaying a north reading. The problem persisted even after changing the ISS, console, and connecting wire, suggesting that multiple wind instrumentation assemblies might have similar faults.
