E Z-M
I
N S T A L L A T I O N
E
N E R G Y
H
E A L T H
This manual describes how to install the EZ-Mount Advanced Station.
Separate manuals included with the station cover the operation of the console
and sensors.

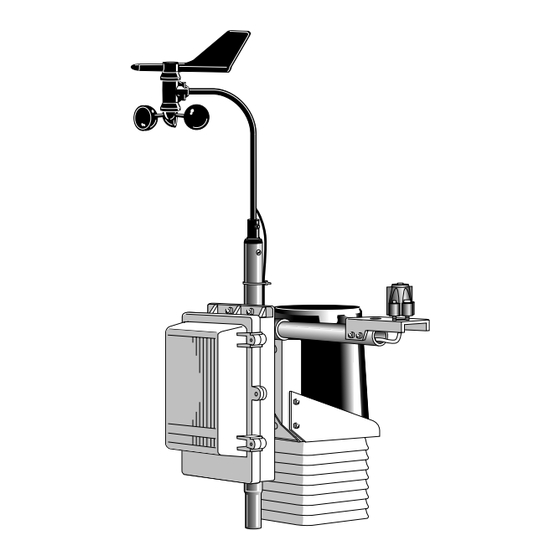

The EZ-Mount Advanced Stations are the "EZ" installation versions of the
GroWeather, Energy EnviroMonitor and Health EnviroMonitor stations. In
addition to the normal EZ-sensor suite, the advanced stations feature an EZ-
Sensor Arm for measuring Solar Radiation and/or UV (depending on the
station).
There are two installation options for the EZ-Mount Advanced Stations: stan-
dard and industrial. The industrial option offers greater protection from radio
frequency interference, electrostatic discharges, and voltage surges by provid-
ing 100 feet of shielded cable, an extra grounding wire, an ICAM (Interface
Cable Adapter Module) with its own grounding wire, and a 25 foot (7.5 m)
cable to connect the ICAM to the console.
Sensor Array
Standard Sensor Interface
Module (SIM) inside Field Case
Sensor Array
Industrial Sensor Interface
Module (SIM) inside Field Case
Additional products—such as the Alarm Output Module (AOM), Mounting
Tripod, EZ-Solar Power Kit, WeatherLink
tioned here but are not required (contact Davis for more information).
A
O U N T
M
A N U A L F O R
E
M
N V I R O
O N I T O R
E
M
N V I R O
O N I T O R

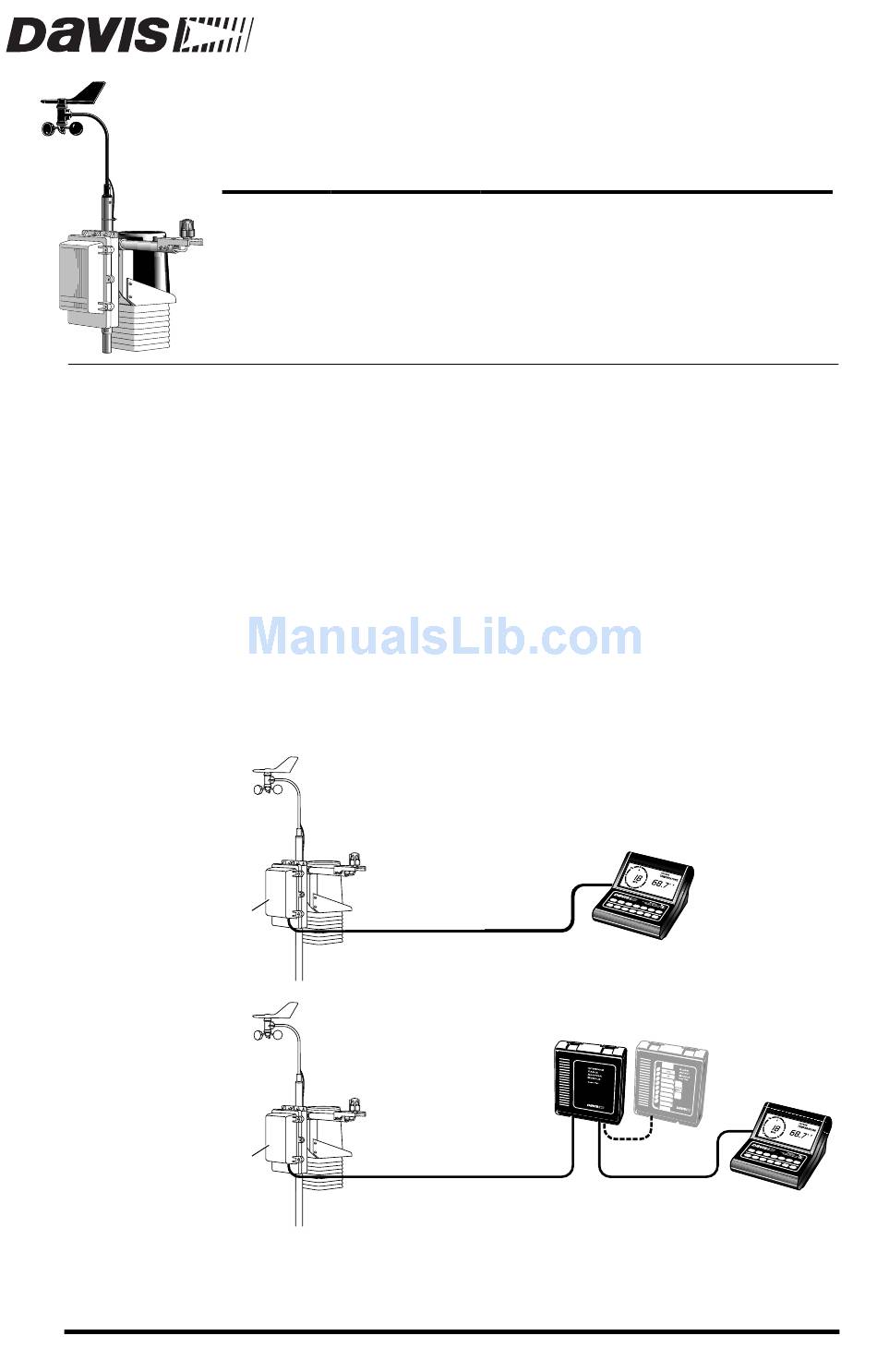

STANDARD INSTALLATION
100' Standard
8-Conductor Cable
INDUSTRIAL INSTALLATION
Interface Cable
Adapter Module
100' Shielded
8-Conductor Cable
Product # 7450EZ, 7455EZ, 7460EZ, 7465EZ, 7470EZ, 7475EZ (EU, UK, M)
D V A N C E D
G
R O
®
A N D
®
S
Y S T E M S
Console
(ICAM)
25' Standard
8-Conductor Cable
®
, and Grounding Kit—are men-
S
T A T I O N
®
W
,
E A T H E R
Optional Alarm
Output Module
(AOM)
Console

Advertisement

loading

Summary of Contents for Davis Instruments Energy EnviroMonitor

  • Page 1 Additional products—such as the Alarm Output Module (AOM), Mounting Tripod, EZ-Solar Power Kit, WeatherLink tioned here but are not required (contact Davis for more information). Product # 7450EZ, 7455EZ, 7460EZ, 7465EZ, 7470EZ, 7475EZ (EU, UK, M) O U N T...
  • Page 2 OMPONENTS The EZ-Mount Advanced Weather Station includes the following compo- nents. Please make sure you have everything you need before beginning. Anemometer Wind Cups This hardware comes installed on Sensor Array: #8 x 1-1/2" Pan HeadScrew #8 Lock Washer #8 Hex Nut Sensor Array 16.5' (5m) Ground Wire(s) (Not Shown)
  • Page 3: Tools And Materials Needed

    OOLS AND ATERIALS In addition to the components listed on page 2, you may need some of the fol- lowing tools and materials. Flat-Bladed Screwdriver Phillips Screwdriver Adjustable Wrench Wire Cutter or Scissors Wire Stripper or Knife (Industrial Installation Only) Electrical Tape Cable Clips or Weather-Resistant Cable Ties (with ability to be mounted) Hammer...
  • Page 4 ETTING TARTED Follow the steps below to install your station. At various stages of this installa- tion, you will be advised to test the system to ensure proper functioning. 1. Detach and remove the extension tube from the support tube by cutting the two black cable ties.
  • Page 5 4. Detach the rain collector cone and snip the cable tie. Detach the black rain collector cone from its base by rotating the cone counter-clockwise until its latches line up with the latch openings in the base and then raise the cone off. (The cone may be tightly attached to the base the first time.) Carefully cut and remove the black cable tie which holds the bucket in place during shipping.
  • Page 6 If you have a GroWeather , Davis recommends not tilting the solar radiation sensor. The GroWeather’s ET calculations assume that the solar radiation sensor points straight up.
  • Page 7 If you have a Health EnviroMonitor , on the other hand, Davis does recom- mend tilting the UV sensor. The Health’s temperature-humidity-sun-wind index calculations assume that the UV sensor is tilted according to your lati- tude. Additionally, maximizing UV readings (via tilting) gives the best indi- cation of potential health risk.
  • Page 8 7. Connect the sensor array field case to the console (see cover page schematic). Standard Stations: Plug the free end of the 100’ (30 m) 8-conductor cable on the sensor array into the jack labeled SENSOR INTERFACE underneath the console. Then skip to step 8 below. Industrial Stations: Connect the sensor array to the ICAM and then connect the ICAM to the console.
  • Page 9 NSTALLING TATION Choosing Locations for the Sensor Array and Console The cable that connects your sensor array to your console (or ICAM) is 100 feet (30 m) long. Choose a location where the cable can safely and reasonably con- nect with the console (or ICAM). Most people install the sensor array on the roofs of their houses, on fences, or in open fields where wind flow, sunlight, and rainfall are unobstructed by trees and nearby buildings.
  • Page 10: Mounting The Sensor Array

    Mounting the Sensor Array The sensor array has been pre-assembled for easy installation. However, you will still need to provide a solid mounting for the sensor array. Mounting hard- ware has been included for the most common installations (see figures below). If you are using the optional Mounting Tripod, consult the tripod’s manual for mounting instructions.
  • Page 11 Mounting the ICAM, Industrial Stations Only Use the hardware provided to install the ICAM in a sheltered, weather- protected area (or a Davis weatherproof shelter). Refer to the ICAM manual for instructions, if necessary. Remember to ground the ICAM to a proper ground such as a metal underground water main or grounding rod (as in Davis’...
  • Page 12 Recalibrating the Wind Vane The wind vane is pre-calibrated as if the anemometer arm were facing west. If you choose to mount your station in a different orientation—for example, in order to tilt the EZ-Sensor Arm for maximum readings—you need to recali- brate the wind vane.
  • Page 13 Mounting the Console 1. Plug the 8-conductor cable into the SENSOR INTERFACE jack on the console. 2. Apply power to the console (step 7 on page 8). 3. Install a backup battery in the console, if desired. If you are using the optional EZ-Solar Power Kit, do not install a backup battery .
  • Page 14: Troubleshooting

    ROUBLESHOOTING While the EZ-Mount Advanced Station is designed to provide years of trouble- free operation, occasional problems may arise. If you experience a problem, please check the troubleshooting tips below before calling tech support. Console does not register any rainfall Double check that you have cut the cable tie that secures the rain bucket during shipping.
  • Page 15 (M-F, 7 am–5:30 pm PST). Please do not return your unit for repair without prior authorization. One Year Limited Warranty For details on Davis’ warranty policy, please refer to the Maintenance, Service, and Repair Information brochure included with your station. FCC Part 15 Class B Registration Warning This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
  • Page 16 Product Numbers: 7450EZ, 7455EZ, 7460EZ, 7465EZ, 7470EZ, 7475EZ (EU, UK, M) Davis Instruments Part Number: 7395-305 EZ-Mount Advanced Station Installation Manual for GroWeather®, Energy EnviroMonitor® and Health EnviroMonitor® Systems Rev. A Manual (7/8/99) Controlled online: Weather Manuals/Consoles/EZ/EZ-Adv This product complies with the essential protection requirements of the EC EMC Directive 89/336/EC.
