Summary of Contents for Grundig GWPE69E415W

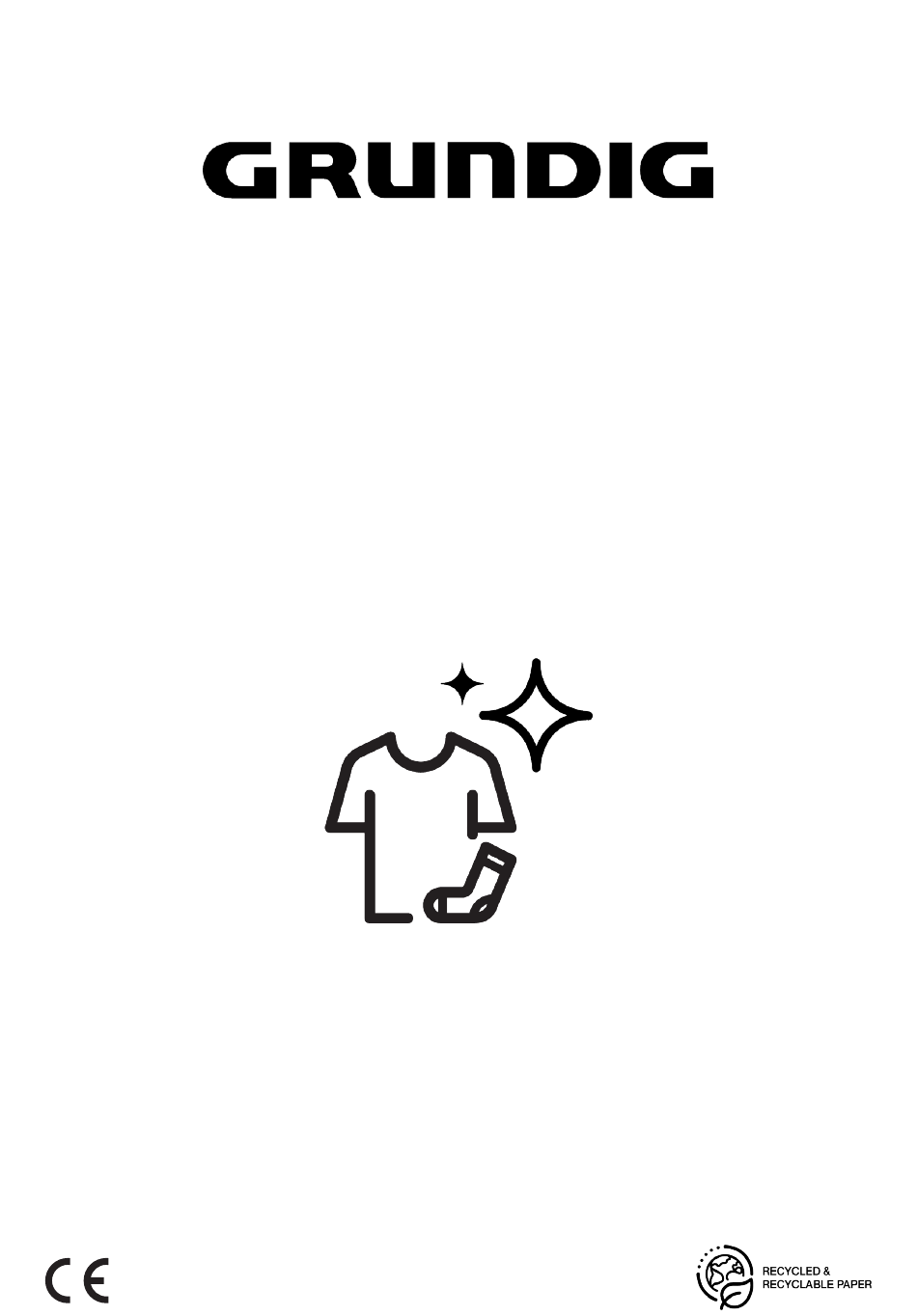

- Page 1 Washing Machine User Manual GWPE69E415W 2820532015/ EN/ / 27/05/2024 16:00...
- Page 2 Please read this user manual first! Dear Customer, Thank you for choosing Grundig product. We hope that you get the best results from your product which has been manufactured with high quality and state-of-the-art technology. Therefore, please read this entire user manual and all other accompanying documents carefully before using the product.
- Page 3 Auxiliary Function Selection..27 Table of Contents 6.8.1 Auxiliary Functions..... 27 1 Safety Instructions......6.8.2 Functions/Programmes Selec- Intended Use........ted by Pressing the Function Safety of Children, Vulnerable Keys for 3 Seconds ....Persons and Pets ......End Time ........29 Electrical Safety......
- Page 4 1 Safety Instructions This section includes the safety • This appliance is intended to instructions necessary to pre- be used in household and sim- vent the risk of personal injury or ilar applications. For example; material damage. – Personnel kitchens of stores, Our company shall not be held offices and other work envir- responsible for damages that...
- Page 5 with, climb on top or inside the • Do not tuck the power cord un- product. Check inside the der the product or to the rear product before use. of the product. Do not put • Use child lock to prevent chil- heavy items on the power dren from intervening with the cord.
- Page 6 • Never connect your product to product for installation and electricity saving devices. Such make sure the electrical mains, systems are harmful to the clean water mains and water product. outlet are suitable. If not, call a qualified electrician and Handling Safety plumber to have them make the necessary arrangements.
- Page 7 • Do not install the product at be minimum 0.1 MPa (1 bar) locations where the temperat- and maximum 1MPa (10 bars). ure drops below 0 ºC. 10 to 80 litres of water should • Do not place the product on a be running from the tap in a carpet or similar surface.
- Page 8 • Make sure pets do not climb Operational Safety inside the product. Check in- • When you are using the appli- side the product before use. ances, use only detergents, • Do not force open the locked softeners and supplements loading door.
- Page 9 – Make sure the room where • Do not put hands, feet and the washing machine is metal objects under or behind placed is well ventilated. your product. This can cause jams, and any sharp edge can – Wipe the door gasket and cause personal injury.
- Page 10 in the machine cools down in order to avoid risk of getting burnt. 2 Important Instructions for Environment 2.1 Compliance with WEEE Directive This product complies with EU WEEE Directive (2012/19/EU). This product bears a classifica- tion symbol for waste electrical and electronic equipment (WEEE).
- Page 11 3 Technical Specifications Manufacturer’s name or commercial brand GRUNDIG GWPE69E415W Model name 7100081600 Rated Capacity (kg) Maximum spin speed (cycle/min) 1400 Built-In Height (cm) 84,5 Width (cm) Depth (cm) Single Water inlet / Double Water inlet + / - Rated voltage / Rated frequency in hertz (V/Hz)
- Page 12 4 Installation 4.1 Appropriate Installation Location Please read the “Safety Instruc- tions” section first! • Place the product on a hard and level floor. Do not place it onto a carpet with Your washing machine automatic- high pile or other similar surfaces. Pla- ally detects the amount of laundry cing on an improper floor shall cause placed inside when selecting a pro-...
- Page 13 Cover A 3. Attach the plastic covers supplied in the User Manual bag into the holes on the rear panel. NOTICE Remove the transportation safety bolts before operating the product. Tilt the machine back slightly. Rest the tabs Otherwise, the product will get of Cover A against the lower panel.
- Page 14 vent the water leaks and resultant dam- of the hose into the waste water or do ages, keep the taps closed when you do not insert it into the drain for more than not use the product. 15 cm. If it is too long, cut it short. 5.
- Page 15 that shall be incurred due to using the Damaged power cables should be product without grounding according to replaced by the authorised service local regulations. in order to prevent possible danger. • Connection must comply with national 4.8 Start Up regulations.
- Page 16 • Tough stains must be treated properly provided for “Loading door cannot be before washing. opened” error in the Troubleshooting • Wash trousers and delicate laundry section. turned inside out. 5.5 Correct Load Capacity • Laundry that are subjected to materials such as flour, lime dust, milk powder, etc.
- Page 17 ( ) a syphon piece in the softener com- • Please review the programme descrip- tions part for suggested programme for partment, different textiles. ) there is a liquid detergent apparatus • All recommendations about detergents for liquid detergent use in the main wash- are valid for selectable temperature ing compartment.
- Page 18 • Clean with water at its place or by remov- • Wipe the inside of the product with a ing from its place when it is necessary. damp and clean cloth after using starch. Do not forget to place the apparatus in Using Anti-Limescale the main washing compartment (com- •...
- Page 19 Powder and liquid deter- It may be necessary to gents recommended for pre-treat the stains or per- colours can be used at form prewash. dosages recommended Prefer liquid deter- Liquid detergents Powder and liquid deter- for heavily soiled gents produced suitable for colours gents recommended for clothes.
- Page 20 6.1 Control Panel 1 Programme Selection Button 2 Temperature Level Indicator Lights 3 Spin Level Indicator Lights 4 Display 5 Start/Pause Button 6 End Time Setting Button 7 Auxiliary Function Button 3 8 Auxiliary Function Button 2 9 Auxiliary Function Button 1 10 Spin Speed Adjustment Button 11 Temperature Setting Button EN / 20...
- Page 21 6.2 Symbols on the Display 1 Temperature Indicator 2 Spin Speed Indicator 3 Duration Information 4 Door Lock Is Engaged Symbol 5 Programme Follow-up Indicator 6 No Water Indicator 7 Delayed Start Enabled Indicator 8 Auxiliary Function Indicators 3 9 Auxiliary Function Indicators 2 10 Child Lock Enabled Symbol 11 Auxiliary Function Indicators 1 12 No Spin Indicator...
- Page 22 6.3 Programme and Consumption Table Auxiliary functions Program Temperature °C 2,75 1400 • • • • • Cold - 90 Cottons 2,00 1400 • • • • • Cold - 90 1,20 1400 • • • • • Cold - 90 40*** 0,770 1400...
- Page 23 Please read Installation section of You can see the washing duration the manual before first use. on the display of your machine The auxiliary functions in the table while selecting a programme. De- may vary according to the model of pending on the amount of laundry your machine.
- Page 24 6.4 Programme Selection sured with intense washing movements. If the quick wash function is not selected, ef- 1. Determine the programme suitable for fective washing and rinsing performance is the type, quantity and soiling level of the ensured for your heavily soiled laundry. laundry in accordance with "Programme •...
- Page 25 special drum movement even if the temper- This is not a washing programme. ature is low. It is recommended to use li- Do not add chemicals such as de- quid detergent or woollen shampoo for tergent, bleach, stain remover, etc. dark coloured laundry.
- Page 26 dry in this programme. Before washing, gar- Whenever a new programme is selected, ment tags should be checked (recommen- the recommended temperature for the pro- ded for cotton shirts, trousers, shorts, t- gramme appears on the temperature indic- shirts, baby clothes, pyjamas, aprons, table ator.
- Page 27 If you are not going to unload your laundry Select the desired auxiliary functions be- immediately after the programme com- fore starting the programme. Whenever a pletes, you can use Rinse Hold function in programme is selected, icons of the auxili- order to prevent them from getting wrinkled ary function symbol that is selected to- when there is no water in the machine.
- Page 28 press the button once, the LED will turn off washing by reducing the amount of water and you will reach the appropriate pro- used, without compromising on washing gramme duration for your normally soiled performance. clothes/laundry. When you press the same •...
- Page 29 With the End Time function, the end time of You can switch on and off the ma- the programme may be set up to 24 hours. chine with On / Off button when the After pressing End Time button, the pro- Child Lock is active.
- Page 30 Additional laundry can be added To avoid any water overflow before into the machine during the End opening the loading door, make Time countdown. At the end of the sure there is no water left inside the countdown, End Time indicator machine.
- Page 31 You can also change the speed and tem- perature settings. See ‘’Spin speed selec- tion" and "Temperature selection". The loading door will not open if the water temperature in the machine If the water level in the machine is not suit- is high or the water level is above able when you press Start/Pause button, the loading door baseline.
- Page 32 7.1 Cleaning the Detergent Drawer After every washing make sure that no for- eign substance is left in the product. Clean the detergent drawer at regular inter- If the holes on the door gasket shown in the vals (once every 4 to 5 wash) as mentioned figure is blocked, open the holes using a below to prevent accumulation of powder toothpick.
- Page 33 propriate brush. If the filters are too Temperature of the water inside the dirty, remove them from their places product may rise up to 90 ºC. To with a pliers and clean in this way. avoid the risk of scalding, clean the filter after the water inside the 3.
- Page 34 8 Troubleshooting • A hard substance has entered into the Please read the “Safety Instruc- pump filter. >>> Clean the pump filter. tions” section first! • Transportation safety bolts are not re- moved. >>> Remove the transportation Programmes do not start after the loading safety bolts.
- Page 35 • Loading door may be stuck because of • Timer may stop during spinning step. >>> the pressure it is subjected to. >>> Grab Automatic unbalanced load detection the handle and push and pull the loading system is activated due to the unbal- door to release and open it.
- Page 36 • Excessive amount of detergent is used. • A higher temperature was selected. >>> >>> Use the recommended amount of de- Select the proper programme and tem- tergent appropriate for water hardness perature according to the type and soiling and the laundry. degree of the laundry.
- Page 37 softener step. Wash and clean the drawer • Some meshed laundry such as tulle may with hot water. Put the detergent in the foam too much because of their texture. correct compartment. >>> Use smaller amounts of detergent for • Detergent was mixed with the softener. this type of item.
- Page 38 (who are not au- comply with the above thorized by Grundig ) shall void the guaran- The spare part availability of the washing tee. machine or washer-dryer that you pur- chased is 10 years.
