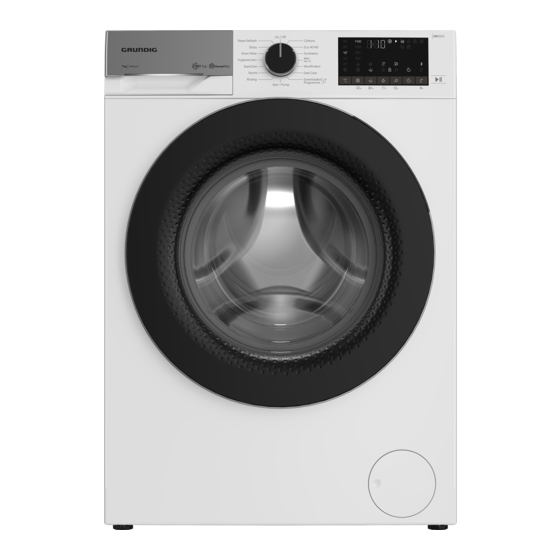

Grundig GWP5741W User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Washing Machine
User Manual
GWP5741W
EN
1911862178/ EN/ / 09/06/2023 15:34

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GWP5741W and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Grundig GWP5741W

Summary of Contents for Grundig GWP5741W

  • Page 1 Washing Machine User Manual GWP5741W 1911862178/ EN/ / 09/06/2023 15:34...

  • Page 2: Table Of Contents

    Auxiliary Function Selection..27 Table of Contents 6.8.1 Auxiliary Functions..... 27 1 Safety Instructions......6.8.2 Functions/Programmes Selec- Intended Use........ted by Pressing the Function Safety of Children, Vulnerable Keys for 3 Seconds ....Persons and Pets ......End Time ........29 Electrical Safety......
  • Page 3 Please read this user manual first! Dear Customer, Thank you for choosing Grundig product. We hope that you get the best results from your product which has been manufactured with high quality and state-of-the-art technology. Therefore, please read this entire user manual and all other accompanying documents carefully before using the product.

  • Page 4: Safety Instructions

    1 Safety Instructions This section includes the safety – Personnel kitchens of stores, instructions necessary to pre- offices and other work envir- vent the risk of personal injury or onments; material damage. – Ranches, Our company shall not be held –...

  • Page 5: Electrical Safety

    with, climb on top or inside the • Do not tuck the power cable product. Check inside the under and behind the product. product before use. Do not place heavy objects on • Use child lock to prevent chil- the power cable. Do not over dren from intervening with the bend, crush and touch the product.

  • Page 6: Installation Safety

    move the product. The upper • Injuries may occur if hands are tray should be tightly fixed for put into uncovered slots. Close moving. the holes of the transportation • Your product is heavy; it safety bolts with plastic plugs. should be carried carefully by •...

  • Page 7: Operational Safety

    come out their seats or sock- • There is a risk of contact with ets with a risk of water con- electrical pieces when the up- tact. per trays is removed. Do not • Use the new hose set provided dismantle the upper tray of the with the product.

  • Page 8: Maintenance And Cleaning Safety

    • Detergent/maintenance mater- • If washing laundry at high tem- ials may splash out of the de- peratures, the discharged tergent drawer if it is opened washing water would burn your while the machine is working skin if in contact with your Contact of the detergent with skin, for ex.

  • Page 9: Important Instructions For Environment

    soap, detergent, gas, gasoline, • Do not dismantle the filter of thinner, alcohol, varnish, etc. the discharge pump while the while cleaning. product is running. • Cleaning agents containing • The temperature in the ma- solvents might reek poisonous chine may rise up to 90ºC. fumes( for ex.

  • Page 10: Technical Specifications

    3 Technical Specifications Supplier’s name or commercial brand GRUNDIG GWP5741W Model name 7002740022 Nominal Capacity (kg) Maximum spin speed (cycle/min) 1400 Built-In Height (cm) 84,5 Width (cm) Depth (cm) 49,6 Single Water inlet / Double Water inlet + / -...

  • Page 11: Installation

    4 Installation • Total weight of the washing machine and Please read the “Safety Instruc- the dryer -with full load- when they are tions” section first! placed on top of each other reaches to approx. 180 kilograms. Place the product Your washing machine automatic- on a solid and flat floor that has suffi- ally detects the amount of laundry...

  • Page 12: Removing Transportation Safety Bolts

    • Cover B and the Cap are optional. If avail- NOTICE able, attach cover B and the Cap. Keep the transportation safety bolts in a safe place to reuse when Cover B the product needs to be moved again in the future. Install the transportation safety bolts in reverse order of the disas- sembly procedure.

  • Page 13: Connecting The Drain Hose To The Drain

    4.5 Connecting the Drain Hose to leaks, always secure the connection between the extension hose and the the Drain draining hose of the product with a suit- 1. Attach the end of the drain hose directly able clamp so that it does not come off to waste water drain, washbasin or and cause leaks.

  • Page 14: Preliminary Preparation

    ply the method which is described in sec- Some water has remained in the tion "Cleaning the loading door and the product due to the quality control drum". processes in the production. It is not harmful for the product. 5 Preliminary Preparation •...

  • Page 15: Loading The Laundry

    • Do not use more detergent than the re- commended amount on the detergent packaging. 5.4 Loading the Laundry 1. Open the loading door. 2. Put the laundry items into the product in a loose manner. 3. Push the loading door to close until you hear a locking sound.
  • Page 16 Choosing the Detergent type WARNING Detergent type to be used depends on the Do not use liquid detergents or washing programme, fabric type and col- other materials with cleaning prop- our. erties unless they are intended for • Use different detergents for coloured and use in washing machines for white laundry.

  • Page 17: Tips For Efficient Washing

    • Do not mix and use bleach and detergent Using Starch together. • Put in the liquid starch, powder starch or • As bleach may cause skin irritation use fabric dye in the softener compartment. only small amounts (1/2 tea cups - ap- •...

  • Page 18: Displayed Programme Duration

    Powder and liquid deter- It may be necessary to gents recommended for pre-treat the stains or per- colours can be used at form prewash. dosages recommended Prefer liquid deter- Liquid detergents Powder and liquid deter- for heavily soiled gents produced suitable for colours gents recommended for clothes.

  • Page 19: Control Panel

    6.1 Control Panel 1 Programme Selection Button 2 Temperature Level Lights 3 Spin Level Indicator Lights 4 Display 5 Start/Pause Button 6 Remote Control Button 7 End Time Setting Button 8 Auxiliary Function Button 3 9 Auxiliary Function Button 2 10 Auxiliary Function Button 1 11 Spin Speed Adjustment Button 12 Temperature Setting Button...

  • Page 20: Symbols On The Display

    6.2 Symbols on the Display 1 Temperature Indicator 2 Spin Speed Indicator 3 Duration information 4 Door lock is engaged symbol 5 Programme follow-up indicator 6 No Water indicator 7 Add Garment Indicator 8 Bluetooth Connection Indicator 9 Remote Control Indicator 10 Delayed Start Enabled Indicator 11 Auxiliary Function Indicators 3 12 Child Lock Enabled symbol...

  • Page 21: Programme And Consumption Table

    6.3 Programme and Consumption Table Auxiliary Functions Programme Temperature °C 2,30 1400 • • • • • Cold - 90 Cottons 1,70 1400 • • • • • Cold - 90 0,95 1400 • • • • • Cold - 90 40*** 7 0,645 1400...
  • Page 22 Please read Installation section of You can see the washing duration the manual before first use. on the display of your machine The auxiliary functions in the table while selecting a programme. De- may vary according to the model of pending on the amount of laundry your machine.

  • Page 23: Programme Selection

    6.4 Programme Selection sured with intense washing movements. If the quick wash function is not selected, ef- 1. Determine the programme suitable for fective washing and rinsing performance is the type, quantity and soiling level of the ensured for your heavily soiled laundry. laundry in accordance with "Programme •...
  • Page 24 tains crease less. Do not load your curtains Allergy UK is the brand of the Brit- above the specified capacity in order not to ish Allergy Association. Seal of Ap- damage them. proval is created to guide people that require recommendation about It is recommended to use special a product that the related product detergents produced for curtains in...
  • Page 25 • Dark Care Below you can find the soil groups that can be selected with the “Quick Wash” Use this programme to protect the colour setting button: of your dark-coloured garments or jeans. It performs high performance washing with When “Quick Wash” is not selected; special drum movement even if the temper- Sweat, collar dirt, food, mayonnaise, salad ature is low.

  • Page 26: Temperature Selection

    and spinning profile, the soft toys pro- If you scroll to cold wash option gramme protects the toys during washing. and press Temperature Adjustment It is recommended to use liquid detergent. button again, the recommended maximum temperature for the se- Fragile toys with hard surfaces lected programme appears on the must not be washed under any cir-...

  • Page 27: Auxiliary Functions

    No change can be made in pro- When an auxiliary function button grammes where spin speed adjust- that cannot be selected with the ment is not allowed. current programme is pressed, the washing machine will make a warn- You can change the spin speed after the ing sound.

  • Page 28: Functions/Programmes Selec- Ted By Pressing The Function Keys For 3 Seconds

    Do not use Quick Wash adjustment button 6.8.2 Functions/Programmes Selec- when washing heavily soiled laundry for a ted by Pressing the Function better washing performance. Keys for 3 Seconds Use the Quick Wash button for Mildly and Lightly soiled laundry and shorten the pro- •...

  • Page 29: End Time

    cancelled or the step is complete. If the • Bluetooth function is not cancelled, it will be active in You can use the bluetooth connection func- the subsequent washing cycles as well. tion to pair your machine with your smart device.

  • Page 30: Starting The Programme

    Programme duration may differ When you have activated the End from the values in section "Pro- Time function, do not add liquid de- gramme and consumption table" tergent in the powder detergent depending on the water pressure, compartment no 2. There is the risk water hardness and temperature, of staining of the clothes ambient temperature, amount and...

  • Page 31: Loading Door Lock

    4. Programme follow-up indicator lights on the display will show the current pro- gramme step. 6.11 Loading Door Lock There is a locking system on the loading 3. Pull down the loading door emergency door of the machine that prevents opening handle with a tool and release.

  • Page 32: Cancelling The Programme

    If the water level in the machine is not suit- You can also change the speed and tem- able when you press Start/Pause button, perature settings. See ‘’Spin speed selec- the door lock cannot be deactivated and tion" and "Temperature selection". the door lock symbol on the display re- The loading door will not open if the mains on.

  • Page 33: Homewhiz Setup

    to perform various operations on the ma- All the safety measures described chine. Furthermore, you can use some fea- in "GENERAL SAFETY INSTRUC- tures only with HomeWhiz function. TIONS" section of your user In order to use the Bluetooth feature of your manual apply to the remote opera- machine, you must download HomeWhiz tion through HomeWhiz function as...

  • Page 34: Setting Up A Washing Machine Connected To Someone Else's Account

    4. Follow the instructions in display of HomeWhiz application. HomeWhiz Application may require 5. Wait until the installation is complete. you to type the product number Once the setup is completed, give your shown on the product label. You washing machine a name. Now, you can can find the product label inside of tap and see the product you have added the appliance door.

  • Page 35: Remote Control Function And Using It

    6.15.3 Remote Control Function ing the front door. Once access is estab- lished to the product, you will see a screen and Using It similar to the one below. Bluetooth is automatically turned on after setting up HomeWhiz. To activate or deac- tivate the Bluetooth connection, please see Bluetooth 3’’’.

  • Page 36: Maintenance And Cleaning

    3. Turn bluetooth off and then on via user 4. If the connection cannot be established control panel. with the above processes, repeat the ini- tial set-up settings on the washing ma- chine. If the problem persists, consult an Author- ised Service Agent.

  • Page 37: Cleaning The Body And Control Panel

    7.3 Cleaning the Body and Control draining of washing water. Thus, the water will be drained without any problem and the Panel service life of the pump will extend. Wipe the body of the product with soapy If the product fails to drain water inside it, water or non-corrosive mild gel detergents the pump filter is clogged.

  • Page 38: Troubleshooting

    • Completely turn and remove the pump fil- If the product does not have an emer- ter when the water in the product leaks gency water draining hose, in order to out. drain the water: 1. Clean any residues inside the filter as well as fibres, if any, around the pump impeller region.
  • Page 39 • Product is leaning on a rigid item. >>> Washing takes longer than specified in Make sure that the product is not leaning the user manual. (*) on anything. • Water pressure is low. >>> Product waits until taking in adequate amount of water There is water leaking from the bottom to prevent poor washing quality due to of the product.
  • Page 40 Programme duration does not count- Washing performance is poor: Stains down. (*) persist or the laundry is not whitened. (**) • There is unbalanced load in the product. >>> Automatic unbalanced load detection • Insufficient amount of detergent is used. system is activated due to the unbal- >>>...
  • Page 41 • A higher temperature was selected. >>> softener step. Wash and clean the drawer Select the proper programme and tem- with hot water. Put the detergent in the perature according to the type and soiling correct compartment. degree of the laundry. •...

  • Page 42: Disclaimer / Warning

    “Self-Repair” section below, repairs repairs by professional repairers (who shall be addressed to registered profes- are not authorized by Grundig ) shall void sional repairers in order to avoid safety is- the guarantee. sues. A registered professional repairer is a...
  • Page 43 (an up- dated list is also available in sup- port.grundig.com as of 1st of March 2021) Moreover, to ensure product safety and to prevent risk of serious injury, the mentioned self-repair shall be done following the in-...
  • Page 44 When the appliance is turned off, pressing 1 and 2 auxiliary function buttons are pressed for a long time, a 3-2-1 countdown, and the total washing cycles completed on the appliance is displayed. After the total washing cycle is displayed, the failure codes, if any, are displayed. Check the information on the screen through the table below.
