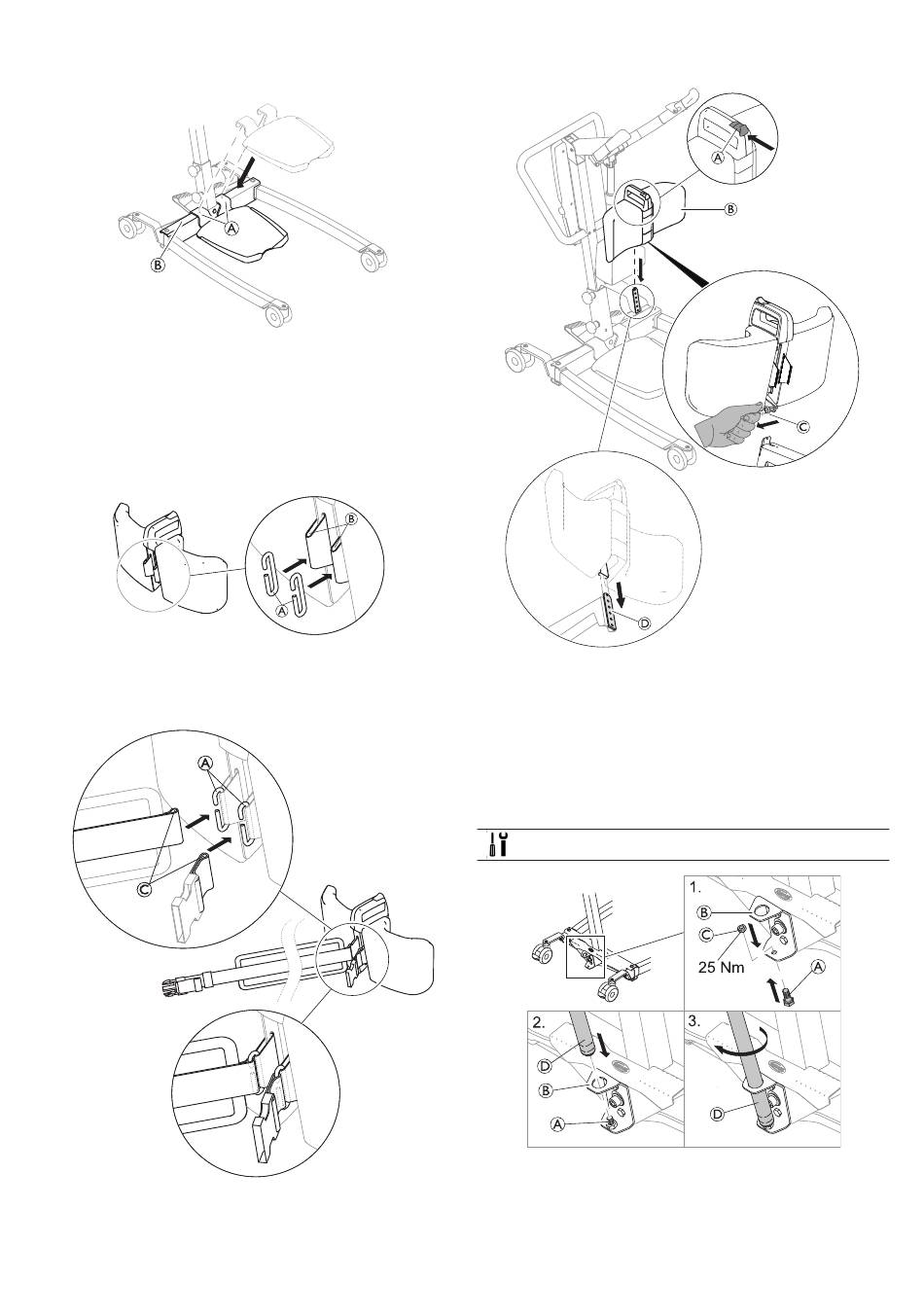

4.4 Installing the foot plate
1.
Lower the foot plate onto the base until the brackets A
are fully seated on tube B.
4.5 Installing the leg band
(optional)
1.
Thread the two hooks A into lugs B on the back side of
the leg support.
2.
Thread the loops C of the two leg band parts into the
hooks A.
60128513-D
4.6 Installing the leg support
1. Push and hold the button A on the leg support B.
2. Pull and hold the spring loaded plunger pin C on the back
of the leg support B.
3. Slide the guide bar on the back of the leg support B onto
its mounting plate D on the mast.
4.7 Installing the lever for manual leg
spreader
2 x 13 mm wrench
1. Insert the bolt A from below into the lower hole of the
bracket B and fix it with the nut C.
2. Insert the threaded end of lever D into the upper hole of
bracket B onto the fixed bolt A.
3. Turn the lever D clockwise to screw it onto the bolt.
