Barco QDX Series Quick Start Manual

Environment conditions
Operating
Environment
Ambient Temporary event: 0°C (32°F) to 40°C (104°F)
temperature
Permanent install
Humidity 0% RH to 80% RH Non-condensed
Altitude 0 m (0 ft) to 3000 m (9843 ft)
Air cleanness Clean office environment
Air clearance Air outlets: minimum 60 cm (2 ft)
Air inlets: minimum 10 cm (4 inch)
Air exhaust Nominal: 140 l/s (300 CFM)
Maximum: 300 l/s (650 CFM)
Main Power requirements
• The projector operates from a nominal mono phase power net with a separate earth ground PE.
Power requirements : 100-160 V (reduced power) / 200-240 V~, 22 A, 50/60 Hz.
•
The projector must be grounded.
•
• The power cord delivered with the projector must be used.

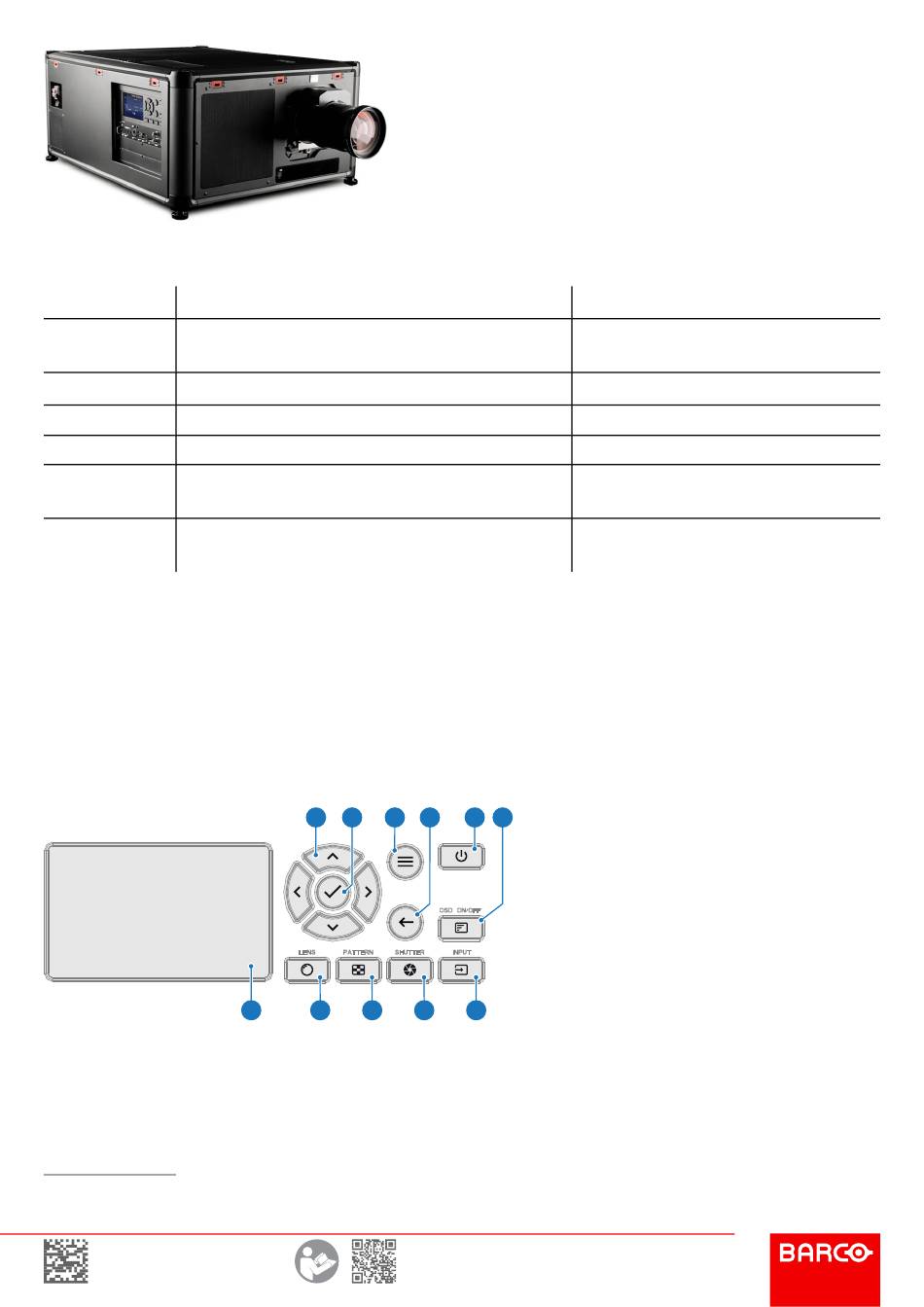

Local keypad overview
1 Navigation
2 Confirmation
3 Menu enter/exit
4 Menu back
5 Power On/Off
6 OSD On/Off
1. Recommended temperature range for fixed installs
2. Equivalent with cleanroom standard ISO 14644-1 ISO Class 9. If not, an environment protection housing must be used.
R5917032 /02 | 2024-10-08
1 : 5°C (41°F) to 30°C (86°F)
2
1 2 3
11 10 9
Quick Start Guide
Non-Operating
-10°C (-14°F) to 60°C (140°F)
5% RH to 90% RH Non-Condensed
-60 m (-197 ft) to 5000 m (16404 ft)
n.a.
n.a.
n.a.
4 5 6
8 7
7 Input selection
8 Shutter open/close
9 Test patterns
10 Lens menu
11 LCD touch panel
ENABLING BRIGHT OUTCOMES
QDX
