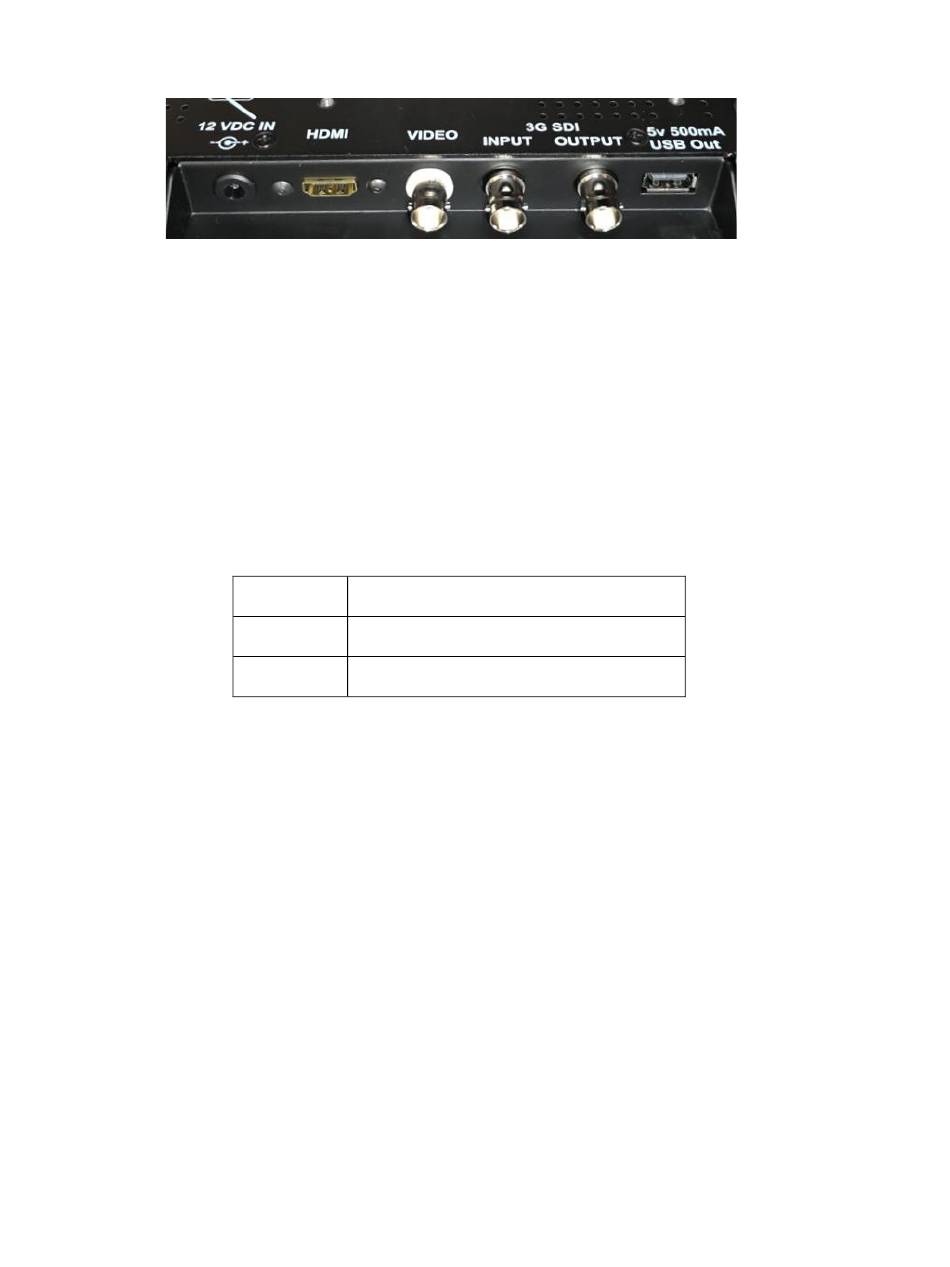

10.0 Connectors and Controls
10.1 DC Power
The CueScript EMCSDI17 Monitor require a regulated supply of 12 volts DC rated at 3 Amps.
Alternatively, a battery with sufficient capacity may be used.
Monitor Connector type:
Mating (cable) connector:
10.2 HDMI In
Monitor Connector type:
EMC17SDI Monitor Manual
2.5mm X 5.5mm Male coaxial plug
2.5mm X 5.5mm Female coaxial socket
Pin Description
Outer Shell GROUND (connected to monitor chassis)
Center Pin +12V DC
19 pin HDMI socket: Pin connections are standard HDMI. The input is
compatible with HDMI 1.3 / 1.4 / 1.4a.
