CueScript EMC17SDI Installation And Operation Manual page 10

11.0 Operation

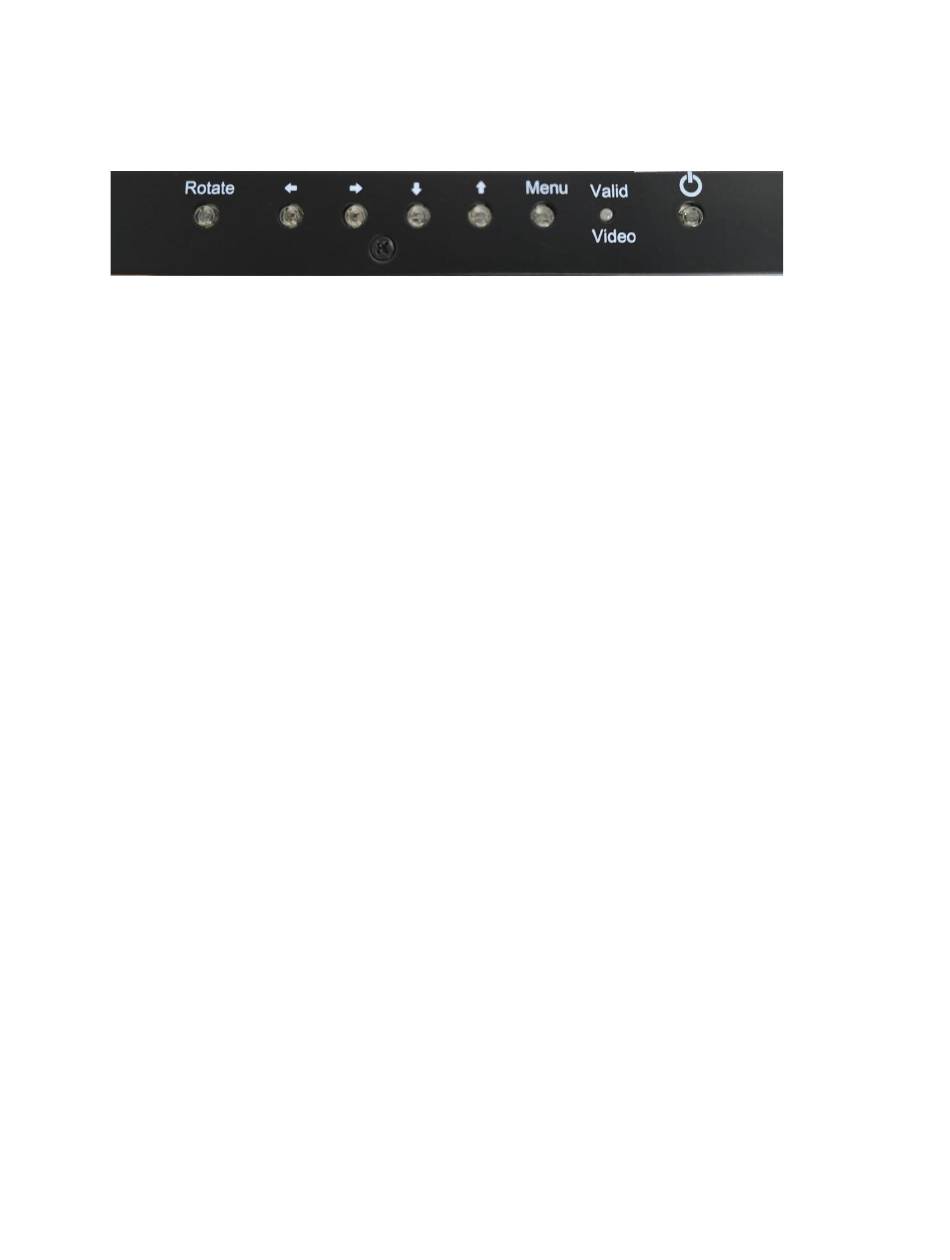

11.1 Control Panel
There are 7 buttons on the right side of the prompter. All of these buttons are illuminated and all of
them increase brightness when touched. After a short period of time when no buttons have been
pushed, they will revert to their low brightness level.
11.1 Buttons
A. Power Button
Pressing the power button will turn the monitor on. To turn the monitor off, you must press and hold the
power button until the monitor turns off.
B. Rotate Button
Pressing the rotate button will cause the screen to "flip" in both the horizontal way and the vertical way for a
total of four possible ways. Successively pressing the rotate button while watching the prompting mirror,
allows for a quick set up for proper operation.
C. Menu keys
There is a group of four buttons arranged as Up and Down, and Left and Right. The operation of these buttons
for the on-screen display is as follows:
EMC17SDI Monitor Manual
10
