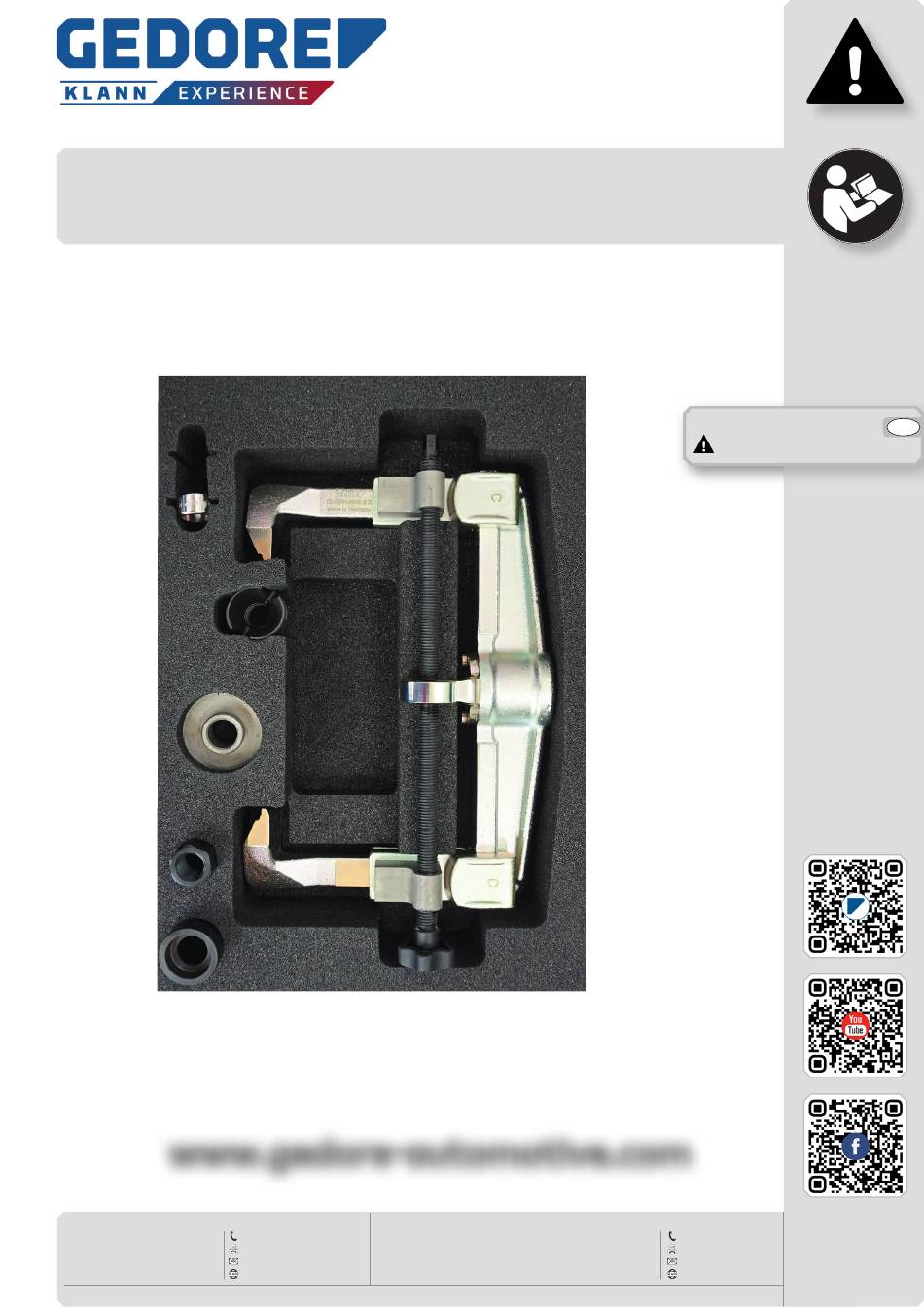

Wheel Hub Extractor, in Foam Insert
www.gedore-automotive.com
www.gedore-automotive.com
GEDORE Automotive GmbH
Breslauer Straße 41
78166 - Donaueschingen
Postfach 1329
78154 Donaueschingen - GERMANY
Worldwide GEDORE service centers and offices are listed on the Internet at: www.gedore.com
KL-0041-380 EA
GEDORE TOOLS, INC.
+49 (0) 771 / 8 32 23-0
Only for USA, Canada & Mexico / Sólo para EE.UU., Canadá y México
+49 (0) 771 / 8 32 23-90
Seulement pour les USA, le Canada et le Mexique
info.gam@gedore.com
7187 Bryhawke Circle, Suite 700
gedore-automotive.com
North Charleston, SC 29418, USA
Operating instructions
Read and understand before use!
+1-843 / 225 50 15
+1-843 / 225 50 20
Version 4 - 03/2022
info@gedoretools.com
gedore.com
0041-380EA_EN211205.indd
EN
Advertisement
Related Manuals for Gedore KL-0041-380 EA
Summary of Contents for Gedore KL-0041-380 EA
- Page 1 +1-843 / 225 50 20 Version 4 - 03/2022 Postfach 1329 info.gam@gedore.com 7187 Bryhawke Circle, Suite 700 info@gedoretools.com 78154 Donaueschingen - GERMANY gedore-automotive.com North Charleston, SC 29418, USA gedore.com 0041-380EA_EN211205.indd Worldwide GEDORE service centers and offices are listed on the Internet at: www.gedore.com...
- Page 2 Instructions for use and safety are not binding. They never substitute for any legal or trade association regulations. We do not accept any liability for printing errors. Any reproduction, in whole or in part, requires the prior written consent of GEDORE Automotive GmbH. All rights reserved worldwide. © Copyright by GEDORE Automotive GmbH, Donaueschingen (GERMANY)
- Page 3 1.11 Maintenance ....................................7 1.12 Troubleshooting ..................................... 7 2. PRODUCT DESCRIPTION ....................................2.1 KL-0041-380 EA - Wheel hub extractor in foam insert ......................8 2.2 Scope of delivery / spare parts overview ........................... 8 2.3 Specifications ....................................8 3. PREPARATION ..........................................
- Page 4 12 tonnes! may only be used with a manual drive or a manually operated GEDORE Automotive hydraulic cylinder / pump combination with a pressure gauge for safe pressure control!
- Page 5 Never use the wheel hub extractor if it is damaged or has loose parts or unauthorised modifications! Never use the wheel hub extractor with a machine-operated drive. Drive it exclusively by hand with muscle power with a manual drive, or a manually driven GEDORE Automotive hydraulic cylinder/pump combination with pressure gauge for safe pressure control!
- Page 6 There is a risk of the wheel hub extractor DROPPING during preparation and use (overhead, for example). This can cause SEVERE INJURIES! As a precaution, secure the wheel hub extractor against dropping, for example using the GEDORE safety harness - KL-0040-2590 or KL-0040-2592, or the mounting device - KL-0040-258 A...
- Page 7 Never use the wheel hub extractor with an unauthorised drive. Operate it only with an approved drive! Always wear your personal protective equipment (safety goggles, protective gloves, safety shoes) during work! Interrupt your work immediately if you are unsure about using the wheel hub extractor and contact GEDORE Automotive GmbH, if necessary!
- Page 8 (Translation of the operating instructions) 2. PRODUCT DESCRIPTION 2.1 KL-0041-380 EA - Wheel hub extractor in foam insert Universally fits wheel hub / wheel bearing units, wheel hubs, and wheel bearings with a diameter of up to 250mm. For quick, safe, and precise pulling out of wheel hub / wheel bearing units, wheel hubs, and wheel bearings from the wheel bearing housing.
- Page 9 DEATH or SEVERE INJURIES! Never use the wheel hub extractor with a machine-operated drive. Drive it exclusively by hand with muscle power with a manual drive, or a manually driven GEDORE Automotive hydraulic cylinder/pump combination with pressure gauge for safe pressure control! Never use the wheel hub extractor with an impulse or impact wrench! 1.
- Page 10 Go to ... Chapter 4.1 - Removing a wheel hub / wheel bearing unit Chapter 4.2 - Removing a wheel hub and wheel bearing Chapter 4.3 - Removing a cardan shaft 10 - © Copyright by GEDORE Automotive GmbH, Germany 0041-380EA_EN211205.indd...
- Page 11 4. Perform further work on the vehicle as specified by the manufacturer. 12 t The subsequent installation can be carried out, for example, STOP using the wheel bearing tools from the KL-0041-..series, see the GEDORE-Automotive catalogue. - 11 © Copyright by GEDORE Automotive GmbH, Germany 0041-380EA_EN211205.indd...
- Page 12 [ Z4 ] . It is essential to secure the wheel bearing housing against dropping, for example using the GEDORE safety harness - KL-0040-2590, or the mounting device - KL-0040-258 A! 3. While you are operating the hydraulic pump [ Z1 ] , watch the pressure on the pressure gauge, and remove the wheel hubs from the wheel bearing.
- Page 13 8. Perform further work on the vehicle as specified by the manufacturer. STOP The subsequent installation can be carried out, for example, using the wheel bearing tools from the KL-0039-..series, see the GEDORE-Automotive catalogue. - 13 © Copyright by GEDORE Automotive GmbH, Germany 0041-380EA_EN211205.indd...
- Page 14 3. Turn the pressure spindle [Z7] clockwise using a reversible ratchet (size 27mm) and push the cardan shaft out of the wheel hub. 4. Perform further work on the vehicle as specified by the manufacturer. 14 - © Copyright by GEDORE Automotive GmbH, Germany 0041-380EA_EN211205.indd...
- Page 15 For safety reasons, ensure that a damaged wheel hub extractor is no longer used! Professional inspection and repair may only 2.10 be carried out by specially trained experts from GEDORE Automotive GmbH. Improper repair can result in DEATH or SEVERE INJURIES.
- Page 16 Seulement pour les USA, le Canada et le Mexique www.gedoretools.com 7187 Bryhawke Circle, Suite 700, North Charleston, SC 29418, USA Worldwide GEDORE service centers and offices are listed on the Internet at: www.gedore.com GEDORE Automotive GmbH Vertrieb DEUTSCHLAND Breslauer Straße 41...
