Pulling Device
GEDORE Automotive GmbH
Breslauer Straße 41
78166 Donaueschingen
with Hydraulic Cylinder
Postfach 1329
78154 Donaueschingen - GERMANY
KL-1002-22
KL-1002-220
KL-1002-221
Phone: +49 (0) 771 / 8 32 23-0
Fax: +49 (0) 771 / 8 32 23-90
1002-22e131115.docx
Email: info@gedore-automotive.com
Internet: www.gedore-automotive.com
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Gedore KL-1002-22
Summary of Contents for Gedore KL-1002-22

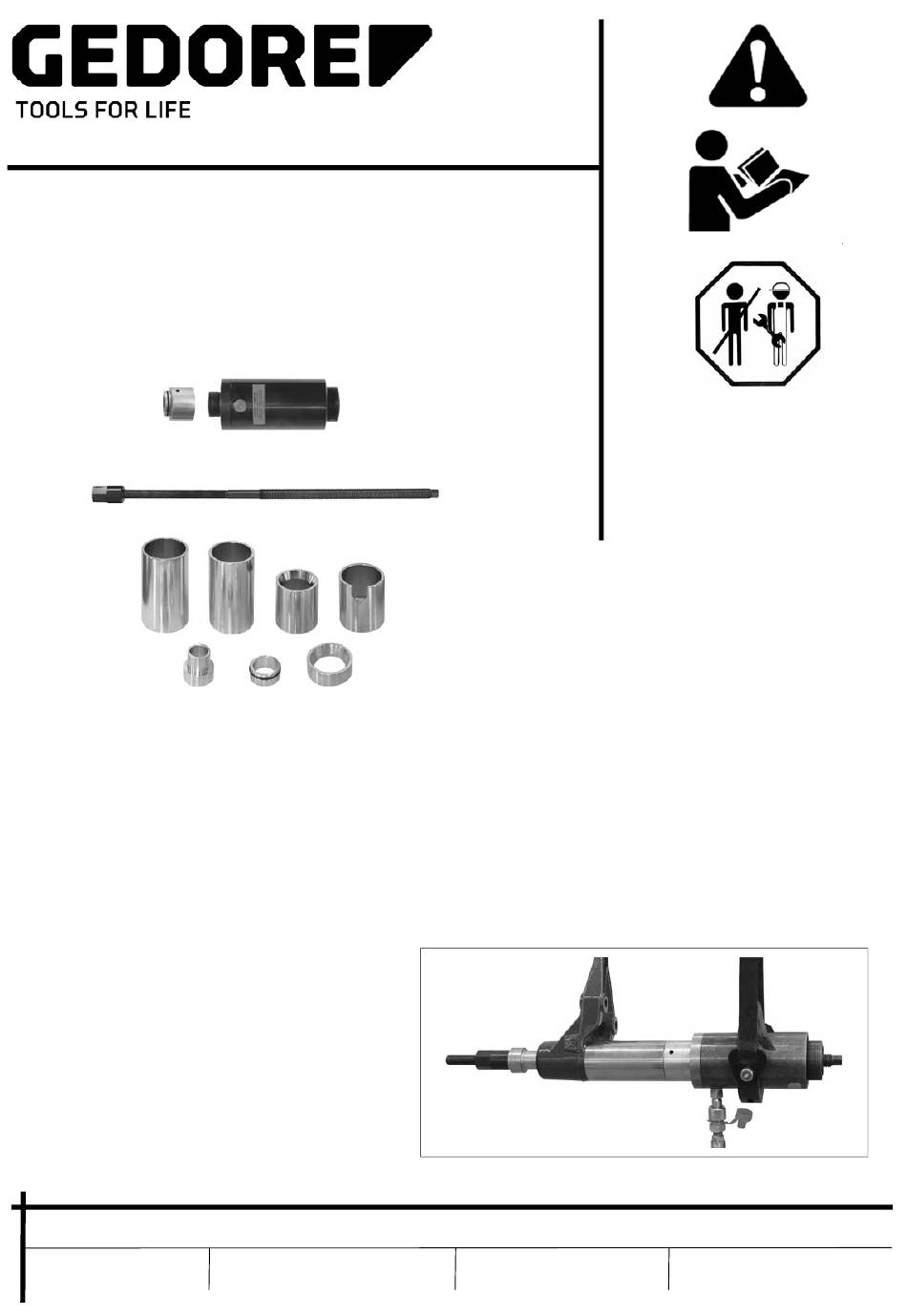

- Page 1 Pulling Device with Hydraulic Cylinder KL-1002-22 KL-1002-220 KL-1002-221 1002-22e131115.docx GEDORE Automotive GmbH Breslauer Straße 41 Postfach 1329 Phone: +49 (0) 771 / 8 32 23-0 Email: info@gedore-automotive.com 78166 Donaueschingen 78154 Donaueschingen - GERMANY Fax: +49 (0) 771 / 8 32 23-90...
- Page 2 Le plus grand soin possible a été apporté à la rédaction de ce document. Toutefois, nous n’assumons aucune responsabilité pour des erreurs, omissions ou défauts d’impression éventuels. Une reproduction, même en partie, ne peut être effectuée qu’après autorisation écrite préalable de GEDORE Automotive GmbH. Tous droits réservés.
-
Page 3: Table Of Contents
1.5 Work Environment ......................... 5 1.6 Appropriate Users ......................... 5 2. Product Description ......................6 ........... 6 2.1 KL-1002-22 Pulling Device with Hydraulic Cylinder, for Silentbloc Ø 40 mm ..........................6 2.2 Technical Data 3. Preparatory Work ......................... 6 ......................6 3.1 Checking the Delivery (Fig. -
Page 4: Essential Safety Notices
Observe and do not exceed the maximum load capacity of the pull spindle and hydraulic cylinder. Use hydraulic pump with pressure gauge KL-0040-2529. Only use Original GEDORE spare parts. Always keep all parts of your body away from the axial extension of the pull spindle. -
Page 5: Intended Use
Always check the pulling device prior to EACH use in order to ensure that it is in good order and condition. Damaged or worn parts MUST be replaced prior to using the pulling device. ONLY use the original spare parts and accessories from GEDORE on the pulling device. 1.5 Work Environment Work with the pulling device should only be carried out in a safe work environment. -
Page 6: Product Description
Silentbloc Ø 40 mm Suitable for Renault Midlum/Midlum 4x4. KL-1002-220 The KL-1002-22 pulling device is used in conjunction with a hydraulic pump thus allowing for the quick, safe and professional removal and installation of the silentblocs with Ø KL-1002-221 40 mm (bead-Ø... -
Page 7: Silentbloc Removal/Silentbloc Installation
Observe and do not exceed the maximum load capacity of the pull Fig. 7: Lubricating the silentbloc. spindle. Use hydraulic pump with pressure gauge KL-0040-2529. Only use Original GEDORE spare parts. Always keep all parts of your body away from the axial extension of the pull spindle. ATTENTION Risk of damage to pressure piece “9“, support sleeve “5“... - Page 8 Observe and do not exceed the maximum load capacity of the “A“ pull spindle. Use hydraulic pump with pressure gauge KL-0040-2529. Only use Original GEDORE spare parts. Always keep all parts of your body away from the axial extension of the pull spindle. ATTENTION “B“...
-
Page 9: Care And Storage
KL-1002-2202-1 Support sleeve, short, Ø 40 mm 9. Environmentally Safe Disposal Recycle/dispose of the pulling device and its packaging material in compliance with the legal rules and regulations in force. Chapter © Copyright by GEDORE Automotive GmbH, Germany 1002-22e131115.docx hu-gm... - Page 12 GEDORE Automotive GmbH Breslauer Strasse 41 78166 Donaueschingen Postfach 1329 78154 Donaueschingen - GERMANY Tel.: +49 (0) 771 / 8 32 23-0 Fax: +49 (0) 771 / 8 32 23-90 E-Mail: info@gedore-automotive.com Internet: www.gedore.com...
