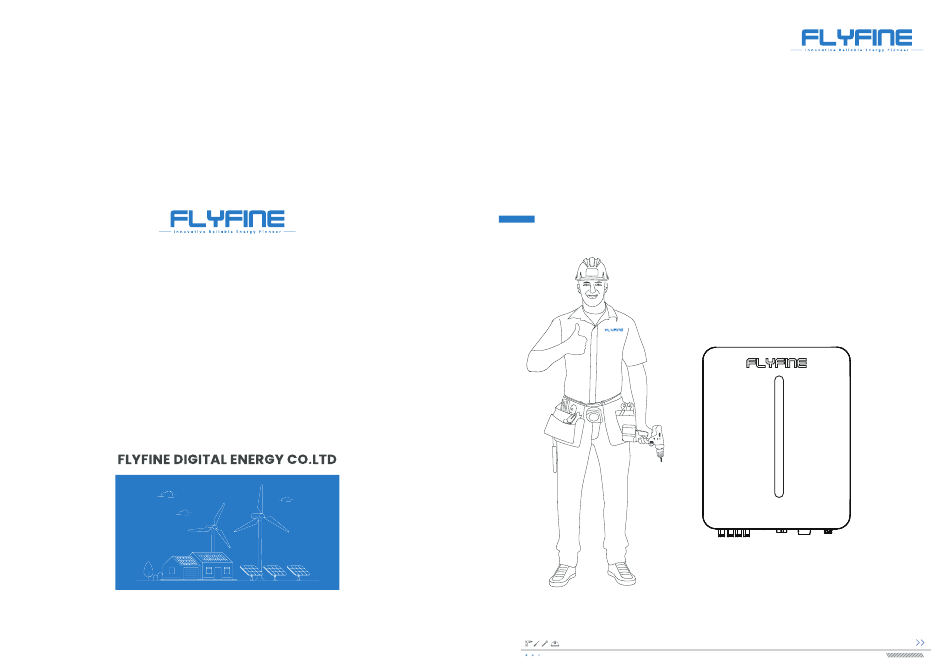

- Page 1 User Manual Three Phase Hybrid Storage Inverter FH-5000T/FH-6000T/FH-8000T/FH-10000T User Manual...
-
Page 2: About This Manual
User Manual User Manual About This Manual Change History The manual primarily encompasses product information, along with installation, operation, Changes between document issues are cumulative, meaning that each subsequent document and maintenance guidelines. issue includes all the changes made in earlier issues. It will refer to the device as the "inverter"... -
Page 3: Table Of Contents
Contents Contents User Manual User Manual 1 Safety Instructions 6 Electrical Connection 1.1 Unpacking and Inspection 6.1 Safety Instructions 1.2 Installation Safety 6.2 Terminal Description 1.3 Electrical Connection Safety 6.3 Electrical Connection Overview 1.4 Operation Safety 6.4 EPS Wiring Diagram 1.5 Maintenance Safety 6.5 External Protective Grounding Connection 1.6 Disposal Safety... -
Page 4: Safety Instructions
User Manual User Manual 1 Safety Instructions CAUTION When installing, commissioning, operating, and maintaining the product, it is crucial to strictly Improper installation can result in personal injury! adhere to the labels on the product and the safety requirements outlined in the manual. In- If the product supports hoisting for transportation using hoisting tools, it is strictly prohibited for anyone to remain correct operations or procedures may result in the following: under the product. -
Page 5: Operation Safety
User Manual User Manual WARNING CAUTION To prevent misuse or accidents caused by unauthorized personnel, prominently display Ensure to check the positive and negative polarity of the PV strings and connect the PV warning signs or designate safety warning areas around the product. connectors to the corresponding terminals only after confirming the correct polarity. -
Page 6: Product Description

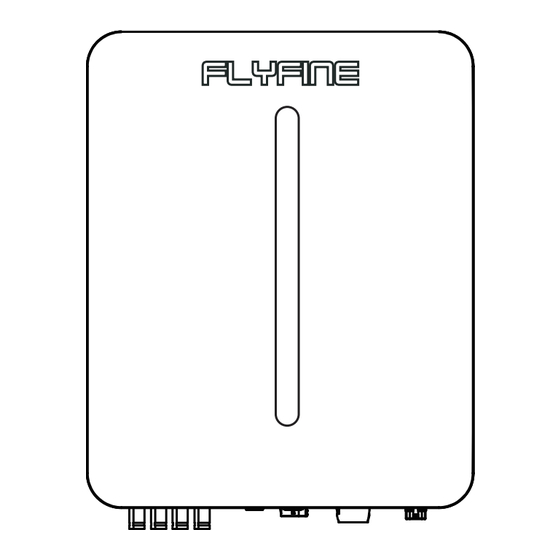

figure 2-2 Dimensions of the Inverter 10kW : Power level HVL : Three phase, High voltage, LED Type : Line Inverter Model W(mm) H(mm) D(mm) Appearance FH-5000T The image shown here is for reference only. The actual product received may differ. FH-6000T FH-8000T FH-10000T... -
Page 7: Symbols On The Product
User Manual User Manual 2.3 Symbols on the Product In normal operation, the LED indicator will alternate the EPS, Battery, Grid, Power state information. In the event of no user activity for 5 minutes, the display screen will automatically turn off to conserve power. Users can reactivate the display screen by simply touching the LED indicator. -
Page 8: Pv Energy Storage System (Pv Ess)
If the Smart Energy Meter is either not present or experiencing abnormalities, the inverter will continue to operate Inverter FH-5000T/FH-6000T/FH-8000T/FH-10000T normally. However, the battery will only be allowed to charge and not discharge. In this scenario, the feed-in power Metering device Meter cupboard with power distribution system. -
Page 9: Retrofitting The Existing Pv System
User Manual User Manual Energy Management during Night During the nighttime period, energy management operates as follows: Battery Discharge: With available energy, the battery will discharge to provide power for the loads. It acts as the primary PV inverter source of power during this time. Grid Power Supply: If the discharge power of the battery is insufficient to meet the load requirements, the grid will automatically supply power to the loads. -
Page 10: Function Description
User Manual User Manual 3 Function Description If the voltage level deviates from the defined operational levels, the inverter will disconnect from the grid within the protection time frame. In the event of a short-lived disturbance that lasts for a duration shorter than the required protection time, the inverter can automatically reconnect to the grid once the voltage 3.1 Safety Function level returns to normal operating levels after the disturbance subsides. -
Page 11: Charge Management
User Manual User Manual 4 Unpacking and Storage 4.1 Unpacking and Inspection The product undergoes comprehensive testing and rigorous inspection prior to shipment. However, there NOTICE is still a possibility of damage occurring during transit. Therefore, it is essential to conduct a thorough inspection upon receiving the product. -
Page 12: Inverter Storage
User Manual User Manual 5 Mechanical Mounting Item Name Quantity Inverter WARNING Wall-mounting bracket * Expansion plug set Respect all local standards and requirements during mechanical installation. M4 screws and washers 5.1 Safety during Mounting M5 screws and washers AC connectors set EPS connectors set DANGER PV connectors... -
Page 13: Environment Requirements
User Manual User Manual 5.2.1 Environment Requirements 5.2.3 Angle Requirements Ensure an installation environment free from flammable or explosive materials. The inverter should be installed in a vertical position. It should never be installed horizontally, tilted forward or backward, or upside down. Choose a location that is not accessible to children to ensure their safety. -
Page 14: Installation Tools
User Manual User Manual 5.3 Installation Tools 5.5 Installing the Inverter Installation tools include but are not limited to the following recommended ones. If necessary, use Mount the inverter securely on the wall using the supplied wall-mounting bracket and other auxiliary tools on site. expansion plug sets. -
Page 15: Electrical Connection
User Manual User Manual 6 Electrical Connection Step 3: Insert the expansion bolts into the drilled holes and secure the mounting plate firmly against the wall. 6.1 Safety Instructions DANGER The PV string produces extremely high voltage when exposed to sunlight, which can be lethal. Operators must wear appropriate personal protective equipment during electrical connections. -
Page 16: Terminal Description
User Manual User Manual 6.2 Terminal Description 6.3 Electrical Connection Overview All electrical terminals are located at the bottom of the inverter. System Wiring Diagram The electrical connection should be realized as follows: (B) Battery (A) Router (C) PV string (E) AC circuit breaker (F) Smart Energy Meter (D) Inverter... -
Page 17: Eps Wiring Diagram
User Manual User Manual 6.4 EPS Wiring Diagram Please note that this diagram is provided as an example and may need to be adjusted based on the specific regulations and standards of the country in which the installation is taking place. It is important to consult local regulations and guidelines to ensure compliance and safety. -
Page 18: External Protective Grounding Connection
User Manual User Manual For TT system 6.5 External Protective Grounding Connection In the TT system : The diagram provided is an example for grid systems in the TT system. Please ensure compliance with local regulations and guidelines for wiring connections in your specific location. DANGER Electric shock! Distribution Box... -
Page 19: Ac Cable Connection
User Manual User Manual 6.6 AC Cable Connection Step 1 : Prepare the cable and OT/DT terminal. 6.6.1 AC Side Requirements Only with the permission of the local grid department, the inverter can be connected to the grid. Before connecting the inverter to the grid, it is important to ensure that the grid voltage and frequency meet the requirements specified in the "Technical Data"... -
Page 20: Smart Meter Connection
User Manual User Manual Step 5 : Insert the terminals into the inverter grid socket as instructed in steps 1 and 2. Step 2 : Strip 40 mm of the cable jacked and 12 mm(L) of the wire insulation. Click! --End 6.7 Smart Meter Connection Step 3 : Fasten the GRID/EPS terminal nut back in accordance with steps 1, 2, and 3. -
Page 21: Dc Cable Connection (Pv& Battey Cable)
User Manual User Manual 6.8 DC Cable Connection (PV & Battery cable) For the 5K/6K/8K-3P-HVL inverter, each PV input operates independently and has its own Maximum Power Point Tracking(MPPT). As a result, the string configurations for each PV input may vary, including the PV module type, the number of PV modules in each string, the tilt angle, and the installation orientation. -
Page 22: Assembling The Mc4 Connectors
Pull the cable gently backward to ensure a firm con- nection. Tighten the cable gland and insulator using a torque of 2.5 N.m to 3 N.m. NO. Model Open circuit Voltage Limit Max. Current for Input Connector FH-5000T FH-6000T 1000V FH-8000T FH-10000T 6.8.2 Assembling the MC4 Connectors... -
Page 23: Communication Connection
User Manual User Manual 6.9 Communication Connection Please note that the hybrid inverter is not designed for battery connection and does not support off-grid operation functions. 6.9.1 BAT-COM Connection All power cables are equipped with waterproof direct plug-in connectors that match the Step 1 : BAT-COM Connection battery terminals located at the bottom of the inverter. -
Page 24: Wlan-Rs485 Connection
User Manual User Manual 6.9.5 DRM-COM Connection In Australia and New Zealand, the inverter is designed to support demand response modes according 4.8-6mm to the AS/NZS 4777 standard. Specifically, the inverter must support DRM 0 as specified in Table 1 of the standard. -
Page 25: Commissioning
User Manual User Manual 7 Commissioning 7.4 Registration Go to SOLARMAN Smart and sign up. 7.1 Inspection before Commissioning Click on "Sign up" and create your account here. Please note that use an email address to register for an account. Before starting the inverter, please ensure the following checklist items are checked: Confirm that all equipment has been installed securely and in accordance with the manufacturer's instructions. -
Page 26: Add A Logger
User Manual User Manual 7.7 Network Configuration Step 1: Click on "Go to Configure" to access the network settings. (Ensure that Bluetooth and WiFi are turned ON.) Step 2: Please wait for a few minutes. Afterward, click on "Done" to complete the setup and view the plant data. -
Page 27: Stick Logger Installation
User Manual User Manual 7.8 Stick Logger Installation (Note: Use the table below after the stick logger has been powered on for at least 2 minutes.) Assemble the logger to the inverter communication interface according to the diagram provided. READY Fault Description Fault Cause Solution... -
Page 28: System Decommissioning
User Manual User Manual 8 System Decommissioning NOTICE 8.1 Disconnecting the Inverter Certain components of the inverter may pose a risk of environmental pollution. Please adhere to the disposal regulations for electronic waste that are applicable at your installation site when disposing 8.1.1 Disconnecting the Inverter of these components. -
Page 29: Troubleshooting And Maintenance
User Manual User Manual 9 Troubleshooting and Maintenance 9.1 Troubleshooting Note: Please consult the charger user manual for information regarding the fault codes of the charger. The manual will provide detailed explanations of the fault codes and their corresponding 481vv troubleshooting steps. -
Page 30: Maintenance
User Manual User Manual Wait for the inverter to recover normal operation. If the fault Note: repeatedly occurs: If you have implemented the suggested troubleshooting steps and the issue persists, please get in touch with the distributor. Check if the ISO resistance protection value is set too high and ensure compliance with local regulations, with approval from the Insulation Fault local power operator. -
Page 31: Routine Maintenance
10 Appendix 9.2.2 Routine Maintenance 10.1 Technical Data Item Method Period Type designation FH-5000T FH-6000T Check the temperature and dust of Six months to a year (depending on PV Input the inverter. Clean the inverter System clean the dust con-Tents in air) enclosure if necessary. - Page 32 User Manual User Manual DC reverse polarity protection Peak output power 6000VA 5min/10000VA, 10s 7200VA 5min/10000VA, 10s AC short-circuit protection Leakage current protection TypeⅡ TypeⅡ Surge Protection Type designation FH-8000T FH-10000T DC switch (PV) PV Input DC fuse (Battery) Recommended max. PV input power 12000Wp 15000Wp Battery input reverse polarity protection...
- Page 33 User Manual User Manual DC reverse polarity protection Peak output power 9600VA 5min 12000VA 5min AC short-circuit protection Leakage current protection TypeⅡ TypeⅡ Surge Protection DC switch (PV) DC fuse (Battery) Battery input reverse polarity protection Battery Data Battery type Li-ion 150-600 V Battery voltage...
