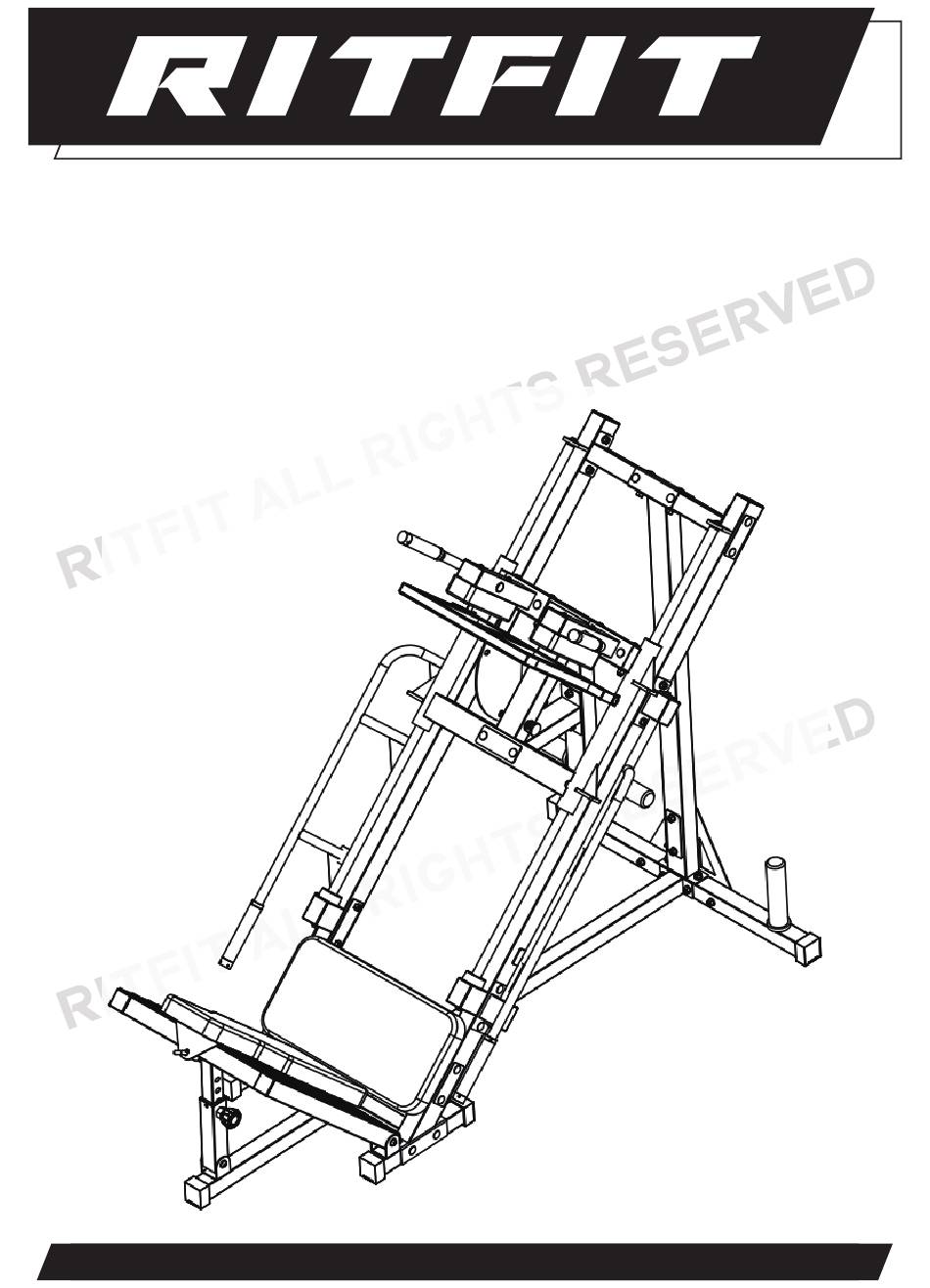

- Page 1 LEG PRESS MACHINE BLP01 OWNER’S MANUAL & ASSEMBLY INSTRUCTIONS...
-
Page 3: Safety And Precautions
Additional features on products may be added during seasonal production but may not be featured in line art diagrams at time of production. Changes of such will not affect the performance or assembly of the unit. If you would like further clarification during your assembly process please feel free to contact RITFIT for direction. - Page 4 A. What’s Covered Under RitFit LLC’s Basic Warranty? Basic Warranty. B. Who Is Covered? You are covered by the Basic Warranty if you are a purchaser for use of the RitFit Leg Press Machine. C. What’s Covered? The Basic Warranty covers the cost of all parts and labor needed to repair any item on your leg press machine when it left the manufacturing plant that is defective in materi- al, workmanship or factory preparation.
-
Page 5: Before You Begin
BEFORE YOU BEGIN Thank you for selecting the versatile RITFIT® Leg Press Machine. RITFIT® Leg Press Machine is designed to be used with weight training system to help you develop your lower muscle group of the body. For your benefit, read this manual carefully before using the Leg Press Machine. If you have additional questions, please email our Customer Service Department at support@rit- fitsports.com. -
Page 6: Parts List
PARTS LIST ·Packed in the box QUANTITY DESCRIPTION Weld To The Ground Short Connection A Short Connection B Welding Of Side Supports Posterior Canal Rear Support Welded On The Connecting Rod Left Strut Right Strut Bell Rack Reinforced Frame Shoulder Pads Frame A 1 Weld To The Ground 2 Short Connection A 3 Short Connection B... - Page 7 PARTS LIST ·Packed in the box QUANTITY DESCRIPTION Reinforced Frame B Push-off Frame Sliding Frame Guide Bar Cushion L-sheet Stiffener Knob Seat Frame Tube Backrest Inner Tube Exernal Tube Shelving Rack 13 Reinforced Frame B 14 Push-off Frame 15 Sliding Frame 16 Guide Bar 17 Cushion 18 L-sheet Stiffener...
- Page 8 PARTS LIST ·Packed in the box QUANTITY DESCRIPTION Seat Frame Tube Limit Fixed Frame Limit Holder A Limit Holder B Cushion Fixing Plate Shoulder Pads Seat Cushion Back Cushion Sheet Stiffener 90 Connection Sheet 110 Connection Sheet Withdrawal 25 Seat Frame Tube 26 Limit Fixed Frame 27 Limit Holder A 28 Limit Holder B...
- Page 9 PARTS LIST ·FASTENER AND TOOLS QUANTITY DESCRIPTION Large Gasket (10) Gasket (8) Gasket (10) M8*90 Bolt M10*70 Bolt M10*90 Bolt M10*70 Bolt M10*30 Bolt M10*25 Bolt M8*30 Bolt M8*70 Bolt Butterfly Card L-pin 53 Gasket (10) 51 Large Gasket (10) 52 Gasket (8) 54 Nut 57 M10*90 Bolt...
- Page 10 ASSEMBLY AND ADJUSTMENT STEP 1 (Two People Are Required.) DESCRIPTION QUANTITY Weld To The Ground Short Connection A Short Connection B Posterior Canal Shelving Rack Sheet Stiffener Gasket (10) M10*70 Bolt M10*25 Bolt 1. Connect 1 #, 2 # and 3 # components with four 56 # components, four 53 # components and four 54 # components as shown in the figure, and do not tighten them temporarily.
- Page 11 ASSEMBLY AND ADJUSTMENT STEP 2 (Two People Are Required.) DESCRIPTION QUANTITY Welding Of Side Supports Rear Support Welded On The Connecting Rod Left Strut Right Strut L-sheet Stiffener Seat Frame Tube 90 Connection Sheet 110 Connection Sheet Gasket (10) M10*70 Bolt M10*90 Bolt 1.
- Page 12 ASSEMBLY AND ADJUSTMENT STEP 2 (Two People Are Required.)
- Page 13 ASSEMBLY AND ADJUSTMENT STEP 3 (Two People Are Required.) DESCRIPTION QUANTITY Bell Rack Reinforced Frame Sliding Frame Guide Bar Cushion 110 Connection Sheet Withdrawal Gasket (10) M10*70 Bolt M10*25 Bolt 1. Thread two 17 # pieces and 15 # pieces onto two 16 # pieces, connect them with four 60 # pieces and four 53 # pieces as shown in the figure, and fasten them onto 8 # and 9 # pieces.
- Page 14 ASSEMBLY AND ADJUSTMENT STEP 4 (Two People Are Required.) DESCRIPTION QUANTITY Shoulder Pad Frame A Shoulder Pad Frame B Shoulder Pads Gasket (8) Gasket (10) M10*70 Bolt M10*90 Bolt M8*70 Bolt 1. Connect 12 # and 13 # pieces with four 56 # pieces, four 57 # pieces, eight 53 # pieces and eight 54 # pieces as shown in the figure and fasten them on 15 # pieces.
- Page 15 ASSEMBLY AND ADJUSTMENT STEP 5 (Two People Are Required.) DESCRIPTION QUANTITY Push-off Frame Gasket (10) M10*30 Bolt 1. Connect 14 # pieces with two 59 # pieces, two 53 # pieces and two 54 # pieces as shown in the figure and fasten them on 15 # pieces.
- Page 16 ASSEMBLY AND ADJUSTMENT STEP 6 (Two People Are Required.) DESCRIPTION QUANTITY Limit Fixed Frame Limit Holder A Limit Holder B 110 Connection Sheet Large Gasket (10) Gasket (10) M10*70 Bolt M8*70 Bolt 1. First insert eight 56 # pieces into four 26 # pieces respectively, insert four 26 # pieces into both ends of 27 # and 28 # pieces respectively, and fix them with four 51 # pieces and four 60 # pieces.
- Page 17 ASSEMBLY AND ADJUSTMENT STEP 7 (Two People Are Required.) DESCRIPTION QUANTITY Knob Backrest Inner Tube Exernal Tube Gasket (10) M10*70 Bolt M8*30 Bolt 1. Put 22 # pieces into 23 # pieces and connect them with one 19 # piece and one 61 # piece;...
- Page 18 ASSEMBLY AND ADJUSTMENT STEP 8 (Two People Are Required.) DESCRIPTION QUANTITY Shelving Rack Seat Frame Tube Cushion Fixing Plate Seat Cushion Back Cushion Gasket (8) M8*90 Bolt M8*30 Bolt Butterfly Card L-pin 1. Connect 31 # pieces with two 55 # pieces and two 52 # pieces and fasten them on 20 # pieces;...
- Page 19 Congratulations! You have assembled the Leg Press Machine! Now, you can officially start strength training with RITFIT.
