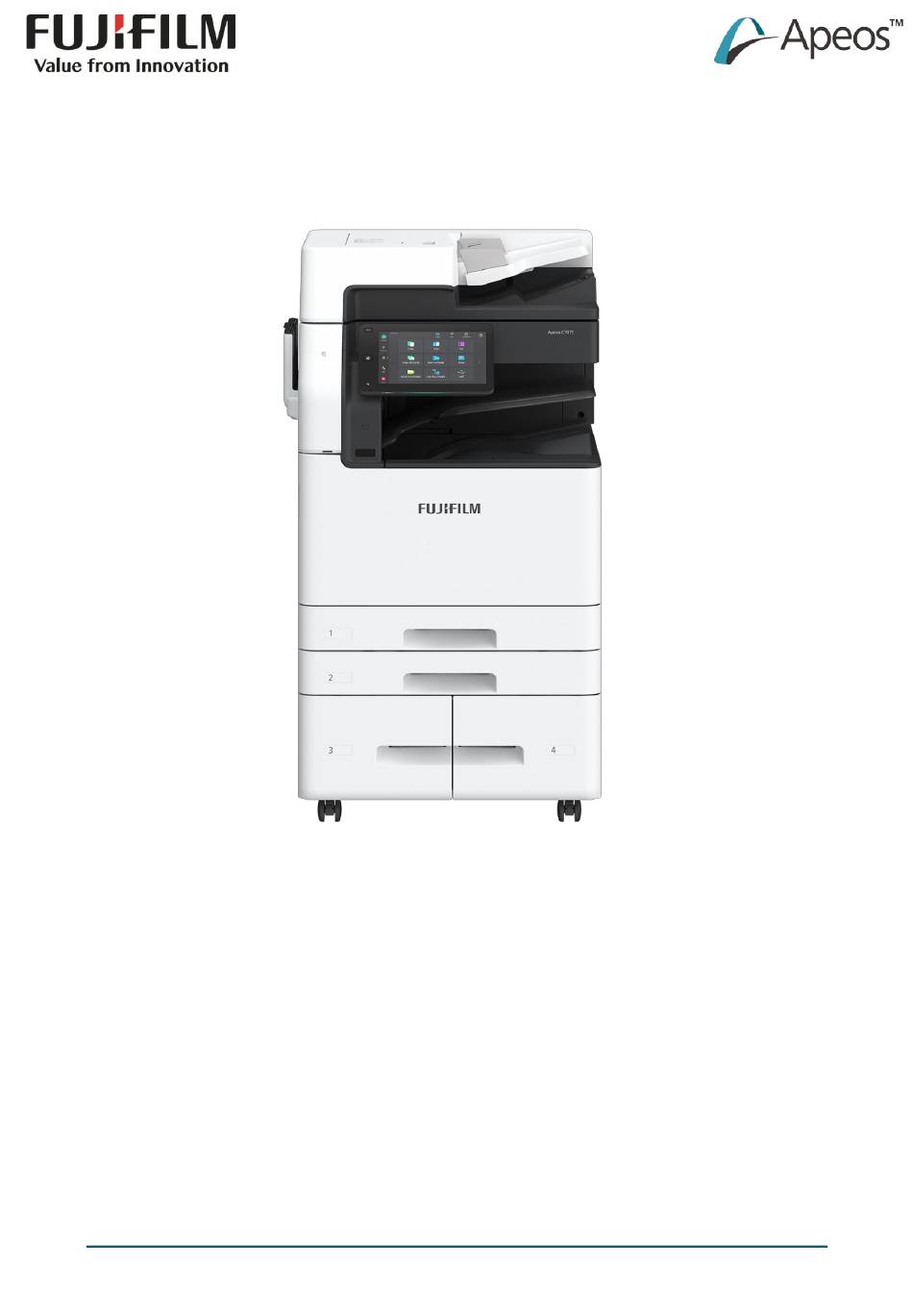

  • Page 1 Quick Reference Notes – Daily Care 簡易操作 -日常保養 Apeos C3567 / C3067 / C2567 / C2061 Prepared by Customer Training Team © FUJIFILM Business Innovation Hong Kong Limited...
  • Page 2 Tandem Trays 複合紙盤 ....................10 Bypass Tray 手送紙盤 ....................11 Replacing Toner 更換碳粉匣 ....................12 Confirm Consumable Status 確認耗材狀態 ..............12 Scan QR Code OR Click here for more instruction. 請掃描 QR Code 或者點擊這裡查看更多使用説明。 For more online support information please visit 更多相關資料,請訪問以下網址: https://support-fb.fujifilm.com...
  • Page 3 夾紙排解 LEAR APER / 自動雙面送稿裝置 1.1 D UPLEX UTOMATIC OCUMENT EEDER 1.1.1 Document Feeder B2-PC (model Apeos C5571 / C4571) 1. 從原稿紙盤清除所有的原稿。提起護蓋前 1. Remove all documents from the Document Tray. Pull up the front handle of 的把手,開啟護蓋直到停止位置。 the cover and open the cover until it stops. 2.
  • Page 4 4. 提起送稿台,清除原稿。將送稿台回歸原 4. Lift the Document Feeder Tray and remove the document. Put the Document 位。 Feeder Tray back into position. Page 2 of 12...
  • Page 5 1.1.2 Document Feeder C2-PC (model Apeos C7071 / C6571 / C5571 / C4571) 1. 從原稿紙盤清除所有的原稿。提起上蓋前 1. Remove all documents from the Document Tray. Pull up the front handle of 的把手,開啟上蓋直到停止位置。 the Top Cover and open the cover until it stops. 2.
  • Page 6 4. 輸出口有原稿時,提起送稿台,朝輸出方 4. If the document is caught in the exit area, lift the Document Feeder Tray and pull the 向拉取出來。 document toward the exit. 5. 將送稿台回歸原位。關閉上蓋及左蓋。 5. Put the Document Feeder Tray back into position. Close the Upper Cover and the Left Cover.
  • Page 7 左上蓋內部 1.2 I NSIDE PPER OVER 1.2.1 Fusing Unit 熔著部 1. 提起釋放拉桿,開啟左上蓋。 1. While lifting up the Release Handle, open the Upper Left Cover. 2. 清除卡住的紙張。 2. Remove the jammed paper. 3. 拉出拉桿【A1】。 3. Pull the handle [A1]. 4. 清除卡住的紙張。 4.
  • Page 8 1.2.2 Center Tray Exit 中央承接盤輸出口 1. While lifting up the Release Handle, open 1. 提起釋放拉桿,開啟左上蓋。 the Upper Left Cover. 2. 拉出拉桿【A2】。 2. Pull the handle [A2]. 3. 抓著拉桿【A2】,清除卡住的紙張。 3. While holding the handle [A2], remove the jammed paper. 4. 將拉桿【A2】放回原位,並關閉左上蓋。 4.
  • Page 9 1.2.3 Duplex Unit 雙面元件 1. While lifting up the release handle, open 1. 提起釋放拉桿,開啟左上蓋。 the upper left-side door. 2. 清除卡住的紙張。 2. Remove the jammed paper. 3. 拉出拉桿【A3】。 3. Pull the handle [A3]. 4. 抓著拉桿【A3】,清除卡住的紙張。 4. While holding the handle [A3], remove the jammed paper.
  • Page 10 左下蓋內部 1.3 I NSIDE OWER OVER 1. 打開左下蓋 1. Open the Lower Left Cover. 2. 清除卡住的紙張。 2. Remove any jammed paper. 3. 關閉左下蓋。 3. Close the Lower Left Cover. Page 8 of 12...
  • Page 11 標準紙盤 1.4 S TANDARD RAYS 1. 將發生卡紙的紙盤完全拉出。 1. Pull out the Paper Tray where the paper jam occurred until it stops. 2. 清除卡住的紙張。 2. Remove any jammed paper. 3. 推回紙盤。 3. Push in the paper tray. Page 9 of 12...
  • Page 12 複合紙盤 1.5 T ANDEM RAYS 1. 將發生卡紙的紙盤完全拉出。 1. Pull out the Paper Tray where the paper jam occurred until it stops. 2. 清除卡住的紙張。 2. Remove the jammed paper. 3. 紙張輸送部上有卡紙情況時,拉開[C]。 3. If paper is jammed in the paper feed section, pull out [C]. 4.
  • Page 13 手送紙盤 1.6 B YPASS 1. 清除卡住的紙張。 1. Remove any jammed paper. Page 11 of 12...
  • Page 14 更換碳粉匣 EPLACING ONER 確認耗材狀態 2.1 C ONFIRM ONSUMABLE TATUS 1. 點選 。 1. Tap 2. 點選【機器確認 (碼錶確認)】。 2. Tap [Device Status]. 3. 點選【耗材確認】。 3. Tap [Supplies]. 4. 更換的方法請參考耗材外盒上所記載的步 4. For the replacement method, refer to the 驟。 steps provided on the consumable box. Page 12 of 12...
  • Page 15 Customer Support Center 2513-2513 FUJIFILM and FUJIFILM logo are registered trademarks or trademarks of FUJIFILM Corporation. Apeos is registered trademarks or trademarks of FUJIFILM Business Innovation Corp.
