Quick Reference Notes –
簡易操作

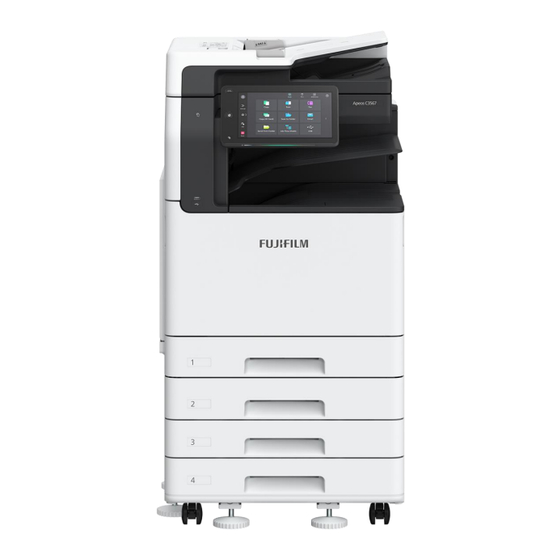

Apeos C3567 / C3067 / C2567 / C2061
Prepared by Customer Training Team
© FUJIFILM Business Innovation Hong Kong Limited
-日常保養
Daily Care

Advertisement

loading
Need help?

Need help?

Do you have a question about the Apeos C3567 and is the answer not in the manual?

Questions and answers

Summary of Contents for FujiFilm Apeos C3567

  • Page 1 Quick Reference Notes – Daily Care 簡易操作 -日常保養 Apeos C3567 / C3067 / C2567 / C2061 Prepared by Customer Training Team © FUJIFILM Business Innovation Hong Kong Limited...
  • Page 2 Duplex Automatic Document Feeder / 自動雙面送稿裝置 ..........1 1.1.1 Document Feeder B1-C (model Apeos C2061) ............. 1 1.1.2 Document Feeder B5-PC / B4-PC (model Apeos C3567 / 3067 / 2567) ....3 Inside Upper Left Cover 左上蓋內部 ................5 Fusing Unit 熔著部 ....................5 1.2.1 Center Tray Exit 中央承接盤輸出口...
  • Page 3 夾紙排解 LEAR APER / 自動雙面送稿裝置 1.1 D UPLEX UTOMATIC OCUMENT EEDER 1.1.1 Document Feeder B1-C (model Apeos C2061) 1. 提起護蓋前的把手,開啟護蓋直到停止位 1. Remove all originals from the document tray. Pull up the front handle of the cover 置。 and open the cover until it stops. 2.
  • Page 4 5. 推動旋鈕,推出原稿並取走。 5. Turn the knob to eject the original upwards then remove it. 6. 關上內蓋以及護蓋。 6. Close the inner cover and the left cover. 7. 如果找不到原稿,就輕輕打開送稿器,看 7. When you cannot find the original, lift the 到原稿就取走,然後關上。 document feeder gently and remove the original if it is there, then close the document feeder.
  • Page 5 1.1.2 Document Feeder B5-PC / B4-PC (model Apeos C3567 / 3067 / 2567) 1. 提起護蓋前的把手,開啟護蓋直到停止位 1. Remove all originals from the document tray. Pull up the front handle of the left 置。 cover of and open the cover until it stops.
  • Page 6 6. Lift the document feeder tray and remove 6. 提起送稿台,取走原稿。 the original. 7. 將送稿台回歸原位。 7. Put the document feeder tray back into position. Page 4 of 10...
  • Page 7 左上蓋內部 1.2 I NSIDE PPER OVER 1.2.1 Fusing Unit 熔著部 1. While lifting up the release handle, open 1. 提起釋放拉桿,開啟左上蓋。 the upper left-side door. 2. 清除卡住的紙張。 2. Remove any jammed paper. 3. 拉出拉桿【A1】。 3. Pull the handle [A1]. 4. Remove the jammed paper. 4.
  • Page 8 1.2.2 Center Tray Exit 中央承接盤輸出口 1. While lifting up the release handle, open 1. 提起釋放拉桿,開啟左上蓋。 the upper left-side door. 2. 拉出拉桿【A2】。 2. Pull the handle [A2]. 3. 抓著拉桿【A2】,清除卡住的紙張。 3. While holding the handle [A2], remove the jammed paper. 4. 將拉桿【A2】放回原位,並關閉左上蓋。 4.
  • Page 9 1.2.3 Duplex Unit 雙面元件 1. While lifting up the release handle, open 1. 提起釋放拉桿,開啟左上蓋。 the upper left-side door. 2. 清除卡住的紙張。 2. Remove the jammed paper. 3. 拉出拉桿【A3】。 3. Pull the handle [A3]. 4. 抓著拉桿【A3】,清除卡住的紙張。 4. While holding the handle [A3], remove the jammed paper.
  • Page 10 左下蓋內部 1.3 I NSIDE OWER OVER 1.3.1 For 2-tray Configuration 雙紙盤設置 1. 打開左下蓋 1. Open the Lower Left Cover. 2. 清除卡住的紙張。 2. Remove any jammed paper. 1.3.2 For 4-tray Configuration 四紙盤設置 1. 提起釋放拉桿,開啟左下蓋。 1. While pulling the release handle, open the lower left-side door.
  • Page 11 4 紙盤一至四 1.4 P APER 1. 將發生卡紙的紙盤完全拉出。 1. Pull out the Paper Tray where the paper jam occurred until it stops. 2. 清除卡住的紙張。 2. Remove any jammed paper. 3. 推回紙盤。 3. Push in the paper tray. 手送紙盤 1.5 B YPASS 1.
  • Page 12 更換碳粉匣 EPLACING ONER 確認耗材狀態 2.1 C ONFIRM ONSUMABLE TATUS 1. 點選 。 1. Tap 2. 點選【機器確認 (碼錶確認)】。 2. Tap [Device Status]. 3. 點選【耗材確認】。 3. Tap [Supplies]. 4. 更換的方法請參考耗材外盒上所記載的步 4. For the replacement method, refer to the 驟。 steps provided on the consumable box. Page 10 of 10...
  • Page 13 Customer Support Center 2513-2513 FUJIFILM and FUJIFILM logo are registered trademarks or trademarks of FUJIFILM Corporation. Apeos is registered trademarks or trademarks of FUJIFILM Business Innovation Corp.
