Instructions for installation and use

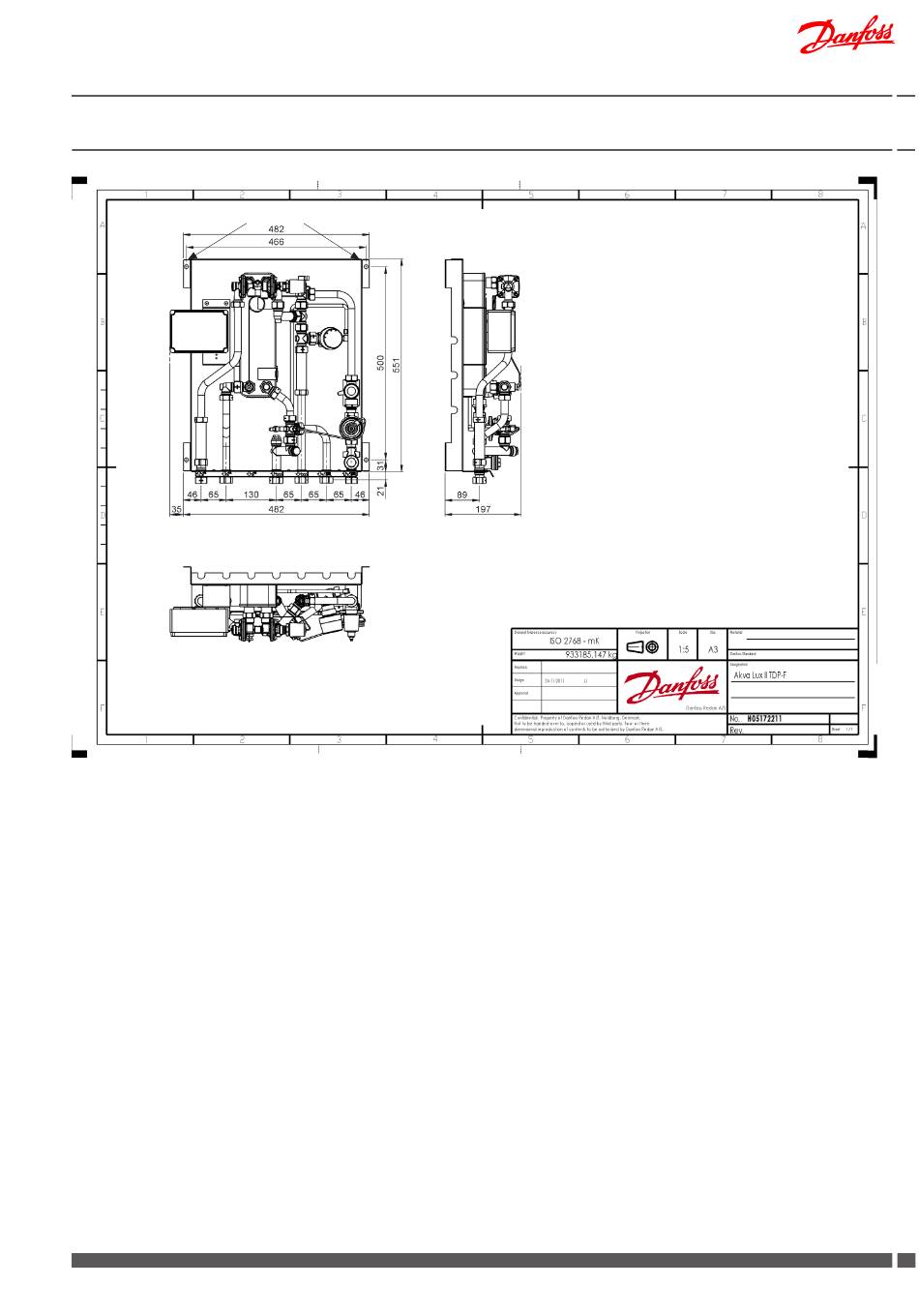

3.0 Dimensional sketches / Connections
Keyholes for mounting
1 2
Connections:
1 Domestic cold water (DCW)
2 Domestic hot water (DHW)
3
4 District heating (DH) supply
5 District heating (DH) return
6 Heating (HE) supply
7 Heating (HE) return
Weight:
Excl. cover: 27 kg
Incl. cover: 30 kg.
Dimensions (mm):
Without cover: H 572 x W 517 x D 197
With cover: H 665 x W 520 x D 215
Connections size:
DH, HE, DCW, DHW: ¾" IT
Recirculation: R½" ET
Danfoss District Energy
3 4 5 6 7
Akva Lux II TDP-F, top/bottom connections
