Summary of Contents for GE Monogram ZGG27L20C2SS

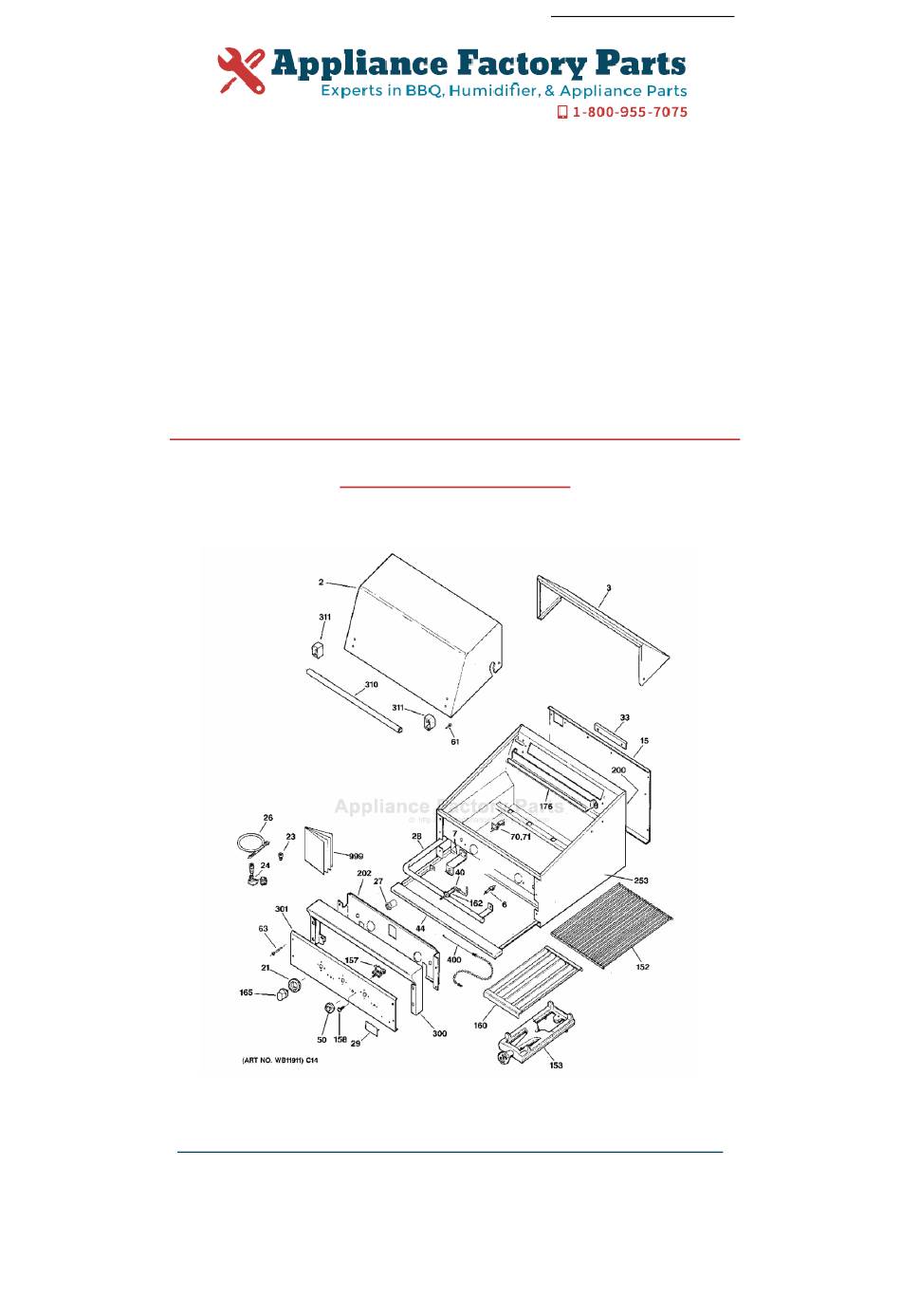

- Page 1 This Owner's Manual is provided and hosted by Appliance Factory Parts. GE ZGG27L20C2SS Owner's Manual Shop genuine replacement parts for GE ZGG27L20C2SS Find Your GE Grill Parts - Select From 85 Models -------- Manual continues below --------...
- Page 2 Owner’s Manual Stainless Steel Professional 24,″ 27,″ 36″ & 48″ Outdoor Cooking Center ZGG24L20 ZGG36L31 ZGG27L20 ZGG36N31 ZGG27N20 ZGG48L30 ZGG27L21 ZGG48N30 ZGG27N21 ZGG48L31 ZGG36L20 ZGG48N31 ZGG36N20 ZGG48L40 ZGG36L21 ZGG48N40 ZGG36N21 ZGG48L42 ZGG36L30 ZGG48N42 ZGG36N30 ge.com...
- Page 3 Consumer Information Stainless Steel Outdoor Cooking Center Introduction Your new Monogram cooking center makes an eloquent statement of style, convenience and home planning flexibility. Whether you chose it for its purity of design, assiduous attention to detail—or for both of these reasons—you’ll find that your Monogram cooking center’s superior blend of form and function will delight you for years to come.
- Page 4 Safety Precautions Stainless Steel Outdoor Cooking Center FOR YOUR SAFETY WARNING If you smell gas: Do not try lighting this appliance without reading the lighting 1. Shut off gas to the appliance. instructions contained in this 2. Extinguish any open flame. Owner’s Manual.
- Page 5 Keep it handy for answers to your questions. Visit our Website at: ge.com Write down Before sending in this card, please write these On 36″ or 48″ models you will find them on a the model...
- Page 6 Important Safety Instructions Stainless Steel Outdoor Cooking Center IMPORTANT SAFETY NOTICE • The California Safe Drinking Water and • Gas appliances can cause minor exposure to Toxic Enforcement Act requires the four of these substances, namely benzene, Governor of California to publish a list of carbon monoxide, formaldehyde and soot, substances known to the state to cause caused primarily by the incomplete...
- Page 7 Important Safety Instructions Stainless Steel Outdoor Cooking Center SAFETY PRECAUTIONS • Use this appliance only for its intended use • When using the range-top burners, always use as described in this manual. flat-bottomed pans which are large enough to cover the burner. Adjust the flame so that it •...
- Page 8 SAFETY PRECAUTIONS • At least once a year, the unit should be • Some 27″ , 36″ and 48″ professional grills inspected for the presence of spiders, spider utilize Gourmet Radiant™ Trays to evenly webs or other insects. The burner area is a distribute heat and to minimize cooking flare common and desired spider haven and can ups.
- Page 9 Features of Your Cooking Center Stainless Steel Outdoor Cooking Center Design 12 13 information (Not all features are on all models. Appearance may vary throughout this Manual.) With Rotisserie Without Rotisserie With Rotisserie Without Rotisserie ZGG48L31 ZGG48L30 ZGG48N31 ZGG48N30 ZGG36L21 ZGG36L20 ZGG36N21 ZGG36N20...
- Page 10 The Grill Stainless Steel Outdoor Cooking Center General Depending on your model, the grill section consists of a large cast iron burner or burners, information a series of stainless steel heat baffles, a bed of natural lava rocks or ceramic briquettes, or Grill rack Gourmet Radiant™...
- Page 11 The Grill Stainless Steel Outdoor Cooking Center The grill is supplied with natural lava rock Place lava rocks in a single layer on top of the Lava rock (on some models). Because of the porosity of stainless steel radiant tray located under the (on some models) natural lava rock, it is superior in its ability to grill rack.
- Page 12 To light Always keep your face and body as far away from the On some models, a match lighting hole is grill as possible when lighting. provided on the top left and right edges under the grill the lid. Open the lid and use the lighting hole Open the lid, push and turn the grill control on the left top edge.
- Page 13 The Grill Stainless Steel Outdoor Cooking Center Allumage Toujours garder le visage et le corps aussi loin que possible Sur certains modèles, un trou d’allumage est fourni du gril lors de l’allumage. sur les bords supérieurs gauche et droit sous le du gril couvercle.
- Page 14 Grilling requires high heat for searing and 1. Check to be certain the drip tray is in place. Using the proper browning. Most foods are cooked at grill 2. Light the grill using the instructions in the the HI heat setting for the entire cooking To light the grill section of this manual.
- Page 15 The Grill Stainless Steel Outdoor Cooking Center Grilling This is a suggested guide only. There are many variables that will affect cooking performance. These include wind, temperature, humidity and cut of meat. guide Weight/ Flame Approximate Food Thickness Size Time Comments Fresh Vegetables Beets, carrots, turnips...
- Page 16 Range-Top Burners Stainless Steel Outdoor Cooking Center Range-top Some cooking centers are equipped with heavy cast iron burners. Each is rated at 15,000 BTU burners and has a rotary spark igniter for efficient lighting. (on some models) The burner grates are porcelain enamel over cast iron for durability.
- Page 17 The Rotisserie System Stainless Steel Outdoor Cooking Center Rotisserie The rotisserie system is designed to cook items The rotisserie burner (on some models) is an from the back of the grill using infrared heat. infrared type which provides intense searing system radiant heat.
- Page 18 The Rotisserie System Stainless Steel Outdoor Cooking Center Assembly On 24″ models the motor is mounted by sliding it down into place in the metal channel attached to the right side of the grill. The skewer is connected to the motor assembly by placing the pointed end through the motor access hole in the grill and into the motor.
- Page 19 The Rotisserie System Stainless Steel Outdoor Cooking Center To setup the 1. Open the lid. grill for 2. Remove the grill racks. 3. Remove the front large stainless steel rotisserie radiant tray with briquettes. ″ models only) 4. Remove the back small stainless steel radiant tray with briquettes and place it into the rotisserie cooking position by sliding it into the rotisserie cooking slots.
- Page 20 To light the Open the lid. Push the control knob to the LITE position. rotisserie Press the safety valve button, hold in and begin burner turning the rotary ignitor button located next to the control knob. It may be necessary to (on some models) turn the ignitor knob several times until the burner lights.
- Page 21 The Smoker System Stainless Steel Outdoor Cooking Center Tiles For the 27″ models, the smoke flavor tray is The smoke Rotisserie located directly beneath the rotisserie burner. burner flavor tray It is a stainless steel tray which is designed to hold wood chips or herbs for adding a smoke (on some models) flavor to foods.
- Page 22 The Smoker System Stainless Steel Outdoor Cooking Center To light the Open the lid and remove the smoker tray. Locate the burner visually by looking through smoker burner the cut-out in the valve panel. Push and turn (on some models) the control knob to the LITE position and immediately turn the smoker rotary ignitor knob (for 36″...
- Page 23 Care and Cleaning Stainless Steel Outdoor Cooking Center Grill Do not clean any of the grill components in a Grill components should be cleaned by hand components self-cleaning oven or in a dishwasher. using warm sudsy water and a Scotch Brite ®...
- Page 24 Gourmet The Gourmet Radiant™ Trays are made from 304 stainless steel and can be removed from Radiant ™ the grill when cool. Trays Clean by hand using warm sudsy water and a (on some models) Scotch Brite ® pad. A brass bristle grill brush may also be used.
- Page 25 Care and Cleaning Stainless Steel Outdoor Cooking Center Replacing Before replacing an igniter, perform this If there is a spark, examine the wire of the simple test. electrode for cracks and cuts. Also examine a rotary the electrode for grease and debris or see if igniter 1.
- Page 26 Burner To remove the range-top burners (on some models), remove the top grates. Lift out removal aeration pan from around the burners. Lift and (on some models) remove the front and rear range-top burners. (continued) The smoker burner (on some models) can be removed and cleaned by unplugging the igniter wire and lifting out the burner.
- Page 27 To clean the stainless steel surface, use toll-free number, 800.626.2002 or visit ge.com. warm sudsy water or a stainless steel cleaner or (on some models) polish. Always wipe the surface in the direction In Canada, call 1.800.661.1616 or visit...
- Page 28 The Problem Solver Stainless Steel Outdoor Cooking Center Questions? PROBLEM POSSIBLE CAUSE Use this GRILL WON’T LIGHT • Check to see if other burners on the unit operate. WHEN THE ROTARY problem • Remove the grill rack and the stainless steel radiant tray, and watch IGNITER IS TURNED the igniter tip.
- Page 29 (800.833.4322) to request information or service. In the USA: 800.626.2000 You can have the secure feeling that GE Consumer Service will still be there after your Service Contracts warranty expires. Purchase a GE contract while your warranty is still in effect and you’ll receive a substantial discount.
- Page 30 Place 1st Class Letter Stamp Here General Electric Company Warranty Registration Department P.O. Box 32150 Louisville, KY 40232-2150...
- Page 31 Louisville, KY 40225 FAILURE TO COMPLETE AND RETURN THIS CARD DOES NOT DIMINISH YOUR WARRANTY RIGHTS. ge.com For more information about GEA’s privacy and data usage policy, go to ge.com and click on “Privacy Policy” or call 800.626.2224 ✄ TAPE CLOSED...
- Page 32 Warranty for customers in Canada Stainless Steel Outdoor Cooking Center YOUR MONOGRAM OUTDOOR COOKING CENTER WARRANTY Staple sales slip or cancelled check here. Proof of original purchase date is needed to obtain service under warranty. Please have serial number and model number available when calling for service. WHAT IS LIMITED ONE-YEAR WARRANTY COVERED...
- Page 33 To know what your legal rights are in your state, consult your local or state consumer affairs office or your state’s Attorney General. Warrantor: General Electric Company, Louisville, KY 40225 GE Consumer & Industrial 49-80376 Appliances General Electric Company 10965 Rev.
