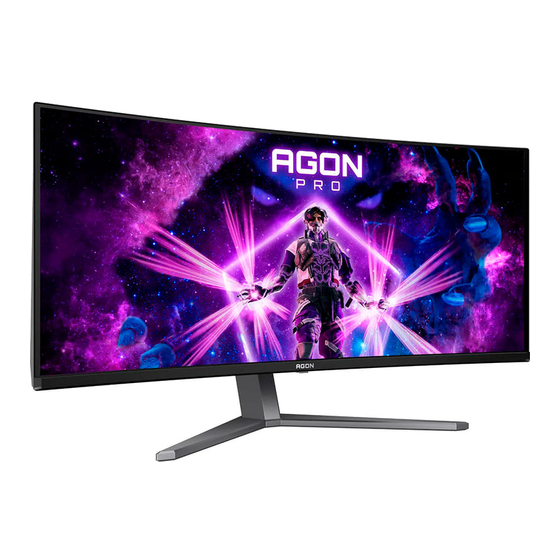

- Page 1 OLED Monitor As an OLED product, this display needs regular screen maintenance to reduce the risk of image User Manual retention (burn-in). AG346UCD www.aoc.com ® 2024 AOC.All Rights Reserved © Version: A00...
- Page 2 Safety ..................................................1 Notational Conventions........................................1 Power ................................................ 2 Installation ............................................3 Cleaning ..............................................4 Other ................................................. 5 Setup ..................................................6 Contents in Box ..........................................6 Setup Stand & Base ........................................7 Adjusting the monitor ......................................... 8 Connecting the Monitor ......................................9 Wall Mounting ..........................................10 Adaptive-Sync function ......................................11 HDR ................................................12 Adjusting................................................13...
- Page 3 Safety Notational Conventions The following subsections describe notational conventions used in this document. Notes, Cautions, and Warnings Throughout this guide, blocks of text may be accompanied by an icon and printed in bold type or in italic type. These blocks are notes, cautions, and warnings, and they are used as follows: NOTE: A NOTE indicates important information that helps you make better use of your computer system.
- Page 4 Power The monitor should be operated only from the type of power source indicated on the label. If you are not sure of the type of power supplied to your home, consult your dealer or local power company. The monitor is equipped with a three-pronged grounded plug, a plug with a third (grounding) pin. This plug will fit only into a grounded power outlet as a safety feature.
- Page 5 Installation Do not place the monitor on an unstable cart, stand, tripod, bracket, or table. If the monitor falls, it can injure a person and cause serious damage to this product. Use only a cart, stand, tripod, bracket, or table recommended by the manufacturer or sold with this product.
- Page 6 Cleaning Clean the cabinet regularly with a water-dampened, soft cloth. When cleaning use a soft cotton or microfiber cloth. The cloth should be damp and almost dry, do not allow liquid into the case. Please disconnect the power cord before cleaning the product.
- Page 7 Other If the product is emitting a strange smell, sound or smoke, disconnect the power plug IMMEDIATELY and contact a Service Center. Make sure that the ventilating openings are not blocked by a table or curtain. Do not engage the OLED monitor in severe vibration or high impact conditions during operation. Do not knock or drop the monitor during operation or transportation.
- Page 8 Warranty card Stand Base Screwdriver Bracket Screws Stand Screws Power Cable USB Cable DisplayPort Cable HDMI Cable Not all signal cables will be provided for all countries and regions. Please check with the local dealer or AOC branch office for confirmation.
- Page 9 Setup Stand & Base Please setup or remove the base following the steps as below. Setup: Remove: Specification for base screw: M6*21 mm (effective thread 5.5 mm)
- Page 10 Adjusting the monitor For optimal viewing it is recommended to look at the full face of the monitor, then adjust the monitor’s angle to your own preference. Hold the stand to steady the monitor, and grasp only the bezel to adjust the monitor’s angle. You are able to adjust the monitor as below: 16°...
- Page 11 Connecting the Monitor Cable Connections In Back of Monitor: 1. Power 2. HDMI1 3. HDMI2 4. DisplayPort 5. USB3.2 Gen1 upstream 6. USB3.2 Gen1 downstream + fast chargingx1 7. Earphone 8. USB3.2 Gen1 downstream x2 Connect to PC 1. Connect the power cord to the back of the display firmly. 2.
- Page 12 M=4.0Max M4-P0.7 L=12+X Dk=8.0 H=2.0 Noted: VESA mounting screw holes are not available for all models, please check with the dealer or official department of AOC. 0° 90° -5° Display design may differ from those illustrated. Warning： 1. To avoid potential screen damage, such as panel peeling, ensure that the monitor does not tilt downward by more than -5 degrees.
- Page 13 Adaptive-Sync function 1. Adaptive-Sync function is working with HDMI/DisplayPort 2. Compatible Graphics Card: Recommend list is as the below, also could be checked by visiting www.AMD. Graphics Cards • Radeon™ RX Vega series • Radeon™ RX 500 series • Radeon™ RX 400 series •...
- Page 14 This monitor is compatible with HDR10 formatted input signals. The display may automatically activate the HDR function if the player and content are compatible. Please contact the device manufacturer and the content provider for information on the compatibility of your device and content.
- Page 15 Adjusting Hotkeys Source/Up Dial Point/Down Game Mode/Left Light FX /Right Power/ Menu/Enter Power/Menu/Enter Press the Power button to turn on the monitor. When there is no OSD, Press to display the OSD or confirm the selection. Press about 2 seconds to turn off the monitor.
- Page 16 OSD Key Guide (Menu) Enter Move Exit Enter : Use Enter key to enter the next OSD level Move : Use Left / Up / Down key to move OSD selection Exit : Use Right key to exit OSD Enter Move Exit Enter : Use Enter key to enter the next OSD level...
- Page 17 Enter Select Select : Use Up / Down key to adjust OSD setting Enter Select Enter : Use Enter key to exit OSD to previous OSD level Select : Use Left / Right key to adjust OSD setting...
- Page 18 OSD Setting Basic and simple instruction on the control keys. PIP Setting Color Setup PIP Setting Audio Light FX OLED Care/Extra Audio Light FX OSD Setup Enter Move Exit Enter Move Exit 1). Press the MENU-button to activate the OSD window. 2).
- Page 19 Game Setting Game Setting Game Mode Shadow Control Game Color Sniper Scope Adaptive-Sync Low Input Lag Frame Counter Exit Enter Select No optimization by Game Mode. For playing FPS (First Person Shooters) games. Improves dark theme black level details. For playing RTS (Real Time Strategy). Improves the image quality.
- Page 20 Shutting down the f rame buffer can reduce input delay. Note: Low input delay is disabled by default and un- Low Input lag On / Off adjustable when the field frequency is less than 175 Hz; and it is enabled by default and unadjustable when the field frequency is equal to 175 Hz and in the Adaptive-Sync state.
- Page 21 Luminance Luminance Contrast Brightness Dark Boost ECO Mode Standard Gamma Gamma1 HDR Mode Exit Enter Select Contrast 0-100 Contrast from Digital-register. Brightness 0-100 Backlight Adjustment Enhance the screen details in the dark or bright area to Level 1 Dark Boost adjust the brightness in the bright area and ensure that Level 2 it is not oversaturated.
- Page 22 Optimized for the color and contrast of the picture, which will simulate showing the HDR effect. HDR Picture HDR Mode Note: HDR Movie When HDR is not detected, the HDR Mode option is HDR Game displayed for adjustment. Note: When “HDR Mode” is set to non-off state, “Contrast”, “Eco mode ” and “Gamma” items cannot be adjusted. When the “HDR ”...
- Page 23 PIP Setting Disable or Enable PIP or Off / PIP / PBP PBP. Select main screen Main Source source. Sub Source Select sub screen source. Size Small / Middle / Large Select screen size. Right-up Right-down Position Set the screen location. Left-up Left-down Disable or Enable Audio...
- Page 24 Color Setup Color Setup LowBlue Mode Color Temp. Warm Color Gamut Panel Native Green Blue Exit Enter Select Off / Multimedia Decrease blue light wave by controlling LowBlue Mode / Internet color temperature. / Office / Reading Recall Warm Color Temperature from Warm EEPROM.
- Page 25 Audio Audio Volume Exit Enter Select Volume 0-100 Adjust volume setting...
- Page 26 Light FX Light FX Light FX Medium Light FX Mode Static Pattern Rainbow Foreground R Foreground G Foreground B Background R Background G Background B Exit Enter Select Off / Low / Medium / Light FX Select the intensity of Light FX. Strong Audio1 / Audio2 / Static Dark Point Sweep /...
- Page 27 OLED Care/Extra OLED Care/Extra OLED Care/Extra OLED Care/Extra Pixel Orbiting Weak Boundary Dimmer Off Timer Auto Warning Image Ratio Taskbar Dimmer Wide Pixel Refresh Screen Saver ThermalProtection DDC/CI Logos Protection Input Select Reset Resolution: 3440(H)x1440(V) SDR Time after Pixel Refresh Time after Pixel Refresh H.Frequency: 97 KHz Pixel Refresh Counts...
- Page 28 When a static image is detected for a certain period of time, the screen saver function will dim the screen to protect the panel from sticking. When a moving image is detected, the monitor will recover luminance to previous working status. Screen Saver Default setting is Slow and may change as Off / Slow / Fast...
- Page 29 OSD Setup OSD Setup Language English Timeout H.Position V.Position Transparence Break Reminder Exit Enter Select Language Select the OSD language Timeout 5-120 Adjust the OSD Timeout H. Position 0-100 Adjust the horizontal position of OSD V. Position 0-100 Adjust the vertical position of OSD Transparence 0-100 Adjust the transparence of OSD...
- Page 30 LED Indicator Status LED Color Full Power Mode White Active-off Mode Orange Pixel Refresh under Flashing White (1 second on/1 second off) process OLED panel Flashing Orange (1 second on/1 second malfunction off) Shutdown mode The indicator is not lit.
- Page 31 Refer to the “Screen Maintenance” section. Please refer to Regulation & Service Information which is in the CD Regulation & Service manual or www.aoc.com (to find the model you purchase in your country and to find Regulation & Service Information in Support page.
- Page 32 Specification General Specification Model Name AG346UCD Driving System OLED Panel Viewable Image Size 86.8 cm Diagonal Pixel Pitch 0.2315mm(H) x 0.2315mm(V) Display Color 1.07B Colors 30k~185kHz(HDMI) Horizontal Scan Range 30k~285kHz(DisplayPort) Horizontal scan Size(Maximum) 800.06 48~120Hz(HDMI) Vertical Scan Range 48~175Hz(DisplayPort) Vertical Scan Size(Maximum) 337.06...
- Page 33 Note: 1)The maximum number of display colors supported by this product is 1.07 billion, and the setting conditions are as follows (there may be differences due to the output limitation of some graphics cards): HDMI2.0 DisplayPort1.4 YCbCr422 YCbCr444 YCbCr422 YCbCr444 YCbCr420 YCbCr420 Color Bit...
- Page 34 Preset Display Modes HORIZONTAL VERTICAL STANDARD RESOLUTION (±1Hz) FREQUENCY(kHz) FREQUENCY(Hz) 640x480@60Hz 31.469 59.94 640x480@67Hz 66.667 640x480@72Hz 37.861 72.809 640x480@75Hz 37.5 640x480@100Hz 51.08 99.769 640x480@120Hz 61.91 119.518 DOS MODE 720x400@70Hz 31.469 70.087 DOS MODE 720x480@60Hz 29.855 59.710 720x576@50Hz 31.25 SVGA 800x600@56Hz 35.156 56.25 SVGA...
- Page 35 Pin Assignments 19-Pin Color Display Signal Cable Pin No. Signal Name Pin No. Signal Name Pin No. Signal Name TMDS Data 2+ TMDS Data 0- DDC/CEC Ground TMDS Data 2 Shield TMDS Clock + +5V Power TMDS Data 2- TMDS Clock Shield Hot Plug Detect TMDS Data 1+ TMDS Clock-...
- Page 36 Plug and Play Plug & Play DDC2B Feature This monitor is equipped with VESA DDC2B capabilities according to the VESA DDC STANDARD. It allows the monitor to inform the host system of its identity and, depending on the level of DDC used, communicate additional information about its display capabilities.
