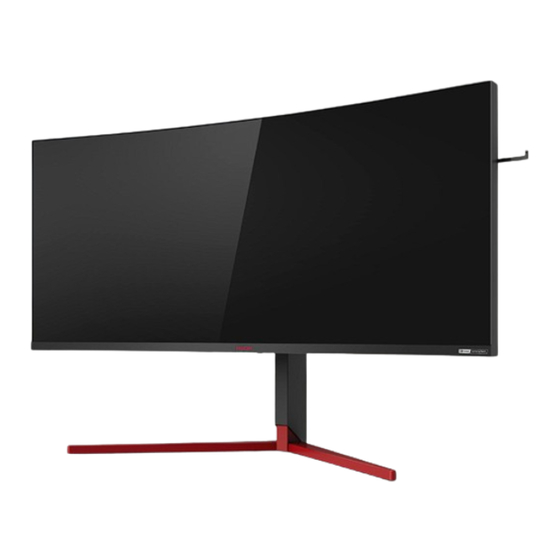

- Page 1 LCD Monitor User Manual AG353UCG LED backlight www.aoc.com ©2019 AOC. All Rights Reserved.
-
Page 2: Table Of Contents
Safety ....................................1 National Conventions ..............................1 Power ..................................2 Installation ................................. 3 Cleaning ..................................4 Other ..................................5 Setup ....................................6 Contents in Box ................................. 6 Setup Stand & Base ..............................7 Adjusting Viewing Angle ............................8 Connecting the Monitor ............................. 9 G-SYNC function .............................. -
Page 3: Safety
Safety National Conventions The following subsections describe notational conventions used in this document. Notes, Cautions, and Warnings Throughout this guide, blocks of text may be accompanied by an icon and printed in bold type or in italic type. These blocks are notes, cautions, and warnings, and they are used as follows: NOTE: A NOTE indicates important information that helps you make better use of your computer system. -
Page 4: Power
Power The monitor should be operated only from the type of power source indicated on the label. If you are not sure of the type of power supplied to your home, consult your dealer or local power company. The monitor is equipped with a three-pronged grounded plug, a plug with a third (grounding) pin. This plug will fit only into a grounded power outlet as a safety feature. -
Page 5: Installation
Installation Do not place the monitor on an unstable cart, stand, tripod, bracket, or table. If the monitor falls, it can injure a person and cause serious damage to this product. Use only a cart, stand, tripod, bracket, or table recommended by the manufacturer or sold with this product. -
Page 6: Cleaning
Cleaning Clean the cabinet regularly with cloth. You can use soft-detergent to wipe out the stain, instead of strong-detergent which will cauterize the product cabinet. When cleaning, make sure no detergent is leaked into the product. The cleaning cloth should not be too rough as it will scratch the screen surface. -
Page 7: Other
Other If the product is emitting a strange smell, sound or smoke, disconnect the power plug IMMEDIATELY and contact a Service Center. Make sure that the ventilating openings are not blocked by a table or curtain. Do not engage the LCD monitor in severe vibration or high impact conditions during operation. Do not knock or drop the monitor during operation or transportation. -
Page 8: Setup
Power Cable Adapter DP Cable HDMI Cable USB Cable Micphone Cable Not all signal cables (DP, HDMI, USB and Micphone cables) will be provided for all countries and regions. Please check with the local dealer or AOC branch office for confirmation. -
Page 9: Setup Stand & Base
Setup Stand & Base Please setup or remove the base following the steps as below. Setup: Remove:... -
Page 10: Adjusting Viewing Angle
Adjusting Viewing Angle For optimal viewing it is recommended to look at the full face of the monitor, then adjust the monitor’s angle to your own preference. Hold the stand so you will not topple the monitor when you change the monitor’s angle. You are able to adjust the monitor as below: 110mm NOTE:... -
Page 11: Connecting The Monitor
Connecting the Monitor Cable Connections In Back of Monitor and Computer: 1. USB3.0 upstream 2. USB3.0 downstream + fast charging (BC1.2) 3. USB3.0 downstream 4. Microphone in 5. Earphone (Combined with Microphone) 6. AC in 7. HDMI 8. DP 9. Mini USB 10. -
Page 12: G-Sync Function
G-SYNC function Compatible Graphics Card: GeForece GTX 650 Ti Boost or higher (for a list of compatible graphics cards, please visit www.nividia.com/G-SYNC) Driver: GeForece 331.58 or higer OS: Windows 7/8/8.1... -
Page 13: Adjusting
Adjusting Hotkeys Source/Up Dial Point/Down Game Mode/Left Light FX/Right Power/Menu/Enter Power/Menu/Enter Press the Power button to turn on the monitor. When there is no OSD, Press to display the OSD or confirm the selection. Press about 2 seconds to turn off the monitor. Dial Point/Down When there is no OSD, press Dial Point button to show / hide Dial Point. -
Page 14: Osd Key Guide (Menu)
OSD Key Guide (Menu) Enter Move Exit Enter : Use Enter key to enter the next OSD level Move : Use Left / Up / Down key to move OSD selection Exit : Use Right key to exit OSD Enter Move Exit Enter : Use Enter key to enter the next OSD level... - Page 15 Enter Select Select : Use Up / Down key to adjust OSD setting Enter Select Enter : Use Enter key to exit OSD to previous OSD level Select : Use Left / Right key to adjust OSD setting...
-
Page 16: Osd Setting
OSD Setting Basic and simple instruction on the control keys. Game Setting Luminance GSYNC Setting Color Setup GSYNC Setting Color Setup Audio Light FX Audio Light FX Extra OSD Setup Enter Move Exit Enter Move Exit 1). Press the MENU-button to activate the OSD window. 2). -
Page 17: Game Setting
Game Setting Game Setting Game Mode Shadow Control Dial Point QuickSwitch LED Overdrive Medium Frame Counter Enter Move Exit For playing FPS (first Person Shooters) games. Improves dark theme black level details. For playing RTS (Real Time Strategy). Improves the image quality. -
Page 18: Luminance
Luminance Luminance Contrast Peak white (nits) Variable Backlight Mode Gaming Relative Gamma Default SDR Colors sRGB SDR Variable Backlight ECO Mode Enter Move Exit Contrast 0-100 Contrast from Digital-register. Peak white (nits) 20-500 Peak white setting.(Only for SDR) Ref. white (nits) 20-500 Ref. -
Page 19: Gsync Setting
Gsync Setting Gsync Setting Deep sleep USB charge ULMB ULMB Pulse Width PULSE OverClock Enable MAX Refresh rate Apply&Reboot Enter Move Exit Set the “allow deep sleep mode” to ON or OFF. The deep sleep mode will turn the FPGA completely off after a certain Deep sleep Off/On amount of time when either the user presses the monitor... -
Page 20: Color Setup
Color Setup Color Setup LowBlue Mode DP YCbCr sRGB HDMI YCbCr sRGB Color Temp. Normal Green Blue Enter Move Exit Off/Multimedia/ LowBlue Mode Internet/Office/ Decrease blue light wave by controlling color temperature. Reading DP YCbCr sRGB Off/On Disable or Enable DP YCbCr sRGB. HDMI YCbCr Off/On Disable or Enable HDMI YCbCr sRGB. -
Page 21: Audio
Audio Audio Volume DTS Sound Enter Move Exit Volume 0-100 Adjust volume setting DTS Sound Off/On Disable or Enable DTS... -
Page 22: Light Fx
Light FX Light FX Light FX Light FX Mode Static Pattern Foreground R Foreground G Foreground B Background R Background G Background B Enter Move Exit Light FX Off/Low/Medium/Strong Disable or Enable Light FX Static/Simple Shift/ Gradient Shift/Simple Filling/1 Way Filling/2 Way Light FX Mode Filling/Breathing/Motion Select Light FX Mode... -
Page 23: Extra
Extra Extra Input Auto Switch Input Select Reset Resolution 3440 x 1440 V.Frequency 0 Hz Mode Normal Enter Move Exit Input Auto Off/On Disable or Enable Input Auto Switch. Switch Input Select HDMI/DP Select Input Signal Source. Reset Reset the menu to default. -
Page 24: Osd Setup
OSD Setup OSD Setup Language English Timeout H.Position V.Position Transparence Break Reminder Enter Move Exit Language Select the OSD language Timeout 10-120 Adjust the OSD Timeout H. Position 0-100 Adjust the horizontal position of OSD V. Position 0-100 Adjust the vertical position of OSD Transparence 0-100 Adjust the transparence of OSD... -
Page 25: Led Indicator
LED Indicator Status LED Color Full Power Mode Red (Light FX OFF) Active-off Mode Orange... -
Page 26: Troubleshoot
Adjust the maximum resolution and frequency that the monitor can handle properly. Make sure the AOC Monitor Drivers are installed. Adjust the Contrast and Brightness Controls. Picture Is Fuzzy & Has Press to auto adjust. -
Page 27: Specification
Specification General Specification Model name AG353UCG Driving system TFT Color LCD Viewable Image Size cm diagonal Panel Pixel pitch 0.2382mm(H) x 0.2402mm(V) Video HDMI lnterface & DP Interface Separate Sync. H/V TTL Display Color 16.7M Colors 30k~150kHz(HDMI) Horizontal scan range... -
Page 28: Preset Display Modes
Preset Display Modes HORIZONTAL VERTICAL STANDARD RESOLUTION FREQUENCY(kHz) FREQUENCY(Hz) 640 x 480 P 59.94/60Hz 31.469 59.94 EDTV 720 x 480 P 59.94/60Hz 31.469 59.94 EDTV 720 x 576 P 50Hz 31.25 VESA 800 x 600 @ 60Hz 37.879 60.317 HDTV 1280 x 720 P 59.94/60Hz 44.955 59.94... -
Page 29: Pin Assignments
Pin Assignments 19-Pin Color Display Signal Cable Pin No. Signal Name Pin No. Signal Name Pin No. Signal Name TMDS Data 2+ TMDS Data 0- DDC/CEC Ground TMDS Data 2 Shield TMDS Clock + +5V Power TMDS Data 2- TMDS Clock Shield Hot Plug Detect TMDS Data 1+ TMDS Clock-... -
Page 30: Plug And Play
Plug and Play Plug & Play DDC2B Feature This monitor is equipped with VESA DDC2B capabilities according to the VESA DDC STANDARD. It allows the monitor to inform the host system of its identity and, depending on the level of DDC used, communicate additional information about its display capabilities.
